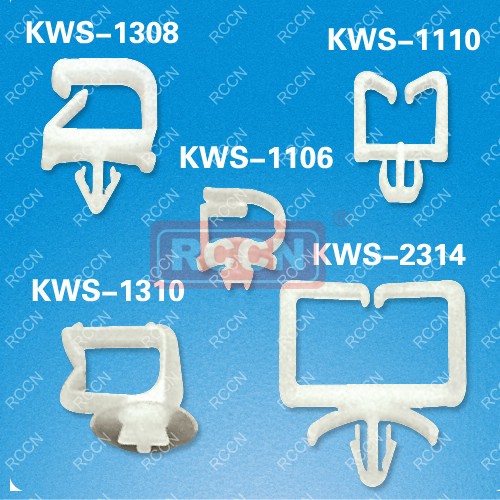

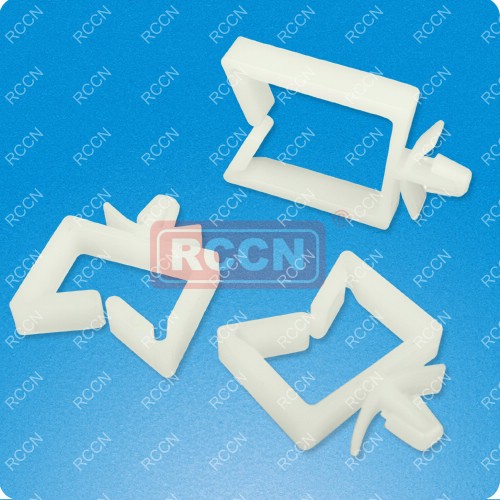

日成KWSN型马鞍型夹线套
  |
|
材 质：马鞍型夹线套.合格之NYLON66(本色)，防火等级94V-2，不易老化，绝缘度高。 |
本品为老款：新款代替型号NWS系列/B94页

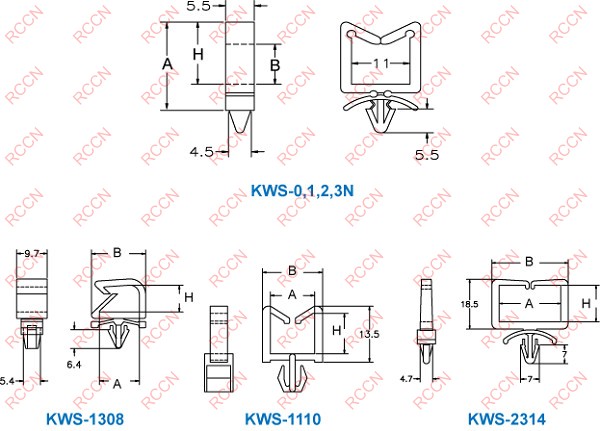

| 尺 寸 Dimension | |||||||
| H | A | B | W | 开孔 | 板厚 | ||
| KWS-0N | 9.2 | 12.7 | 4.0 | 11.0 | 4.8 | 2.0 | (1000pcs) |
| KWS-1N | 11.4 | 17.9 | 8.6 | 11.0 | 4.8 | 2.0 | |
| KWS-2N | 23.4 | 26.9 | 18.2 | 11.0 | 4.8 | 2.0 | |
| KWS-3N | 31.3 | 34.8 | 26.2 | 11.0 | 4.8 | 2.0 | |
| KWS-1114 | 17.8 | 21.2 | 13.7 | 10.7 | 4.8 | 2.4 | |
| 尺 寸 Dimension | ||||||
| H | A | B | 基板开孔 Panel hole |
适用板厚 Suitable panel thickness |
||
| KWS-0506 | 5.4 | 5.0 | 9.0 | 4.8 | 3.0 | (1000pcs) |
| KWS-1106 | 5.4 | 10.5 | 13.0 | 4.8 | 1.6 | |
| KWS-1110 | 9.8 | 10.9 | 14.4 | 2.2 | ||
| KWS-1308 | 8.5 | 12.7 | 17.2 | 5.8 | 1.6 | |
| KWS-1310 | 9.9 | 13.0 | 18.8 | |||
| KWS-2314 | 13.6 | 22.9 | 28.3 | 4.8 | 3.4 | |
