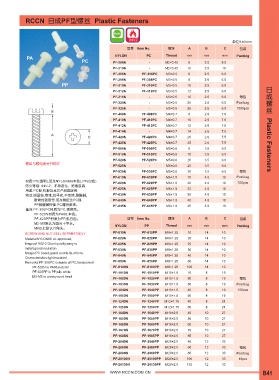

Page 157 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子
P. 157
PF-208N - M2×0.45 8 2.0 8.0
PF-210N - M2×0.45 10 2.0 10
PF-306N PF-306PC M3×0.5 6 2.5 6.0
PF-308N PF-308PC M3×0.5 8 2.5 6.0
PF-310N PF-310PC M3×0.5 10 2.5 6.0
PF-312N PF-312PC M3×0.5 12 2.5 6.0
PF-316N - M3×0.5 16 2.5 6.0
PF-320N - M3×0.5 20 2.5 6.0
PF-325N - M3×0.5 25 2.5 6.0
PF-408N PF-408PC M4×0.7 8 2.6 7.5
PF-410N PF-410PC M4×0.7 10 2.6 7.5
PF-412N PF-412PC M4×0.7 12 2.6 7.5
PF-414N - M4×0.7 14 2.6 7.5
PF-420N PF-420PC M4×0.7 20 2.6 7.5
PF-425N PF-425PC M4×0.7 25 2.6 7.5 Plastic Fasteners
PF-506N PF-506PC M5×0.8 6 3.5 9.0
PF-510N PF-510PC M5×0.8 10 3.5 9.0
PF-520N PF-520PC M5×0.8 20 3.5 9.0
PF-525N - M5×0.8 25 3.5 9.0
PF-530N PF-530PC M5×0.8 30 3.5 9.0
PF-610N PF-610PP M6×1.0 10 4.0 10
PF-620N PF-620PP M6×1.0 20 4.0 10
PF-625N PF-625PP M6×1.0 25 4.0 10
PF-630N PF-630PP M6×1.0 30 4.0 10
PF-640N PF-640PP M6×1.0 40 4.0 10
PF-645N PF-645PP M6×1.0 45 4.0 10
PF-810N PF-810PP M8×1.25 10 14 10
MaterialğNYLON66 UL approved, PF-820N PF-820PP M8×1.25 20 14 10
fireproof 94V-2 Good quality,easy to PF-825N PF-825PP M8×1.25 25 14 10
install,good insulation PF-830N PF-830PP M8×1.25 30 14 10
Usage:PC board,panel and to fix others. PF-840N PF-840PP M8×1.25 40 14 10
Characteristics:lightđinsulated
Remarks:PF-306PC is made of PC,transparent PF-850N PF-850PP M8×1.25 50 14 10
PF-520N is PA66,natural PF-8100N PF-8100PP M8×1.25 100 14 10
PF-620PP is PP,wilk white PF-1010N PF-1010PP M10×1.5 10 8 19
M2-M5 is cross,round head PF-1020N PF-1020PP M10×1.5 20 8 19
PF-1030N PF-1030PP M10×1.5 30 8 19
PF-1040N PF-1040PP M10×1.5 40 8 19
PF-1050N PF-1050PP M10×1.5 50 8 19
PF-1240N PF-1240PP M12×1.75 40 8 21
PF-1250N PF-1250PP M12×1.75 50 8 21
PF-1640N PF-1640PP M16×2.0 40 10 27
PF-1650N PF-1650PP M16×2.0 50 10 27
PF-1660N PF-1660PP M16×2.0 60 10 27
PF-1670N PF-1670PP M16×2.0 70 10 27
PF-1685N PF-1685PP M16×2.0 85 10 27
PF-2040N PF-2040PP M20×2.0 40 12 33
PF-2060N PF-2060PP M20×2.0 60 12 33
PF-2080N PF-2080PP M20×2.0 80 12 33
M20×2.0
PF-20100N PF-20100PP 100 12 33
M20×2.0
PF-20130N PF-20130PP 130 12 33
PF-210N - M2×0.45 10 2.0 10
PF-306N PF-306PC M3×0.5 6 2.5 6.0
PF-308N PF-308PC M3×0.5 8 2.5 6.0
PF-310N PF-310PC M3×0.5 10 2.5 6.0
PF-312N PF-312PC M3×0.5 12 2.5 6.0
PF-316N - M3×0.5 16 2.5 6.0
PF-320N - M3×0.5 20 2.5 6.0
PF-325N - M3×0.5 25 2.5 6.0
PF-408N PF-408PC M4×0.7 8 2.6 7.5
PF-410N PF-410PC M4×0.7 10 2.6 7.5
PF-412N PF-412PC M4×0.7 12 2.6 7.5
PF-414N - M4×0.7 14 2.6 7.5
PF-420N PF-420PC M4×0.7 20 2.6 7.5
PF-425N PF-425PC M4×0.7 25 2.6 7.5 Plastic Fasteners
PF-506N PF-506PC M5×0.8 6 3.5 9.0
PF-510N PF-510PC M5×0.8 10 3.5 9.0
PF-520N PF-520PC M5×0.8 20 3.5 9.0
PF-525N - M5×0.8 25 3.5 9.0
PF-530N PF-530PC M5×0.8 30 3.5 9.0
PF-610N PF-610PP M6×1.0 10 4.0 10
PF-620N PF-620PP M6×1.0 20 4.0 10
PF-625N PF-625PP M6×1.0 25 4.0 10
PF-630N PF-630PP M6×1.0 30 4.0 10
PF-640N PF-640PP M6×1.0 40 4.0 10
PF-645N PF-645PP M6×1.0 45 4.0 10
PF-810N PF-810PP M8×1.25 10 14 10
MaterialğNYLON66 UL approved, PF-820N PF-820PP M8×1.25 20 14 10
fireproof 94V-2 Good quality,easy to PF-825N PF-825PP M8×1.25 25 14 10
install,good insulation PF-830N PF-830PP M8×1.25 30 14 10
Usage:PC board,panel and to fix others. PF-840N PF-840PP M8×1.25 40 14 10
Characteristics:lightđinsulated
Remarks:PF-306PC is made of PC,transparent PF-850N PF-850PP M8×1.25 50 14 10
PF-520N is PA66,natural PF-8100N PF-8100PP M8×1.25 100 14 10
PF-620PP is PP,wilk white PF-1010N PF-1010PP M10×1.5 10 8 19
M2-M5 is cross,round head PF-1020N PF-1020PP M10×1.5 20 8 19
PF-1030N PF-1030PP M10×1.5 30 8 19
PF-1040N PF-1040PP M10×1.5 40 8 19
PF-1050N PF-1050PP M10×1.5 50 8 19
PF-1240N PF-1240PP M12×1.75 40 8 21
PF-1250N PF-1250PP M12×1.75 50 8 21
PF-1640N PF-1640PP M16×2.0 40 10 27
PF-1650N PF-1650PP M16×2.0 50 10 27
PF-1660N PF-1660PP M16×2.0 60 10 27
PF-1670N PF-1670PP M16×2.0 70 10 27
PF-1685N PF-1685PP M16×2.0 85 10 27
PF-2040N PF-2040PP M20×2.0 40 12 33
PF-2060N PF-2060PP M20×2.0 60 12 33
PF-2080N PF-2080PP M20×2.0 80 12 33
M20×2.0
PF-20100N PF-20100PP 100 12 33
M20×2.0
PF-20130N PF-20130PP 130 12 33
