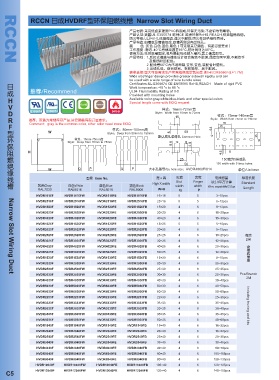

Page 248 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子
P. 248
Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizesb
Made of rigid PVC
Certificates:UL:E306674 CE:EN50085 RoHS,REACHb
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
HVDR1616F HVDR1616FW HVDR1616FE HVDR1616FB 16×16 5 5 3~10pcs
HVDR2516F HVDR2516FW HVDR2516FE HVDR2516FB 25×16 5 5 8~12pcs
HVDR1520F HVDR1520FW HVDR1520FE HVDR1520FB 15×20 4 6 8~12pcs
HVDR2020F HVDR2020FW HVDR2020FE HVDR2020FB 20×20 4 6 10~20pcs
HVDR4020F HVDR4020FW HVDR4020FE HVDR4020FB 40×20 4 6 15~30pcs
HVDR1525F HVDR1525FW HVDR1525FE HVDR1525FB 15×25 5 5 5~15pcs
HVDR2025F HVDR2025FW HVDR2025FE HVDR2025FB 20×25 4 6 5~15pcs
HVDR2525F HVDR2525FW HVDR2525FE HVDR2525FB 25×25 4 6 10~25pcs
HVDR3025F HVDR3025FW HVDR3025FE HVDR3025FB 30×25 4 6 12~28pcs
HVDR4025F HVDR4025FW HVDR4025FE HVDR4025FB 40×25 4 6 20~35pcs
HVDR5025F HVDR5025FW HVDR5025FE HVDR5025FB 50×25 4 6 12~28pcs
HVDR1530F HVDR1530FW HVDR1530FE HVDR1530FB 15×30 4 6 8~15pcs
HVDR2030F HVDR2030FW HVDR2030FE HVDR2030FB 20×30 4 6 25~35pcs
HVDR2530F HVDR2530FW HVDR2530FE HVDR2530FB 25×30 4 6 25~35pcs
HVDR3030F HVDR3030FW HVDR3030FE HVDR3030FB 30×30 4 6 25~35pcs
Narrow Slot Wiring Duct
HVDR4030F HVDR4030FW HVDR4030FE HVDR4030FB 40×30 4 6 30~40pcs
HVDR5030F HVDR5030FW HVDR5030FE HVDR5030FB 50×30 4 6 40~50pcs
HVDR6030F HVDR6030FW HVDR6030FE HVDR6030FB 60×30 4 6 50~60pcs
HVDR2233F HVDR2233FW HVDR2233FE HVDR2233FB 22×33 4 6 25~35pcs
HVDR3333F HVDR3333FW HVDR3333FE HVDR3333FB 33×33 4 6 35~45pcs
HVDR2035F HVDR2035FW HVDR2035FE HVDR2035FB 20×35 4 6 30~40pcs
HVDR3535F HVDR3535FW HVDR3535FE HVDR3535FB 35×35 4 6 35~45pcs
HVDR5035F HVDR5035FW HVDR5035FE HVDR5035FB 50×35 4 6 40~60pcs
HVDR1540F HVDR1540FW HVDR1540FE HVDR1540FB 15×40 4 6 16~22pcs
HVDR2040F HVDR2040FW HVDR2040FE HVDR2040FB 20×40 4 6 16~22pcs
HVDR2540F HVDR2540FW HVDR2540FE HVDR2540FB 25×40 4 6 20~35pcs
HVDR3540F HVDR3540FW HVDR3540FE HVDR3540FB 35×40 4 6 30~45pcs
HVDR4040F HVDR4040FW HVDR4040FE HVDR4040FB 40×40 4 6 60~70pcs
HVDR6040F HVDR6040FW HVDR6040FE HVDR6040FB 60×40 4 6 100~115pcs
HVDR8040F HVDR8040FW HVDR8040FE HVDR8040FB 80×40 4 6 120~135pcs
HVDR10040F HVDR10040FW HVDR10040FE HVDR10040FB 100×40 4 6 120~135pcs
HVDR12040F HVDR12040FW HVDR12040FE HVDR12040FB 120×40 4 6 140~155pcs
be used with a wide range of wire bundle sizesb
Made of rigid PVC
Certificates:UL:E306674 CE:EN50085 RoHS,REACHb
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
HVDR1616F HVDR1616FW HVDR1616FE HVDR1616FB 16×16 5 5 3~10pcs
HVDR2516F HVDR2516FW HVDR2516FE HVDR2516FB 25×16 5 5 8~12pcs
HVDR1520F HVDR1520FW HVDR1520FE HVDR1520FB 15×20 4 6 8~12pcs
HVDR2020F HVDR2020FW HVDR2020FE HVDR2020FB 20×20 4 6 10~20pcs
HVDR4020F HVDR4020FW HVDR4020FE HVDR4020FB 40×20 4 6 15~30pcs
HVDR1525F HVDR1525FW HVDR1525FE HVDR1525FB 15×25 5 5 5~15pcs
HVDR2025F HVDR2025FW HVDR2025FE HVDR2025FB 20×25 4 6 5~15pcs
HVDR2525F HVDR2525FW HVDR2525FE HVDR2525FB 25×25 4 6 10~25pcs
HVDR3025F HVDR3025FW HVDR3025FE HVDR3025FB 30×25 4 6 12~28pcs
HVDR4025F HVDR4025FW HVDR4025FE HVDR4025FB 40×25 4 6 20~35pcs
HVDR5025F HVDR5025FW HVDR5025FE HVDR5025FB 50×25 4 6 12~28pcs
HVDR1530F HVDR1530FW HVDR1530FE HVDR1530FB 15×30 4 6 8~15pcs
HVDR2030F HVDR2030FW HVDR2030FE HVDR2030FB 20×30 4 6 25~35pcs
HVDR2530F HVDR2530FW HVDR2530FE HVDR2530FB 25×30 4 6 25~35pcs
HVDR3030F HVDR3030FW HVDR3030FE HVDR3030FB 30×30 4 6 25~35pcs
Narrow Slot Wiring Duct
HVDR4030F HVDR4030FW HVDR4030FE HVDR4030FB 40×30 4 6 30~40pcs
HVDR5030F HVDR5030FW HVDR5030FE HVDR5030FB 50×30 4 6 40~50pcs
HVDR6030F HVDR6030FW HVDR6030FE HVDR6030FB 60×30 4 6 50~60pcs
HVDR2233F HVDR2233FW HVDR2233FE HVDR2233FB 22×33 4 6 25~35pcs
HVDR3333F HVDR3333FW HVDR3333FE HVDR3333FB 33×33 4 6 35~45pcs
HVDR2035F HVDR2035FW HVDR2035FE HVDR2035FB 20×35 4 6 30~40pcs
HVDR3535F HVDR3535FW HVDR3535FE HVDR3535FB 35×35 4 6 35~45pcs
HVDR5035F HVDR5035FW HVDR5035FE HVDR5035FB 50×35 4 6 40~60pcs
HVDR1540F HVDR1540FW HVDR1540FE HVDR1540FB 15×40 4 6 16~22pcs
HVDR2040F HVDR2040FW HVDR2040FE HVDR2040FB 20×40 4 6 16~22pcs
HVDR2540F HVDR2540FW HVDR2540FE HVDR2540FB 25×40 4 6 20~35pcs
HVDR3540F HVDR3540FW HVDR3540FE HVDR3540FB 35×40 4 6 30~45pcs
HVDR4040F HVDR4040FW HVDR4040FE HVDR4040FB 40×40 4 6 60~70pcs
HVDR6040F HVDR6040FW HVDR6040FE HVDR6040FB 60×40 4 6 100~115pcs
HVDR8040F HVDR8040FW HVDR8040FE HVDR8040FB 80×40 4 6 120~135pcs
HVDR10040F HVDR10040FW HVDR10040FE HVDR10040FB 100×40 4 6 120~135pcs
HVDR12040F HVDR12040FW HVDR12040FE HVDR12040FB 120×40 4 6 140~155pcs
