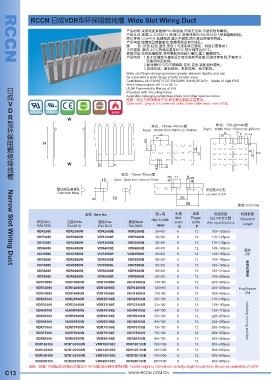

P. 256
Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizesb
Made of rigid PVC
Certificates:UL:E306674 CE:EN50085 RoHS,REACHb
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
VDR2580 VDR2580W VDR2580E VDR2580B 25×80 8 12 100~120pcs
VDR3080 VDR3080W VDR3080E VDR3080B 30×80 8 12 110~125pcs
VDR3580 VDR3580W VDR3580E VDR3580B 35×80 8 12 110~130pcs
VDR4080 VDR4080W VDR4080E VDR4080B 40×80 8 12 140~160pcs
VDR4580 VDR4580W VDR4580E VDR4580B 45×80 8 12 140~160pcs
VDR5080 VDR5080W VDR5080E VDR5080B 50×80 8 12 160~180pcs
VDR5580 VDR5580W VDR5580E VDR5580B 55×80 8 12 160~180pcs
Narrow Slot Wiring Duct
VDR6080 VDR6080W VDR6080E VDR6080B 60×80 8 12 180~210pcs
VDR8080 VDR8080W VDR8080E VDR8080B 80×80 8 12 240~290pcs
VDR10080 VDR10080W VDR10080E VDR10080B 100×80 8 12 260~350pcs
VDR12080 VDR12080W VDR12080E VDR12080B 120×80 8 12 280~380pcs
VDR14080 VDR14080W VDR14080E VDR14080B 140×80 8 12 350~450pcs
VDR25100 VDR25100W VDR25100E VDR25100B 25×100 8 12 110~160pcs
VDR33100 VDR33100W VDR33100E VDR33100B 33×100 8 12 130~165pcs
VDR40100 VDR40100W VDR40100E VDR40100B 40×100 8 12 130~175pcs
VDR50100 VDR50100W VDR50100E VDR50100B 50×100 8 12 220~250pcs
60×100
VDR60100 VDR60100W VDR60100E VDR60100B 8 12 240~290pcs
VDR70100 VDR70100W VDR70100E VDR70100B 70×100 8 12 250~340pcs
VDR75100 VDR75100W VDR75100E VDR75100B 75×100 8 12 260~350pcs
VDR80100 VDR80100W VDR80100E VDR80100B 80×100 8 12 260~350pcs
VDR100100 VDR100100W VDR100100E VDR100100B 100×100 8 12 300~400pcs
VDR120100 VDR120100W VDR120100E VDR120100B 120×100 8 12 350~450pcs
VDR150100 VDR150100W VDR150100E VDR150100B 150×100 8 12 400~650pcs
VDR200100 VDR200100W VDR200100E VDR200100B 200×100 8 12 600~800pcs
be used with a wide range of wire bundle sizesb
Made of rigid PVC
Certificates:UL:E306674 CE:EN50085 RoHS,REACHb
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
VDR2580 VDR2580W VDR2580E VDR2580B 25×80 8 12 100~120pcs
VDR3080 VDR3080W VDR3080E VDR3080B 30×80 8 12 110~125pcs
VDR3580 VDR3580W VDR3580E VDR3580B 35×80 8 12 110~130pcs
VDR4080 VDR4080W VDR4080E VDR4080B 40×80 8 12 140~160pcs
VDR4580 VDR4580W VDR4580E VDR4580B 45×80 8 12 140~160pcs
VDR5080 VDR5080W VDR5080E VDR5080B 50×80 8 12 160~180pcs
VDR5580 VDR5580W VDR5580E VDR5580B 55×80 8 12 160~180pcs
Narrow Slot Wiring Duct
VDR6080 VDR6080W VDR6080E VDR6080B 60×80 8 12 180~210pcs
VDR8080 VDR8080W VDR8080E VDR8080B 80×80 8 12 240~290pcs
VDR10080 VDR10080W VDR10080E VDR10080B 100×80 8 12 260~350pcs
VDR12080 VDR12080W VDR12080E VDR12080B 120×80 8 12 280~380pcs
VDR14080 VDR14080W VDR14080E VDR14080B 140×80 8 12 350~450pcs
VDR25100 VDR25100W VDR25100E VDR25100B 25×100 8 12 110~160pcs
VDR33100 VDR33100W VDR33100E VDR33100B 33×100 8 12 130~165pcs
VDR40100 VDR40100W VDR40100E VDR40100B 40×100 8 12 130~175pcs
VDR50100 VDR50100W VDR50100E VDR50100B 50×100 8 12 220~250pcs
60×100
VDR60100 VDR60100W VDR60100E VDR60100B 8 12 240~290pcs
VDR70100 VDR70100W VDR70100E VDR70100B 70×100 8 12 250~340pcs
VDR75100 VDR75100W VDR75100E VDR75100B 75×100 8 12 260~350pcs
VDR80100 VDR80100W VDR80100E VDR80100B 80×100 8 12 260~350pcs
VDR100100 VDR100100W VDR100100E VDR100100B 100×100 8 12 300~400pcs
VDR120100 VDR120100W VDR120100E VDR120100B 120×100 8 12 350~450pcs
VDR150100 VDR150100W VDR150100E VDR150100B 150×100 8 12 400~650pcs
VDR200100 VDR200100W VDR200100E VDR200100B 200×100 8 12 600~800pcs
