Note:installed by crimp tool YYT-1 Material:copper insulated part:nylon
2
Insulated squareğ 0.5j1.5mm (AWG22j 16) Max. cunrrentğ lmaxĢ 10A

PN1.25-250A 0.8 × 6.35 6.6 8.0 5.0 1.7 22
PN1.25-187A 0.8 × 4.8 4.8 6.5 5.0 1.7 22
PN1.25-110A 0.8 × 2.8 2.8 6.5 5.0 1.7 19.5
2
Insulated squareğ 1.5j2.5mm (AWG16j 14) Max. cunrrentğ lmaxĢ 15A

PN2-250A 0.8 × 6.35 6.6 8.0 5.0 2.3 22
PN2-187A 0.8 × 4.8 4.8 6.5 5.0 2.3 20

2
Insulated squareğ 4j6mm (AWG12j 10) Max. cunrrentğ lmaxĢ 24A

PN5.5-250A 0.8 × 6.35 6.6 8.0 6.0 3.4 25.5

Note:installed by crimp tool YYT-1 / 5.5-250yellow Material:copper Insulated part:nylon
2
Insulated squareğ 0.5j1.5mm (AWG22j 16) Max. cunrrentğ lmaxĢ 10A

PN 1.25-250B 0.8 × 6.35 6.35 9.0 5.0 1.7 24

2
Insulated squareğ 1.5j2.5mm (AWG16j 14) Max. cunrrentğ lmaxĢ 15A

PN 2-250B 0.8 × 6.35 6.35 9.0 5.0 2.3 24

2
Insulated squareğ 4j6mm (AWG12j 10) Max. cunrrentğ lmaxĢ 24A

PN 5.5-250B 0.8 × 6.35 6.35 9.0 6.0 3.4 26.0

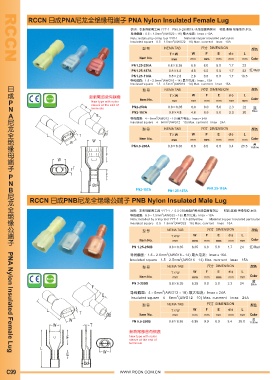

PNA Nylon Insulated Female Lug
