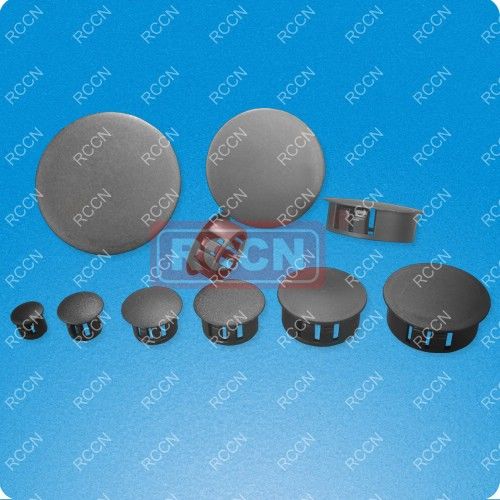

RCCN HP Hole Plug

 RCCN HP Hole Plug

RCCN HP Hole Plug



RCCN HP Hole Plug RCCN HP Hole Plug RCCN HP Hole Plug

Material：UL approved NYLON 66(black)，
fireproof 94V-2,oil and rot resistant
Page number:B66

Item No.

Mounting
HoleA

Covering
C

Height
L

Packing
Black White
HP-8 HP-8W 7.9 10.3 8.1
100pcs
HP-10 HP-10W 9.5 13.0 10.5
HP-13 HP-13W 12.7 16.5 10.9
HP-16 HP-16W 15.9 19.8 10.0
HP-19 HP-19W 19.0 22.9 10.0
HP-22 HP-22W 22.2 25.8 11.3
HP-25 HP-25W 25.3 29.0 11.6
HP-28 HP-28W 27.6 30.8 11.3
HP-30 HP-30W 30.0 34.2 12.0
HP-35 HP-35W 34.2 37.5 11.3
HP-38 HP-38W 38.1 42.1 11.2
HP-45 HP-45W 44.5 49.7 11.8
HP-50 HP-50W 50.1 54.6 11.8
