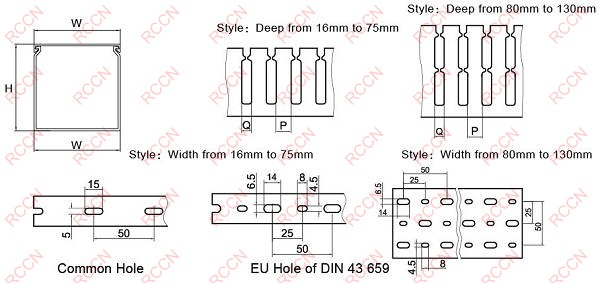

RCCN VDRF HVDRF PVC Trunking

Wide slot/finger design provides greater sidewall rigidity and canbe used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS

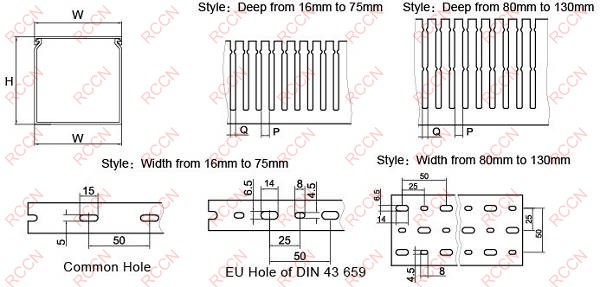

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
VDR1616F	VDR1616W	VDR1616E	VDR1616B	16*16	8	10	3~10pcs	300M
VDR1520F	VDR1520W	VDR1520E	VDR1520B	15*20	8.5	12	8~12pcs	260M
VDR2020F	VDR2020W	VDR2020E	VDR2020B	20*20	8.5	12	10~20pcs	240M
VDR4020F	VDR4020W	VDR4020E	VDR4020B	40*20	8	12	12~28pcs	140M
VDR1525F	VDR1525W	VDR1525E	VDR1525B	15*25	8	10	5~15pcs	260M
VDR2025F	VDR2025W	VDR2025E	VDR2025B	20*25	8	10	5~15pcs	200M
VDR2525F	VDR2525W	VDR2525E	VDR2525B	25*25	8	10	10~25pcs	200M
VDR3025F	VDR3025W	VDR3025E	VDR3025B	30*25	8	10	12~28pcs	160M
VDR5025F	VDR5025W	VDR5025E	VDR5025B	50*25	8	10	20~30pcs	100M
VDR1530F	VDR1530W	VDR1530E	VDR1530B	15*30	8	10	8~15pcs	180M
VDR2030F	VDR2030W	VDR2030E	VDR2030B	20*30	8	12	25~35pcs	160M
VDR2530F	VDR2530W	VDR2530E	VDR2530B	25*30	8	12	25~35pcs	160M
VDR3030F	VDR3030W	VDR3030E	VDR3030B	30*30	8	12	25~35pcs	140M
VDR4030F	VDR4030W	VDR4030E	VDR4030B	40*30	8	12	30~40pcs	100M
VDR3333F	VDR3333W	VDR3333E	VDR3333B	33*33	8	12	35~45pcs	160M
VDR2035F	VDR2035W	VDR2035E	VDR2035B	20*35	8	12	30~40pcs	100M
VDR3535F	VDR3535W	VDR3535E	VDR3535B	35*35	8	12	35~45pcs	112M
VDR5035F	VDR5035W	VDR5035E	VDR5035B	50*35	8	12	40~60pcs	88M
VDR2040F	VDR2040W	VDR2040E	VDR2040B	20*40	8	12	16~22pcs	110M
VDR2540F	VDR2540W	VDR2540E	VDR2540B	25*40	8	12	20~25pcs	112M
VDR4040F	VDR4040W	VDR4040E	VDR4040B	40*40	8	12	60~70pcs	100M
VDR6040F	VDR6040W	VDR6040E	VDR6040B	60*40	8	12	100~115pcs	68M
VDR8040F	VDR8040W	VDR8040E	VDR8040B	80*40	8	12	120~135pcs	48M
VDR10040F	VDR10040W	VDR10040E	VDR10040B	100*40	8	12	120~135pcs	32M
VDR2545F	VDR2545W	VDR2545E	VDR2545B	25*45	8	12	20~25pcs	104M
VDR3345F	VDR3345W	VDR3345E	VDR3345B	33*45	8	12	40~55pcs	108M
VDR4545F	VDR4545W	VDR4545E	VDR4545B	45*45	8	12	60~70pcs	72M
VDR6545F	VDR6545W	VDR6545E	VDR6545B	65*45	8	12	110~120pcs	56M
VDR2050F	VDR2050W	VDR2050E	VDR2050B	20*50	8	12	18~28pcs	120M
VDR2550F	VDR2550W	VDR2550E	VDR2550B	25*50	8	12	20~30pcs	100M
VDR3050F	VDR3050W	VDR3050E	VDR3050B	30*50	8	12	25~40pcs	84M
VDR3550F	VDR3550W	VDR3550E	VDR3550B	35*50	8	12	40~60pcs	80M
VDR4050F	VDR4050W	VDR4050E	VDR4050B	40*50	8	12	60~70pcs	68M
VDR4550F	VDR4550W	VDR4550E	VDR4550B	45*50	8	12	70~80pcs	60M
VDR5050F	VDR5050W	VDR5050E	VDR5050B	50*50	8	12	80~90pcs	60M
VDR5550F	VDR5550W	VDR5550E	VDR5550B	55*50	8	12	85~95pcs	48M
VDR6050F	VDR6050W	VDR6050E	VDR6050B	60*50	8	12	100~120pcs	48M
VDR8050F	VDR8050W	VDR8050E	VDR8050B	80*50	8	12	160~180pcs	40M
VDR10050F	VDR10050W	VDR10050E	VDR10050B	100*50	8	12	200~250pcs	26M
VDR12555F	VDR12555W	VDR12555E	VDR12555B	125*55	8	12	220~270pcs	20M
VDR2060F	VDR2060W	VDR2060E	VDR2060B	20*60	8	12	35~45pcs	100M
VDR2560F	VDR2560W	VDR2560E	VDR2560B	25*60	8	12	40~50pcs	100M
VDR3060F	VDR3060W	VDR3060E	VDR3060B	30*60	8	12	60~80pcs	80M
VDR3560F	VDR3560W	VDR3560E	VDR3560B	35*60	8	12	90~105pcs	78M
VDR4060F	VDR4060W	VDR4060E	VDR4060B	40*60	8	12	100~115pcs	60M
VDR4560F	VDR4560W	VDR4560E	VDR4560B	45*60	8	12	110~125pcs	30M
VDR5060F	VDR5060W	VDR5060E	VDR5060B	50*60	8	12	120~135pcs	60M
VDR6060F	VDR6060W	VDR6060E	VDR6060B	60*60	8	12	120~135pcs	48M
VDR8060F	VDR8060W	VDR8060E	VDR8060B	80*60	8	12	180~210pcs	36M
VDR10060F	VDR10060W	VDR10060E	VDR10060B	100*60	8	12	240~290pcs	28M
VDR11060F	VDR11060W	VDR11060E	VDR11060B	110*60	8	12	250~300pcs	48M
VDR12060F	VDR12060W	VDR12060E	VDR12060B	120*60	8	12	260~320pcs	48M
VDR15060F	VDR15060W	VDR15060E	VDR15060B	150*60	8	12	300~360pcs	16M
VDR2565F	VDR2565W	VDR2565E	VDR2565B	25*65	8	12	40~50pcs	88M
VDR3365F	VDR3365W	VDR3365E	VDR3365B	33*65	8	12	40~70pcs	80M
VDR4565F	VDR4565W	VDR4565E	VDR4565B	45*65	8	12	110~120pcs	52M
VDR6565F	VDR6565W	VDR6565E	VDR6565B	65*65	8	12	180~200pcs	44M
VDR7265F	VDR7265W	VDR7265E	VDR7265B	72*65	8	12	180~230pcs	42M
VDR5075F	VDR5075W	VDR5075E	VDR5075B	50*75	8	12	180~210pcs	32M
VDR7575F	VDR7575W	VDR7575E	VDR7575B	75*75	8	12	200~240pcs	24M
VDR2580F	VDR2580W	VDR2580E	VDR2580B	25*80	8	12	100~120pcs	72M
VDR3080F	VDR3080W	VDR3080E	VDR3080B	30*80	8	12	110~125pcs	56M
VDR3580F	VDR3580W	VDR3580E	VDR3580B	35*80	8	12	110~130pcs	56M
VDR4080F	VDR4080W	VDR4080E	VDR4080B	40*80	8	12	140~160pcs	48M
VDR4580F	VDR4580W	VDR4580E	VDR4580B	45*80	8	12	140~160pcs	40M
VDR5080F	VDR5080W	VDR5080E	VDR5080B	5080	8	12	160~180pcs	40M
VDR5580F	VDR5580W	VDR5580E	VDR5580B	55*80	8	12	160~180pcs	32M
VDR6080F	VDR6080W	VDR6080E	VDR6080B	60*80	8	12	180~210pcs	32M
VDR8080F	VDR8080W	VDR8080E	VDR8080B	80*80	8	12	240~290pcs	24M
VDR10080F	VDR10080W	VDR10080E	VDR10080B	100*80	8	12	260~350pcs	24M
VDR12080F	VDR12080W	VDR12080E	VDR12080B	120*80	8	12	280~380pcs	16M
VDR14080F	VDR14080W	VDR14080E	VDR14080B	140*80	8	12	350~450pcs	16M
VDR25100F	VDR25100W	VDR25100E	VDR25100B	25*100	8	12	110~160pcs	60M
VDR33100F	VDR33100W	VDR33100E	VDR33100B	33*100	8	12	130~165pcs	44M
VDR40100F	VDR40100W	VDR40100E	VDR40100B	40*100	8	12	130~175pcs	40M
VDR50100F	VDR50100W	VDR50100E	VDR50100B	50*100	8	12	220~250pcs	40M
VDR60100F	VDR60100W	VDR60100E	VDR60100B	60*100	8	12	240~290pcs	32M
VDR70100F	VDR70100W	VDR70100E	VDR70100B	70*100	8	12	250~310pcs	24M
VDR75100F	VDR75100W	VDR75100E	VDR75100B	75*100	8	12	260~350pcs	24M
VDR80100F	VDR80100W	VDR80100E	VDR80100B	80*100	8	12	260~350pcs	24M
VDR100100F	VDR100100W	VDR100100E	VDR100100B	100*100	8	12	300~400pcs	24M
VDR120100F	VDR120100W	VDR120100E	VDR120100B	120*100	8	12	350~450pcs	16M
VDR150100F	VDR150100W	VDR150100E	VDR150100B	150*100	8	12	400~650pcs	16M
VDR200100F	VDR200100W	VDR200100E	VDR200100B	200*100	8	12	600~800pcs	16M
VDR100130F	VDR100130W	VDR100130E	VDR100130B	100*130	8	12	350~450pcs	24M
VDR200150F	VDR200150W	VDR200150E	VDR200150B	200*150	8	12	900~1200pcs	10M

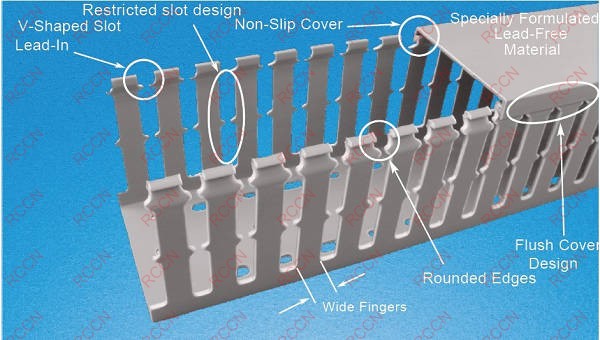

Features	Advantages	Benefits
Wide finger and slot design Can be used with a wide range of wire and	Finger 12mm Slot 8 mm,Rigid fingers	bundle sizes
Rohs approved Enviroment-friendly Material	Approved by EU Rohs, Compliant with US UL 94V-0,good inflaming	Eliminates health concerns associated with PVC that contains lead
Smooth rounded edges	Smooth edges in duct slots and at top of duct fingers	Protects hands and wiring/cabling from abrasion
Non-slip cover (co-extruded non-slip liner inside duct covers)	Will not slide easily when installed on duct base	Cover stays in place during shipment, vibration and when in a vertical orientation, eliminating rework
Flush cover designGreater capacity than traditional duct designs	Cover sits flush with sidewall	Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance
Slot smooth	Smooth adge after punching	No need to get offer abrasion, save time
V-shaped slot lead-in V-shape funnels wires into slot for	easier insertion	Speeds wire installation
Restricted slot designOnce inserted wires are retained in the slot	with or without the cover being installed	Eliminates hassle and saves time during installation and maintenance
Four different colors	Suitable to different environments using	Can meet different customers’request in different project
Approved by many certificates	America UL,Canada CULUS, EuropeCE , ROHS,REACH Flamility and low smoking certificate	Can provide related certificates of the projects or parts need

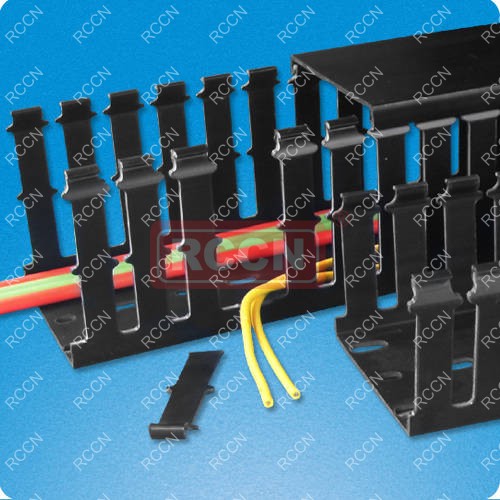

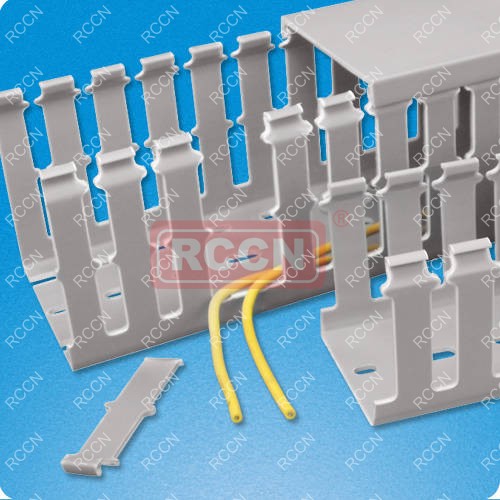

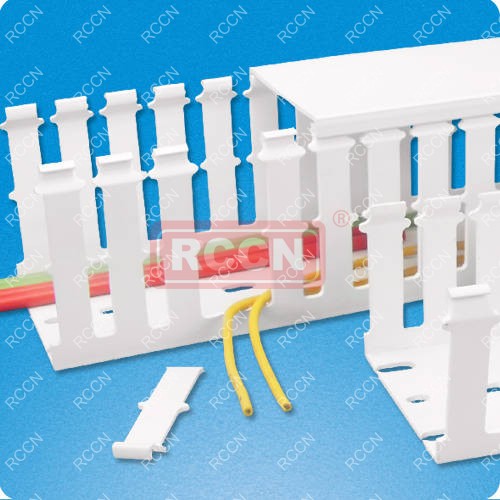

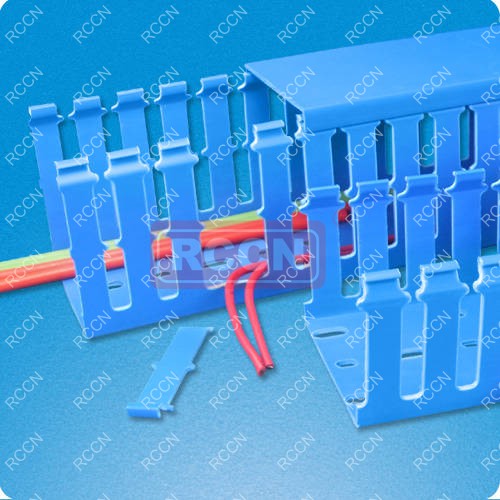

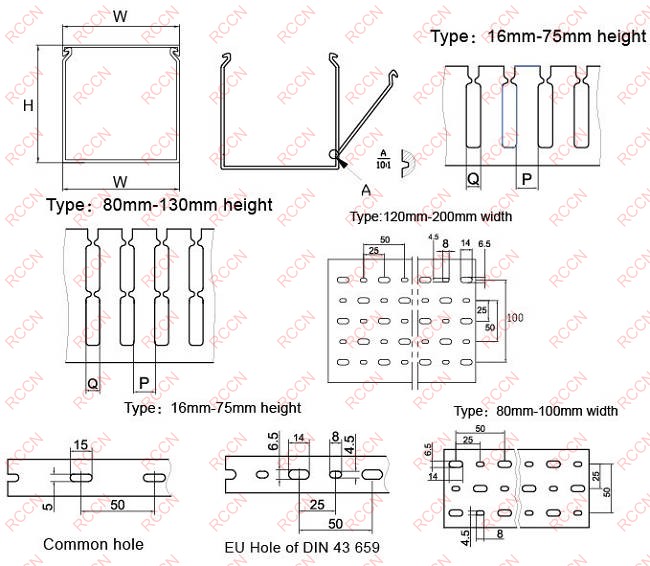

RCCN VDRFZ Wide Slot Wiring Duct

Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of trunking, it makes the fingers easy to separate from the trunking no need to us cutter.
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS

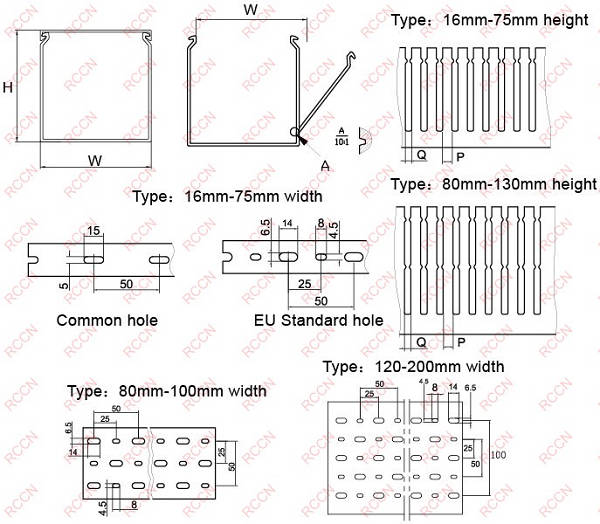

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
VDR2525FZ	VDR2525FZW	VDR2525FZE	VDR2525FZB	25*25	8	10	10~25pcs	200M
VDR2530FZ	VDR2530FZW	VDR2530FZE	VDR2530FZB	25*30	8	12	25~35pcs	160M
VDR3030FZ	VDR3030FZW	VDR3030FZE	VDR3030FZB	30*30	8	12	25~35pcs	140M
VDR2540FZ	VDR2540FZW	VDR2540FZE	VDR2540FZB	25*40	8	12	20~25pcs	112M
VDR4040FZ	VDR4040FZW	VDR4040FZE	VDR4040FZB	40*40	8	12	60~70pcs	100M
VDR6040FZ	VDR6040FZW	VDR6040FZE	VDR6040FZB	60*40	8	12	100~115pcs	68M
VDR8040FZ	VDR8040FZW	VDR8040FZE	VDR8040FZB	80*40	8	12	120~135pcs	48M
VDR10040FZ	VDR10040FZW	VDR10040FZE	VDR10040FZB	100*40	8	12	120~135pcs	32M
VDR2550FZ	VDR2550FZW	VDR2550FZE	VDR2550FZB	25*50	8	12	20~30pcs	100M
VDR3050FZ	VDR3050FZW	VDR3050FZE	VDR3050FZB	30*50	8	12	25~40pcs	84M
VDR3550FZ	VDR3550FZW	VDR3550FZE	VDR3550FZB	35*50	8	12	40~60pcs	80M
VDR4050FZ	VDR4050FZW	VDR4050FZE	VDR4050FZB	40*50	8	12	60~70pcs	68M
VDR4550FZ	VDR4550FZW	VDR4550FZE	VDR4550FZB	45*50	8	12	70~80pcs	60M
VDR5050FZ	VDR5050FZW	VDR5050FZE	VDR5050FZB	50*50	8	12	80~90pcs	60M
VDR6050FZ	VDR6050FZW	VDR6050FZE	VDR6050FZB	60*50	8	12	100~120pcs	48M
VDR8050FZ	VDR8050FZW	VDR8050FZE	VDR8050FZB	80*50	8	12	160~180pcs	40M
VDR10050FZ	VDR10050FZW	VDR10050FZE	VDR10050FZB	100*50	8	12	200~250pcs	26M
VDR2560FZ	VDR2560FZW	VDR2560FZE	VDR2560FZB	25*60	8	12	40~50pcs	100M
VDR3060FZ	VDR3060FZW	VDR3060FZE	VDR3060FZB	30*60	8	12	60~80pcs	80M
VDR4060FZ	VDR4060FZW	VDR4060FZE	VDR4060FZB	40*60	8	12	100~115pcs	60M
VDR4560FZ	VDR4560FZW	VDR4560FZE	VDR4560FZB	45*60	8	12	110~125pcs	30M
VDR5060FZ	VDR5060FZW	VDR5060FZE	VDR5060FZB	50*60	8	12	120~135pcs	60M
VDR6060FZ	VDR6060FZW	VDR6060FZE	VDR6060FZB	60*60	8	12	120~135pcs	48M
VDR8060FZ	VDR8060FZW	VDR8060FZE	VDR8060FZB	80*60	8	12	180~210pcs	36M
VDR10060FZ	VDR10060FZW	VDR10060FZE	VDR10060FZB	100*60	8	12	240~290pcs	28M
VDR11060FZ	VDR11060FZW	VDR11060FZE	VDR11060FZB	110*60	8	12	250~300pcs	48M
VDR12060FZ	VDR12060FZW	VDR12060FZE	VDR12060FZB	120*60	8	12	260~320pcs	48M
VDR2580FZ	VDR2580FZW	VDR2580FZE	VDR2580FZB	25*80	8	12	100~120pcs	72M
VDR3080FZ	VDR3080FZW	VDR3080FZE	VDR3080FZB	30*80	8	12	110~125pcs	56M
VDR3580FZ	VDR3580FZW	VDR3580FZE	VDR3580FZB	35*80	8	12	110~130pcs	56M
VDR4080FZ	VDR4080FZW	VDR4080FZE	VDR4080FZB	40*80	8	12	140~160pcs	48M
VDR4580FZ	VDR4580FZW	VDR4580FZE	VDR4580FZB	45*80	8	12	140~160pcs	40M
VDR5080FZ	VDR5080FZW	VDR5080FZE	VDR5080FZB	5080	8	12	160~180pcs	40M
VDR5580FZ	VDR5580FZW	VDR5580FZE	VDR5580FZB	55*80	8	12	160~180pcs	32M
VDR6080FZ	VDR6080FZW	VDR6080FZE	VDR6080FZB	60*80	8	12	180~210pcs	32M
VDR8080FZ	VDR8080FZW	VDR8080FZE	VDR8080FZB	80*80	8	12	240~290pcs	24M
VDR10080FZ	VDR10080FZW	VDR10080FZE	VDR10080FZB	100*80	8	12	260~350pcs	24M
VDR12080FZ	VDR12080FZW	VDR12080FZE	VDR12080FZB	120*80	8	12	280~380pcs	16M
VDR14080FZ	VDR14080FZW	VDR14080FZE	VDR14080FZB	140*80	8	12	350~450pcs	16M
VDR25100FZ	VDR25100FZW	VDR25100FZE	VDR25100FZB	25*100	8	12	110~160pcs	60M
VDR33100FZ	VDR33100FZW	VDR33100FZE	VDR33100FZB	33*100	8	12	130~165pcs	44M
VDR40100FZ	VDR40100FZW	VDR40100FZE	VDR40100FZB	40*100	8	12	130~175pcs	40M
VDR50100FZ	VDR50100FZW	VDR50100FZE	VDR50100FZB	50*100	8	12	220~250pcs	40M
VDR60100FZ	VDR60100FZW	VDR60100FZE	VDR60100FZB	60*100	8	12	240~290pcs	32M
VDR75100FZ	VDR75100FZW	VDR75100FZE	VDR75100FZB	75*100	8	12	260~350pcs	24M
VDR80100FZ	VDR80100FZW	VDR80100FZE	VDR80100FZB	80*100	8	12	260~350pcs	24M
VDR100100FZ	VDR100100FZW	VDR100100FZE	VDR100100FZB	100*100	8	12	300~400pcs	24M
VDR120100FZ	VDR120100FZW	VDR120100FZE	VDR120100FZB	120*100	8	12	350~450pcs	16M
VDR150100FZ	VDR150100FZW	VDR150100FZE	VDR150100FZB	150*100	8	12	400~650pcs	16M
*VDR200100FZ	VDR200100FZW	VDR200100FZE	VDR200100FZB	200*100	8	12	600~900pcs	12M
*VDR200150FZ	VDR200150FZW	VDR200150FZE	VDR200150FZB	200*150	8	12	900~1200pcs	10M

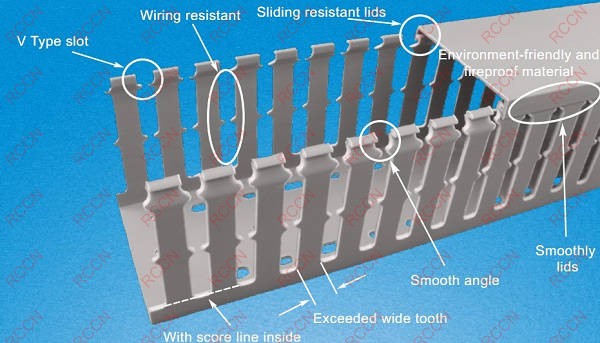

Features	Advantages	Benefits
Wide slot & wide finger	Finger width 12mm，Slot width 8mm,High rigid fingers	Suitable to big wire or bundles wire
Enviroment-friendly and flammability resisit material	Products approved by EU ROHS， compliant with UL,good flammability resisit	Eliminates health concerns associated with PVC that contains lead Eliminates the need to deburr saving installation time
Smooth rounded edges	Exclusive RCCN ® process rounds the edges in duct slots and at top of duct fingers	Protects hands and wiring/cabling from abrasion
Non-slip cover (co-extruded non-slip liner inside duct covers)	Non-slip cover (co-extruded non-slip liner inside duct covers)	Cover stays in place during shipment, vibration and when in a vertical orientation, eliminating rework
Double scoreline	Upper scoreline at base of finger allows fingers to be broken out without tools Lower scoreline at base of duct allows sidewall sections to be removed	Allows quick modification for larger cabling bundles saving installation time leading to a lower installed cost Easier to create tee and corner junctions with full wire carrying capacity
Flush cover design	Greater capacity than traditional duct designs Cover sits flush with sidewall	Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance
Smooth edge after punching	Provides a smooth burr-free edge when sidewalls or fingers are broken out	Eliminates the need to deburr saving installation time
V-shaped slot lead-in	V-shape funnels wires into slot for easier insertion	Speeds wire installation
Double restricted slot design	Once inserted wires are retained in the slot with or without the cover being installed	Eliminates hassle and saves time during installation and maintenance
Four different colors are available	Suitable to different projects request	Can meet customers request in different project conditions in time
Approved by many nternational tests	America UL,Canada CULUS, EuropeCE , ROHS,REACH Flamility and low smoking certificate	Can provide related certificates of the projects or parts need

Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware
Certificates:UL:E306674 CE:EN50085 RoHS,REACH
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK
HVDR1616F	HVDR1616W	HVDR1616E	HVDR1616B	16*16	5	5	3~10pcs	300M
HVDR1520F	HVDR1520W	HVDR1520E	HVDR1520B	15*20	4	6	8~12pcs	260M
HVDR2020F	HVDR2020W	HVDR2020E	HVDR2020B	20*20	4	6	10~20pcs	240M
HVDR4020F	HVDR4020W	HVDR4020E	HVDR4020B	40*20	4	6	12~28pcs	140M
HVDR1525F	HVDR1525W	HVDR1525E	HVDR1525B	15*25	5	6	5~15pcs	260M
HVDR2025F	HVDR2025W	HVDR2025E	HVDR2025B	20*20	4	6	5~15pcs	200M
HVDR2525F	HVDR2525W	HVDR2525E	HVDR2525B	25*25	4	6	10~25pcs	200M
HVDR3025F	HVDR3025W	HVDR3025E	HVDR3025B	30*25	4	6	12~28pcs	160M
HVDR5025F	HVDR5025W	HVDR5025E	HVDR5025B	50*25	4	6	20~30pcs	100M
HVDR2530F	HVDR2530W	HVDR2530E	HVDR2530B	25*30	4	6	25~35pcs	160M
HVDR3030F	HVDR3030W	HVDR3030E	HVDR3030B	30*30	4	6	25~35pcs	140M
HVDR4030F	HVDR4030W	HVDR4030E	HVDR4030B	40*30	4	6	30~40pcs	100M
HVDR2233F	HVDR2233W	HVDR2233E	HVDR2233B	22*33	5	6	30~45pcs	160M
*HVDR3333F	HVDR3333W	HVDR3333E	HVDR3333B	33*33	4	6	35~45pcs	160M
HVDR2035F	HVDR2035W	HVDR2035E	HVDR2035B	20*35	4	6	30~40pcs	100M
HVDR3535F	HVDR3535W	HVDR3535E	HVDR3535B	35*35	4	6	35~45pcs	112M
HVDR5035F	HVDR5035W	HVDR5035E	HVDR5035B	50*35	4	6	40~60pcs	88M
*HVDR2040F	HVDR2040W	HVDR2040E	HVDR2040B	20*40	4	6	16~22pcs	110M
HVDR2540F	HVDR2540W	HVDR2540E	HVDR2540B	25*40	4	6	20~25pcs	112M
HVDR4040F	HVDR4040W	HVDR4040E	HVDR4040B	40*40	4	6	60~70pcs	100M
HVDR6040F	HVDR6040W	HVDR6040E	HVDR6040B	60*40	4	6	100~115pcs	68M
HVDR8040F	HVDR8040W	HVDR8040E	HVDR8040B	80*40	4	6	120~135pcs	48M
HVDR10040F	HVDR10040W	HVDR10040E	HVDR10040B	100*40	4	6	120~135pcs	32M
HVDR2545F	HVDR2545W	HVDR2545E	HVDR2545B	25*45	4	6	20~25pcs	104M
HVDR3345F	HVDR3345W	HVDR3345E	HVDR3345B	33*45	4	6	40~55pcs	108M
HVDR4545F	HVDR4545W	HVDR4545E	HVDR4545B	45*45	4	6	60~70pcs	72M
HVDR6545F	HVDR6545W	HVDR6545E	HVDR6545B	65*45	4	6	110~120pcs	56M
*HVDR2050F	HVDR2050W	HVDR2050E	HVDR2050B	20*50	4	6	18~28pcs	100M
HVDR2550F	HVDR2550W	HVDR2550E	HVDR2550B	25*50	4	6	20~30pcs	100M
HVDR3050F	HVDR3050W	HVDR3050E	HVDR3050B	30*50	4	6	25~40pcs	84M
HVDR3550F	HVDR3550W	HVDR3550E	HVDR3550B	35*50	4	6	40~60pcs	80M
HVDR4050F	HVDR4050W	HVDR4050E	HVDR4050B	40*50	4	6	60~70pcs	68M
HVDR4550F	HVDR4550W	HVDR4550E	HVDR4550B	45*50	4	6	70~80pcs	60M
HVDR5050F	HVDR5050W	HVDR5050E	HVDR5050B	50*50	4	6	80~90pcs	50M
HVDR5550F	HVDR5550W	HVDR5550E	HVDR5550B	55*50	4	6	80~90pcs	48M
HVDR6050F	HVDR6050W	HVDR6050E	HVDR6050B	60*50	4	6	100~120pcs	48M
HVDR8050F	HVDR8050W	HVDR8050E	HVDR8050B	80*50	4	6	160~180pcs	40M
HVDR10050F	HVDR10050W	HVDR1005E	HVDR10050B	100*50	4	6	200~250pcs	26M
HVDR12555F	HVDR12555W	HVDR12555E	HVDR12555B	125*55	4	6	220~270pcs	20M
HVDR2060F	HVDR2060W	HVDR2060E	HVDR2060B	20*60	4	6	35~45pcs	100M
HVDR2560F	HVDR2560W	HVDR2560E	HVDR2560B	25*60	4	6	40~50pcs	100M
HVDR3060F	HVDR3060W	HVDR3060E	HVDR3060B	30*60	4	6	60~80pcs	80M
*HVDR3560F	HVDR3560W	HVDR3560E	HVDR3560B	35*60	4	6	90~105pcs	78M
HVDR4060F	HVDR4060W	HVDR4060E	HVDR4060B	40*60	4	6	100~115pcs	60M
HVDR4560F	HVDR4560W	HVDR4560E	HVDR4560B	45*60	4	6	110~125pcs	30M
HVDR5060F	HVDR5060W	HVDR5060E	HVDR5060B	50*60	4	6	120~135pcs	60M
HVDR6060F	HVDR6060W	HVDR6060E	HVDR6060B	60*60	4	6	120~135pcs	48M
HVDR8060F	HVDR8060W	HVDR8060E	HVDR8060B	80*60	4	6	180~210pcs	36M
HVDR10060F	HVDR10060W	HVDR10060E	HVDR10060B	100*60	4	6	240~290pcs	28M
HVDR11060F	HVDR11060W	HVDR11060E	HVDR11060B	110*60	4	6	250~300pcs	48M
*HVDR12060F	HVDR12060W	HVDR12060E	HVDR12060B	120*60	4	6	260~320pcs	48M
HVDR15060F	HVDR15060W	HVDR15060E	HVDR15060B	150*60	4	6	300~360pcs	16M
HVDR2565F	HVDR2565W	HVDR2565E	HVDR2565B	25*65	4	6	40~50pcs	88M
HVDR3365F	HVDR3365W	HVDR3365E	HVDR3365B	33*65	4	6	40~70pcs	80M
HVDR4565F	HVDR4565W	HVDR4565E	HVDR4565B	45*65	4	6	110~120pcs	52M
HVDR6565F	HVDR6565W	HVDR6565E	HVDR6565B	65*65	4	6	180~200pcs	44M
HVDR7265F	HVDR7265W	HVDR7265E	HVDR7265B	72*65	4	6	180~230pcs	42M
HVDR5075F	HVDR5075W	HVDR5075E	HVDR5075B	50*75	4	6	180~210pcs	42M
HVDR7575F	HVDR7575W	HVDR7575E	HVDR7575B	75*75	4	6	200~240pcs	40M
HVDR2580F	HVDR2580W	HVDR2580E	HVDR2580B	25*80	4	6	100~120pcs	72M
HVDR3080F	HVDR3080W	HVDR3080E	HVDR3080B	30*80	4	6	110~125pcs	56M
HVDR3580F	HVDR3580W	HVDR3580E	HVDR3580B	35*80	4	6	110~130pcs	56M
HVDR4080F	HVDR4080W	HVDR4080E	HVDR4080B	40*80	4	6	140~160pcs	48M
HVDR4580F	HVDR4580W	HVDR4580E	HVDR4580B	45*80	4	6	140~160pcs	40M
HVDR5080F	HVDR5080W	HVDR5080E	HVDR5080B	50*80	4	6	160~180pcs	40M
HVDR5580F	HVDR5580W	HVDR5580E	HVDR5580B	55*80	4	6	160~180pcs	32M
HVDR6080F	HVDR6080W	HVDR6080E	HVDR6080B	60*80	4	6	180~210pcs	32M
HVDR8080F	HVDR8080W	HVDR8080E	HVDR8080B	80*80	4	6	240~290pcs	24M
HVDR10080F	HVDR10080W	HVDR10080E	HVDR10080B	100*80	4	6	260~350pcs	24M
HVDR12080F	HVDR12080W	HVDR12080E	HVDR12080B	120*80	4	6	280~380pcs	16M
HVDR14080F	HVDR14080W	HVDR14080E	HVDR14080B	140*80	4	6	350~450pcs	16M
HVDR25100F	HVDR25100W	HVDR25100E	HVDR25100B	25*100	4	6	110~160pcs	60M
HVDR33100F	HVDR33100W	HVDR33100E	HVDR33100B	33*100	4	6	130~175pcs	44M
HVDR40100F	HVDR40100W	HVDR40100E	HVDR40100B	40*100	4	6	130~175pcs	40M
HVDR50100F	HVDR50100W	HVDR50100E	HVDR50100B	50*100	4	6	220~250pcs	40M
HVDR60100F	HVDR60100W	HVDR60100E	HVDR60100B	60*100	4	6	240~290pcs	32M
HVDR70100F	HVDR70100W	HVDR70100E	HVDR70100B	70*100	4	6	250~310pcs	24M
HVDR75100F	HVDR75100W	HVDR75100E	HVDR75100B	75*100	4	6	260~350pcs	24M
HVDR80100F	HVDR80100W	HVDR80100E	HVDR80100B	80*100	4	6	260~350pcs	24M
HVDR100100F	HVDR100100W	HVDR100100E	HVDR100100B	100*100	4	6	300~400pcs	24M
HVDR120100F	HVDR120100W	HVDR120100E	HVDR120100B	120*100	4	6	350~450pcs	16M
HVDR150100F	HVDR150100W	HVDR150100E	HVDR150100B	150*100	4	6	400~650pcs	16M
*HVDR200100F	HVDR200100W	HVDR200100E	HVDR200100B	200*100	4	6	600~800pcs	16M
HVDR100130F	HVDR100130W	HVDR100130E	HVDR100130B	100*130	4	6	350~450pcs	16M
*HVDR200150F	HVDR200150W	HVDR200150E	HVDR200150B	200*150	4	6	900~1200pcs	16M

Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of trunking, it makes
the fingers easy to separate from the trunking no need to us cutter.
Comment：gray is common,other color come with MOQ.
Standard Length 2M/PCS

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	pack
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	pack
HVDR2525FZ	HVDR2525FZW	HVDR2525FZE	HVDR2525FZB	25*25	4	6	10~25pcs	200M
HVDR2530FZ	HVDR2530FZW	HVDR2530FZE	HVDR2530FZB	25*30	4	6	25~35pcs	160M
HVDR3030FZ	HVDR3030FZW	HVDR3030FZE	HVDR3030FZB	30*30	4	6	25~35pcs	140M
HVDR2540FZ	HVDR2540FZW	HVDR2540FZE	HVDR2540FZB	25*40	4	6	20~25pcs	112M
HVDR4040FZ	HVDR4040FZW	HVDR4040FZE	HVDR4040FZB	40*40	4	6	60~70pcs	100M
HVDR6040FZ	HVDR6040FZW	HVDR6040FZE	HVDR6040FZB	60*40	4	6	100~115pcs	68M
HVDR8040FZ	HVDR8040FZW	HVDR8040FZE	HVDR8040FZB	80*40	4	6	120~135pcs	48M
HVDR10040FZ	HVDR10040FZW	HVDR10040FZE	HVDR10040FZB	100*40	4	6	120~135pcs	32M
HVDR2550FZ	HVDR2550FZW	HVDR2550FZE	HVDR2550FZB	25*50	4	6	20~30pcs	100M
HVDR3050FZ	HVDR3050FZW	HVDR3050FZE	HVDR3050FZB	30*50	4	6	25~40pcs	84M
HVDR3550FZ	HVDR3550FZW	HVDR3550FZE	HVDR3550FZB	35*50	4	6	40~60pcs	80M
HVDR4050FZ	HVDR4050FZW	HVDR4050FZE	HVDR4050FZB	40*50	4	6	60~70pcs	68M
HVDR4550FZ	HVDR4550FZW	HVDR4550FZE	HVDR4550FZB	45*50	4	6	70~80pcs	60M
HVDR5050FZ	HVDR5050FZW	HVDR5050FZE	HVDR5050FZB	50*50	4	6	80~90pcs	60M
HVDR6050FZ	HVDR6050FZW	HVDR6050FZE	HVDR6050FZB	60*50	4	6	100~120pcs	48M
HVDR8050FZ	HVDR8050FZW	HVDR8050FZE	HVDR8050FZB	80*50	4	6	160~180pcs	40M
HVDR10050FZ	HVDR10050FZW	HVDR10050FZE	HVDR10050FZB	100*50	4	6	200~250pcs	26M
HVDR2060FZ	HVDR2060FZW	HVDR2060FZE	HVDR2060FZB	20*60	4	6	35~45pcs	100M
HVDR2560FZ	HVDR2560FZW	HVDR2560FZE	HVDR2560FZB	25*60	4	6	40~50pcs	100M
HVDR3060FZ	HVDR3060FZW	HVDR3060FZE	HVDR3060FZB	30*60	4	6	60~80pcs	80M
HVDR4060FZ	HVDR4060FZW	HVDR4060FZE	HVDR4060FZB	40*60	4	6	100~115pcs	60M
HVDR4560FZ	HVDR4560FZW	HVDR4560FZE	HVDR4560FZB	45*60	4	6	110~125pcs	30M
HVDR5060FZ	HVDR5060FZW	HVDR5060FZE	HVDR5060FZB	50*60	4	6	120~135pcs	60M
HVDR6060FZ	HVDR6060FZW	HVDR6060FZE	HVDR6060FZB	60*60	4	6	120~135pcs	48M
HVDR8060FZ	HVDR8060FZW	HVDR8060FZE	HVDR8060FZB	80*60	4	6	180~210pcs	36M
HVDR10060FZ	HVDR10060FZW	HVDR10060FZE	HVDR10060FZB	100*60	4	6	240~290pcs	28M
HVDR11060FZ	HVDR11060FZW	HVDR11060FZE	HVDR11060FZB	110*60	4	6	250~300pcs	48M
HVDR12060FZ	HVDR12060FZW	HVDR12060FZE	HVDR12060FZB	120*60	4	6	260~320pcs	48M
HVDR2580FZ	HVDR2580FZW	HVDR2580FZE	HVDR2580FZB	25*80	4	6	100~120pcs	72M
HVDR3080FZ	HVDR3080FZW	HVDR3080FZE	HVDR3080FZB	30*80	4	6	110~125pcs	56M
HVDR3580FZ	HVDR3580FZW	HVDR3580FZE	HVDR3580FZB	35*80	4	6	110~130pcs	56M
HVDR4080FZ	HVDR4080FZW	HVDR4080FZE	HVDR4080FZB	40*80	4	6	140~160pcs	48M
HVDR4580FZ	HVDR4580FZW	HVDR4580FZE	HVDR4580FZB	45*80	4	6	140~160pcs	40M
HVDR5080FZ	HVDR5080FZW	HVDR5080FZE	HVDR5080FZB	50*80	4	6	160~180pcs	40M
HVDR5580FZ	HVDR5580FZW	HVDR5580FZE	HVDR5580FZB	55*80	4	6	160~180pcs	32M
HVDR6080FZ	HVDR6080FZW	HVDR6080FZE	HVDR6080FZB	60*80	4	6	180~210pcs	32M
HVDR8080FZ	HVDR8080FZW	HVDR8080FZE	HVDR8080FZB	80*80	4	6	240~290pcs	24M
HVDR10080FZ	HVDR10080FZW	HVDR10080FZE	HVDR10080FZB	100*80	4	6	260~350pcs	24M
HVDR12080FZ	HHVDR12080FZW	HVDR12080FZE	HVDR12080FZB	120*80	4	6	280~380pcs	16M
HVDR14080FZ	HVDR14080FZW	HVDR14080FZE	HVDR14080FZB	140*80	4	6	350~450pcs	16M
HVDR25100FZ	HVDR25100FZW	HVDR25100FZE	HVDR25100FZB	25*100	4	6	110~160pcs	60M
HVDR33100FZ	HVDR33100FZW	HVDR33100FZE	HVDR33100FZB	33*100	4	6	130~165pcs	44M
HVDR40100FZ	HVDR40100FZW	HVDR40100FZE	HVDR40100FZB	40*100	4	6	130~175pcs	40M
HVDR50100FZ	HVDR50100FZW	HVDR50100FZE	HVDR50100FZB	50*100	4	6	220~250pcs	40M
HVDR60100FZ	HVDR60100FZW	HVDR60100FZE	HVDR60100FZB	60*100	4	6	240~290pcs	32M
HVDR75100FZ	HVDR75100FZW	HVDR75100FZE	HVDR75100FZB	75*100	4	6	260~350pcs	24M
HVDR80100FZ	HVDR80100FZW	HVDR80100FZE	HVDR80100FZB	80*100	4	6	260~350pcs	24M
HVDR100100FZ	HVDR100100FZW	HVDR100100FZE	HVDR100100FZB	100*100	4	6	300~400pcs	24M
HVDR120100FZ	HVDR120100FZW	HVDR120100FZE	HVDR120100FZB	120*100	4	6	350~450pcs	16M
HVDR150100FZ	HVDR150100FZW	HVDR150100FZE	HVDR150100FZB	150*100	4	6	400~650pcs	16M
HVDR100130FZ	HVDR100130FZW	HVDR100130FZE	HVDR100130FZB	100*130	4	6	350~450pcs	24M
HVDR200100FZ	HVDR200100FZW	HVDR200100FZE	HVDR200100FZB	200*100	4	6	600~900pcs	12M
HVDR200150FZ	HVDR200150FZW	HVDR200150FZE	HVDR200150FZB	200*150	4	6	900~1200pcs	10M

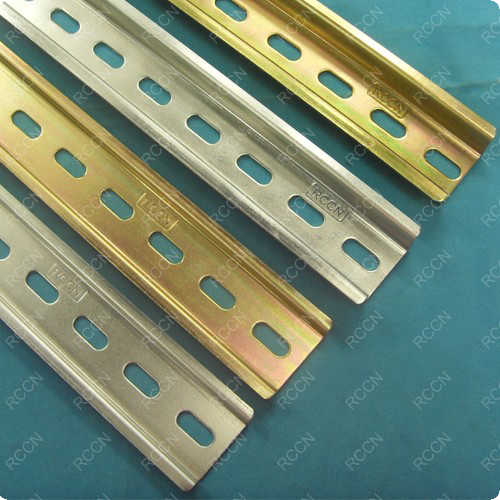

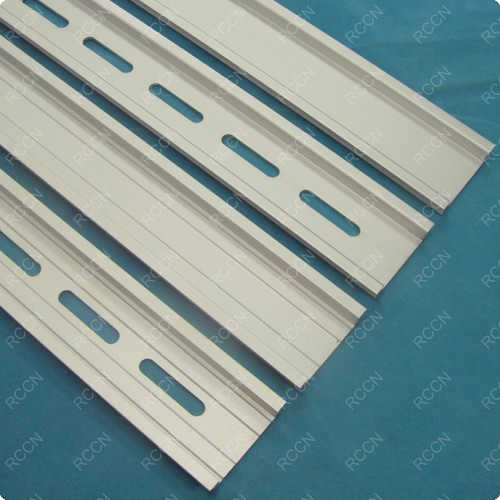

RCCN Din Rails

Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No. Outer width/Outer height/ Thickness/Length	Material	Length per pcs	Packing/ carton
TS-35/7.5 Series
TS-35/7.5/1.0/1M	Color zinc steel	1M	50M
TS-35/7.5/1.0/1M-ROHS	ROHS silver zinc plated steel	1M	50M
TS-35/7.5/1.0/2M	Color zinc steel	2M	100M
TS-35/7.5/1.0/2M-ROHS	ROHS silver zinc plated steel	2M	100M
TS-35/15 Series
TS-35/15/1.5/1M	Color zinc steel	1M	30M
TS-35/15/1.5/1M-ROHS	ROHS silver zinc plated steel	1M	30M
TS-35/15/1.5/2M	Color zinc steel	2M	60M
TS-35/15/1.5/2M-ROHS	ROHS silver zinc plated steel	2M	60M
LSC-35/7.5/1.1 Series
LSC-35/7.5/1.1/1M	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M	ROHS Aluminum metal	2M	100M
LSC-35/7.5/1.1/1M-No bottom	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M-No bottom	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5/1M-No bottom	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M-No bottom	ROHS Aluminum metal	2M	100M

wiring duct product

上一篇：RCCN Solid Wiring Duct
下一篇：RCCN FD Flexible Wiring Duct

RCCN wiring duct colour

wiring duct

all product

Cert

RCCN VDRF HVDRF PVC Trunking
