Canaleta Ranurada GD
|
|||||
|
• Usage : Fixed the bottom duct first and put wires in duct then close the cover cap. • Feature : Composed easily, not peel, smooth match and won't be hurt. • Construction: Composed of bottom duct and cover cap, slot holes in both side. • Material: Made of Hardness Lead-Free PVC UL-94V0 • Color: Gray • Mounting Method: Standard Mounting Holes • . Recognized continuous use temperature: +122 °F (+50 °C) |
|||||
    |

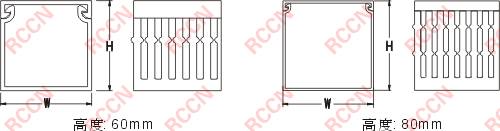

| Part No.. | W*G | A | B | C | D | E | F | H | T | PACK | 14AWG/PCS |
| GDR2560 | 25*60 | 25 | 60 | 25 | 47.5 | 8.0 | 20 | 57.5 | 1.6 | 40-45 | |
| GDR4060 | 40*60 | 40 | 60 | 40 | 47.5 | 8.0 | 20 | 57.5 | 1.8 | 100-115 | |
| GDR6060 | 60*60 | 60 | 60 | 60 | 47.5 | 8.0 | 20 | 57.5 | 2.0 | 120-135 | |
| GDR8060 | 80*60 | 80 | 60 | 80 | 47.5 | 8.0 | 20 | 57.5 | 2.0 | 180-240 | |
| GDR11060 | 110*60 | 110 | 60 | 110 | 47.5 | 8.0 | 20 | 57.5 | 2.0 | 220-280 |
