DIN MOUNTING RAILS
RCCN's DIN rails comply with DIN50045, 50022 and 50035 Standards. DIN rails have been accepted throughout the world, alloWiring the designer to mount a wide variety of control components,devices, terminal blocks, etc.
on the same rail. The use of DIN rails enhance design capabilities, save space and reduce labor.Standard rails are made of zinc plated, yellow chromated steel in several configurations. Aluminum and copper rails are also available.a DIN rails are available in 35mm (7.5 and 15mm deep), 32mm and 15mm widths and are supplied in 2m (6'6") and 1m (3'3") lengths. Upon request they can be cut to custom lengths and punched with holes or perforations. A DIN rail cutter is available for do-it-yourself cutting and punching. (Please request separate DIN Rail Cutter Data Sheet.) Rails mount directly to panels or mounton Support Brackets for improved visibility, increased wiring efficiency and easy access. (Refer to page 55 for
ordering information).
• 35mm, 32mm, 15mm
• Perforated or Unperforated
• Rail Materials Available:
Steel, Zinc Plated Yellow Chromated

Aluminuma
Coppera
• Angled or Straight Support Brackets
Available

导轨 材质 L PACK/M

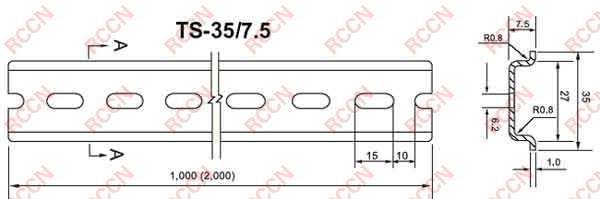

TS-35/7.5/1.0 Steel 1M 50
TS-35/7.5/0.8 Steel 50
TS-32/15/1.5 Steel 30
TS-32/18/1.5 Steel 30
LS-35/7.5/1.2 Zinc 100
LS-35/7.5/1.5 Zinc 100

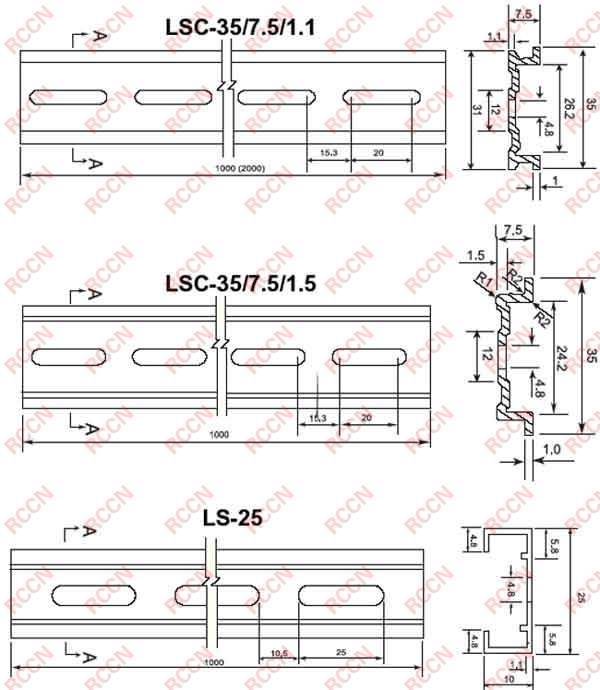

LSC-35/7.5/1.1 Steel/Zinc 100
LSC-32/15-1.5 Steel/Zinc 50
LSC-32/15/1.8 Steel/Zinc 50
LS-25/1.1

Zinc

100

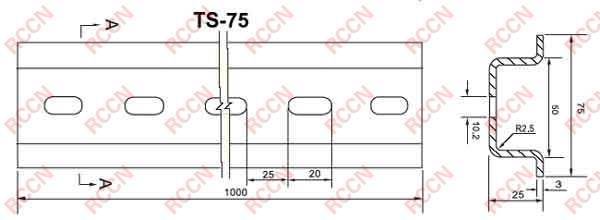

TS-75/3 Steel 8

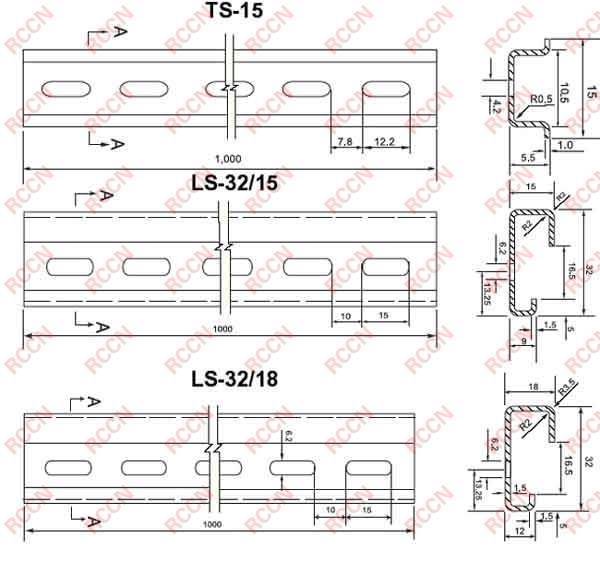

TS-15/1.0 Steel 100

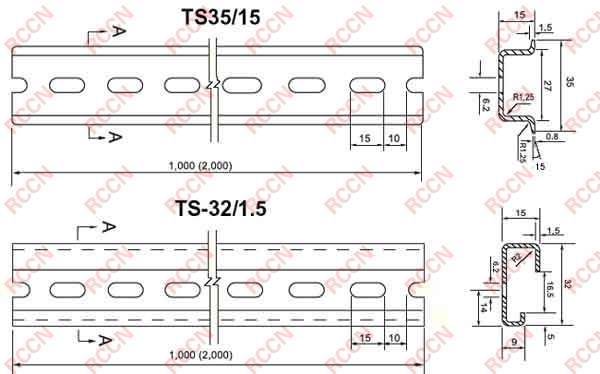

TS35/15 Steel 30
