RCCN LED Spacer Support

Material:UL approved NYLON66（natural）
Functions:keep LED to hold PC board,
Fireproof:UL94-V2
Operate temperature:-40℃~120℃
Standard packing:mini.2000pcs/bag

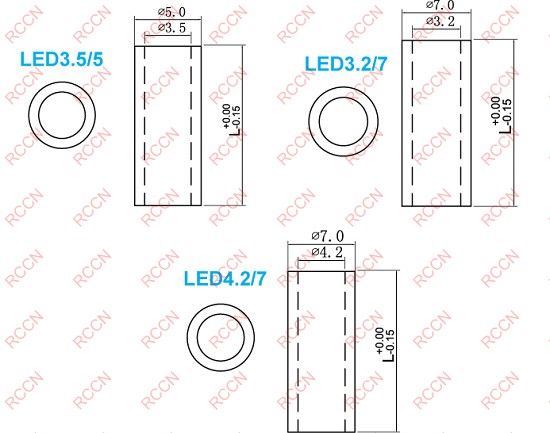

Item No.	Item No.	Item No.
Inner dia./ Outer dia./Height	Inner dia./ Outer dia./Height	Inner dia./ Outer dia./Height
LED3.5/5-2.0	LED3.2/7-2.0	LED4.2/7-2.0
LED3.5/5-2.5	LED3.2/7-2.5	LED4.2/7-3.0
LED3.5/5-3.0	LED3.2/7-3.0	LED4.2/7-4.0
LED3.5/5-3.5	LED3.2/7-4.0	LED4.2/7-4.5
LED3.5/5-4.0	LED3.2/7-4.5	LED4.2/7-5.0
LED3.5/5-4.5	LED3.2/7-5.0	LED4.2/7-6.0
LED3.5/5-5.0	LED3.2/7-5.0B	LED4.2/7-7.0
LED3.5/5-6.0	LED3.2/7-6.0	LED4.2/7-8.0
LED3.5/5-6.5	LED3.2/7-6.5	LED4.2/7-8.5
LED3.5/5-7.0	LED3.2/7-7.0	LED4.2/7-9.0
LED3.5/5-7.5	LED3.2/7-7.5	LED4.2/7-9.5
LED3.5/5-8.0	LED3.2/7-8.0	LED4.2/7-10.0
LED3.5/5-9.0	LED3.2/7-8.5	LED4.2/7-11.0
LED3.5/5-10.0	LED3.2/7-9.0	LED4.2/7-12.0
LED3.5/5-10.5	LED3.2/7-9.5	LED4.2/7-13.0
LED3.5/5-11.0	LED3.2/7-10.0	LED4.2/7-14.0
LED3.5/5-11.5	LED3.2/7-11.0	LED4.2/7-15.0
LED3.5/5-12.0	LED3.2/7-12.0	LED4.2/7-16.0
LED3.5/5-13.0	LED3.2/7-13.0	LED4.2/7-18.0
LED3.5/5-14.0	LED3.2/7-14.0	LED4.2/7-19.0
LED3.5/5-15.0	LED3.2/7-15.0	LED4.2/7-20.0
LED3.5/5-16.0	LED3.2/7-16.0	LED4.2/7-21.0
LED3.5/5-17.0	LED3.2/7-17.0	LED4.2/7-24.0
LED3.5/5-18.0	LED3.2/7-18.0	LED4.2/7-25.0
LED3.5/5-19.0	LED3.2/7-19.0
LED3.5/5-20.0	LED3.2/7-25.0
LED3.5/5-22.0	LED3.2/7-26.0
LED3.5/5-25.0
LED3.5/5-26.0
