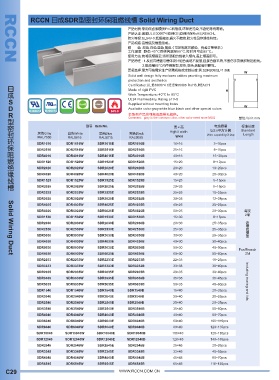

Page 272 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子
P. 272
Solid wall design fully encloses cables providing maximum
protection and aesthetics
Certificates:UL:E306674 CE:EN50085 RoHS,REACHb
Made of rigid PVC
Work Temperature:-40°C to 65°C
UL94 Flammability Rating of V-0
Supplied without mounting holes
Available color:gray.white.blue.black and other special colors
SDR1616 SDR1616W SDR1616E SDR1616B 16×16 3~10pcs
SDR2516 SDR2516W SDR2516E SDR2516B 25×16 5~15pcs
SDR4016 SDR4016W SDR4016E SDR4016B 40×16 15~30pcs
SDR1520 SDR1520W SDR1520E SDR1520B 15×20 8~12pcs
SDR2020 SDR2020W SDR2020E SDR2020B 20×20 10~20pcs
SDR4020 SDR4020W SDR4020E SDR4020B 40×20 20~30pcs
SDR1525 SDR1525W SDR1525E SDR1525B 15×25 5~15pcs
SDR2025 SDR2025W SDR2025E SDR2025B 20×25 5~15pcs
SDR2525 SDR2525W SDR2525E SDR2525B 25×25 10~25pcs
SDR3025 SDR3025W SDR3025E SDR3025B 30×25 12~28pcs
SDR4025 SDR4025W SDR4025E SDR4025B 40×25 20~25pcs
SDR5025 SDR5025W SDR5025E SDR5025B 50×25 20~30pcs
SDR1530 SDR1530W SDR1530E SDR1530B 15×30 8~15pcs
SDR2030 SDR2030W SDR2030E SDR2030B 20×30 25~35pcs
SDR2530 SDR2530W SDR2530E SDR2530B 25×30 25~35pcs
SDR3030 SDR3030W SDR3030E SDR3030B 30×30 25~35pcs
SDR4030 SDR4030W SDR4030E SDR4030B 40×30 30~40pcs
SDR5030 SDR5030W SDR5030E SDR5030B 50×30 40~50pcs
SDR6030 SDR6030W SDR6030E SDR6030B 60×30 50~60pcs
Solid Wiring Duct
SDR2233 SDR2233W SDR2233E SDR2233B 22×33 15~25pcs
SDR3333 SDR3333W SDR3333E SDR3333B 33×33 30~40pcs
SDR2035 SDR2035W SDR2035E SDR2035B 20×35 30~40pcs
SDR3535 SDR3535W SDR3535E SDR3535B 35×35 35~45pcs
SDR5035 SDR5035W SDR5035E SDR5035B 50×35 40~60pcs
SDR1540 SDR1540W SDR1540E SDR1540B 15×40 20~25pcs
SDR2040 SDR2040W SDR2040E SDR2040B 20×40 20~25pcs
SDR2540 SDR2540W SDR2540E SDR2540B 25×40 20~25pcs
SDR3540 SDR3540W SDR3540E SDR3540B 35×40 50~60pcs
SDR4040 SDR4040W SDR4040E SDR4040B 40×40 60~70pcs
SDR6040 SDR6040W SDR6040E SDR6040B 60×40 100~115pcs
SDR8040 SDR8040W SDR8040E SDR8040B 80×40 120~135pcs
SDR10040 SDR10040W SDR10040E SDR10040B 100×40 120~135pcs
SDR12040 SDR12040W SDR12040E SDR12040B 120×40 140~165pcs
SDR2545 SDR2545W SDR2545E SDR2545B 25×45 20~25pcs
SDR3345 SDR3345W SDR3345E SDR3345B 33×45 40~55pcs
SDR4545 SDR4545W SDR4545E SDR4545B 45×45 60~70pcs
SDR6545 SDR6545W SDR6545E SDR6545B 65×45 110~120pcs
protection and aesthetics
Certificates:UL:E306674 CE:EN50085 RoHS,REACHb
Made of rigid PVC
Work Temperature:-40°C to 65°C
UL94 Flammability Rating of V-0
Supplied without mounting holes
Available color:gray.white.blue.black and other special colors
SDR1616 SDR1616W SDR1616E SDR1616B 16×16 3~10pcs
SDR2516 SDR2516W SDR2516E SDR2516B 25×16 5~15pcs
SDR4016 SDR4016W SDR4016E SDR4016B 40×16 15~30pcs
SDR1520 SDR1520W SDR1520E SDR1520B 15×20 8~12pcs
SDR2020 SDR2020W SDR2020E SDR2020B 20×20 10~20pcs
SDR4020 SDR4020W SDR4020E SDR4020B 40×20 20~30pcs
SDR1525 SDR1525W SDR1525E SDR1525B 15×25 5~15pcs
SDR2025 SDR2025W SDR2025E SDR2025B 20×25 5~15pcs
SDR2525 SDR2525W SDR2525E SDR2525B 25×25 10~25pcs
SDR3025 SDR3025W SDR3025E SDR3025B 30×25 12~28pcs
SDR4025 SDR4025W SDR4025E SDR4025B 40×25 20~25pcs
SDR5025 SDR5025W SDR5025E SDR5025B 50×25 20~30pcs
SDR1530 SDR1530W SDR1530E SDR1530B 15×30 8~15pcs
SDR2030 SDR2030W SDR2030E SDR2030B 20×30 25~35pcs
SDR2530 SDR2530W SDR2530E SDR2530B 25×30 25~35pcs
SDR3030 SDR3030W SDR3030E SDR3030B 30×30 25~35pcs
SDR4030 SDR4030W SDR4030E SDR4030B 40×30 30~40pcs
SDR5030 SDR5030W SDR5030E SDR5030B 50×30 40~50pcs
SDR6030 SDR6030W SDR6030E SDR6030B 60×30 50~60pcs
Solid Wiring Duct
SDR2233 SDR2233W SDR2233E SDR2233B 22×33 15~25pcs
SDR3333 SDR3333W SDR3333E SDR3333B 33×33 30~40pcs
SDR2035 SDR2035W SDR2035E SDR2035B 20×35 30~40pcs
SDR3535 SDR3535W SDR3535E SDR3535B 35×35 35~45pcs
SDR5035 SDR5035W SDR5035E SDR5035B 50×35 40~60pcs
SDR1540 SDR1540W SDR1540E SDR1540B 15×40 20~25pcs
SDR2040 SDR2040W SDR2040E SDR2040B 20×40 20~25pcs
SDR2540 SDR2540W SDR2540E SDR2540B 25×40 20~25pcs
SDR3540 SDR3540W SDR3540E SDR3540B 35×40 50~60pcs
SDR4040 SDR4040W SDR4040E SDR4040B 40×40 60~70pcs
SDR6040 SDR6040W SDR6040E SDR6040B 60×40 100~115pcs
SDR8040 SDR8040W SDR8040E SDR8040B 80×40 120~135pcs
SDR10040 SDR10040W SDR10040E SDR10040B 100×40 120~135pcs
SDR12040 SDR12040W SDR12040E SDR12040B 120×40 140~165pcs
SDR2545 SDR2545W SDR2545E SDR2545B 25×45 20~25pcs
SDR3345 SDR3345W SDR3345E SDR3345B 33×45 40~55pcs
SDR4545 SDR4545W SDR4545E SDR4545B 45×45 60~70pcs
SDR6545 SDR6545W SDR6545E SDR6545B 65×45 110~120pcs
