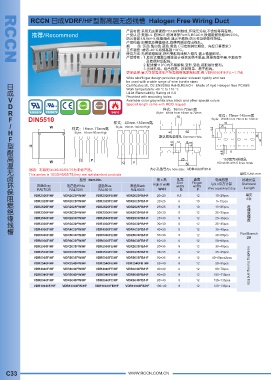

P. 276
Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizesb
Certificates:UL CE:EN50085 RoHS,REACHb Made of rigid Halogen free PCABS
Work temperature:-40 °c to 110 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20×20 8.5 12 10~20pcs
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20×25 8 10 5~15pcs
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25×25 8 10 10~25pcs
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20×30 8 12 25~35pcs
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25×30 8 12 25~35pcs
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30×30 8 12 25~35pcs
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40×30 8 12 30~40pcs
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50×30 8 12 40~50pcs
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60×30 8 12 50~60pcs
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20×35 8 12 30~40pcs
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35×35 8 12 35~45pcs
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50×35 8 12 2pcs 40~60pcs
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB /HF 25×40 8 12 20~35pcs
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40×40 8 12 60~70pcs
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60×40 8 12 100~115pcs
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80×40 8 12 120~135pcs
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100×40 8 12 120~135pcs
be used with a wide range of wire bundle sizesb
Certificates:UL CE:EN50085 RoHS,REACHb Made of rigid Halogen free PCABS
Work temperature:-40 °c to 110 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20×20 8.5 12 10~20pcs
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20×25 8 10 5~15pcs
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25×25 8 10 10~25pcs
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20×30 8 12 25~35pcs
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25×30 8 12 25~35pcs
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30×30 8 12 25~35pcs
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40×30 8 12 30~40pcs
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50×30 8 12 40~50pcs
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60×30 8 12 50~60pcs
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20×35 8 12 30~40pcs
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35×35 8 12 35~45pcs
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50×35 8 12 2pcs 40~60pcs
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB /HF 25×40 8 12 20~35pcs
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40×40 8 12 60~70pcs
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60×40 8 12 100~115pcs
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80×40 8 12 120~135pcs
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100×40 8 12 120~135pcs
