Page 280 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子

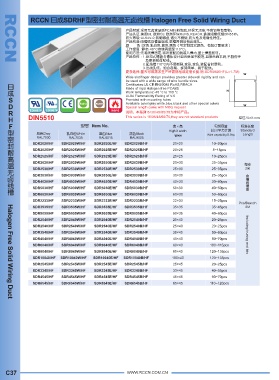

P. 280
Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizesb
Certificates:UL CE:EN50085 RoHS,REACHb
Made of rigid Halogen free PCABS
Work temperature:-40 °c to 110 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
SDR2020/HF SDR2020W/HF SDR2020E/HF SDR2020B/HF 20×20 10~20pcs
SDR2025/HF SDR2025W/HF SDR2025E/HF SDR2025B/HF 20×25 5~15pcs
SDR2525/HF SDR2525W/HF SDR2525E/HF SDR2525B/HF 25×25 10~25pcs
SDR2030/HF SDR2030W/HF SDR2030E/HF SDR2030B/HF 20×30 25~35pcs
SDR2530/HF SDR2530W/HF SDR2530E/HF SDR2530B/HF 25×30 25~35pcs
SDR3030/HF SDR3030W/HF SDR3030E/HF SDR3030B/HF 30×30 25~35pcs
SDR4030/HF SDR4030W/HF SDR4030E/HF SDR4030B/HF 40×30 30~40pcs
SDR5030/HF SDR5030W/HF SDR5030E/HF SDR5030B/HF 50×30 40~50pcs
SDR6030/HF SDR6030W/HF SDR6030E/HF SDR6030B/HF 60×30 50~60pcs
SDR2233/HF SDR2233W/HF SDR2233E/HF SDR2233B/HF 22×33 15~25pcs
SDR3535/HF SDR3535W/HF SDR3535E/HF SDR3535B/HF 35×35 35~45pcs
SDR5035/HF SDR5035W/HF SDR5035E/HF SDR5035B/HF 50×35 40~60pcs
SDR2040/HF SDR2040W/HF SDR2040E/HF SDR2040B/HF 20×40 20~25pcs
SDR2540/HF SDR2540W/HF SDR2540E/HF SDR2540B/HF 25×40 20~25pcs
SDR3540/HF SDR3540W/HF SDR3540E/HF SDR3540B/HF 35×40 50~60pcs
SDR4040/HF SDR4040W/HF SDR4040E/HF SDR4040B/HF 40×40 60~70pcs
SDR6040/HF SDR6040W/HF SDR6040E/HF SDR6040B/HF 60×40 100~115pcs
SDR8040/HF SDR8040W/HF SDR8040E/HF SDR8040B/HF 80×40 120~135pcs
SDR10040/HF SDR10040W/HF SDR10040E/HF SDR10040B/HF 100×40 120~135pcs
SDR2545/HF SDR2545W/HF SDR2545E/HF SDR2545B/HF 25×45 20~25pcs
SDR3345/HF SDR3345W/HF SDR3345E/HF SDR3345B/HF 33×45 40~55pcs
SDR4545/HF SDR4545W/HF SDR4545E/HF SDR4545B/HF 45×45 60~70pcs
SDR6545/HF SDR6545W/HF SDR6545E/HF SDR6545B/HF 65×45 110~120pcs
be used with a wide range of wire bundle sizesb
Certificates:UL CE:EN50085 RoHS,REACHb
Made of rigid Halogen free PCABS
Work temperature:-40 °c to 110 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
SDR2020/HF SDR2020W/HF SDR2020E/HF SDR2020B/HF 20×20 10~20pcs
SDR2025/HF SDR2025W/HF SDR2025E/HF SDR2025B/HF 20×25 5~15pcs
SDR2525/HF SDR2525W/HF SDR2525E/HF SDR2525B/HF 25×25 10~25pcs
SDR2030/HF SDR2030W/HF SDR2030E/HF SDR2030B/HF 20×30 25~35pcs
SDR2530/HF SDR2530W/HF SDR2530E/HF SDR2530B/HF 25×30 25~35pcs
SDR3030/HF SDR3030W/HF SDR3030E/HF SDR3030B/HF 30×30 25~35pcs
SDR4030/HF SDR4030W/HF SDR4030E/HF SDR4030B/HF 40×30 30~40pcs
SDR5030/HF SDR5030W/HF SDR5030E/HF SDR5030B/HF 50×30 40~50pcs
SDR6030/HF SDR6030W/HF SDR6030E/HF SDR6030B/HF 60×30 50~60pcs
SDR2233/HF SDR2233W/HF SDR2233E/HF SDR2233B/HF 22×33 15~25pcs
SDR3535/HF SDR3535W/HF SDR3535E/HF SDR3535B/HF 35×35 35~45pcs
SDR5035/HF SDR5035W/HF SDR5035E/HF SDR5035B/HF 50×35 40~60pcs
SDR2040/HF SDR2040W/HF SDR2040E/HF SDR2040B/HF 20×40 20~25pcs
SDR2540/HF SDR2540W/HF SDR2540E/HF SDR2540B/HF 25×40 20~25pcs
SDR3540/HF SDR3540W/HF SDR3540E/HF SDR3540B/HF 35×40 50~60pcs
SDR4040/HF SDR4040W/HF SDR4040E/HF SDR4040B/HF 40×40 60~70pcs
SDR6040/HF SDR6040W/HF SDR6040E/HF SDR6040B/HF 60×40 100~115pcs
SDR8040/HF SDR8040W/HF SDR8040E/HF SDR8040B/HF 80×40 120~135pcs
SDR10040/HF SDR10040W/HF SDR10040E/HF SDR10040B/HF 100×40 120~135pcs
SDR2545/HF SDR2545W/HF SDR2545E/HF SDR2545B/HF 25×45 20~25pcs
SDR3345/HF SDR3345W/HF SDR3345E/HF SDR3345B/HF 33×45 40~55pcs
SDR4545/HF SDR4545W/HF SDR4545E/HF SDR4545B/HF 45×45 60~70pcs
SDR6545/HF SDR6545W/HF SDR6545E/HF SDR6545B/HF 65×45 110~120pcs
