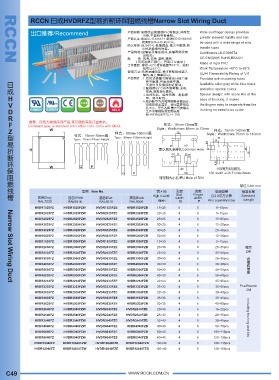

P. 292
Wide slot/finger design provides
greater sidewall rigidity and can
be used with a wide range of wire
bundle sizesb
Certificates:UL:E306674
CE:EN50085 RoHS,REACHb
Made of rigid PVC
Work Temperature:-40°C to 65°C
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black
and other special colors
Special design: with score line at the
base of trunking, it makes
the fingers easy to separate from the
trunking no need to us cutter.
HVDR1525FZ HVDR1525FZW HVDR1525FZE HVDR1525FZB 15×25 5 5 5~15pcs
HVDR2025FZ HVDR2025FZW HVDR2025FZE HVDR2025FZB 20×25 4 6 5~15pcs
HVDR2525FZ HVDR2525FZW HVDR2525FZE HVDR2525FZB 25×25 4 6 10~25pcs
HVDR3025FZ HVDR3025FZW HVDR3025FZE HVDR3025FZB 30×25 4 6 12~28pcs
HVDR4025FZ HVDR4025FZW HVDR4025FZE HVDR4025FZB 40×25 4 6 20~35pcs
HVDR5025FZ HVDR5025FZW HVDR5025FZE HVDR5025FZB 50×25 4 6 12~28pcs
HVDR1530FZ HVDR1530FZW HVDR1530FZE HVDR1530FZB 15×30 4 6 8~15pcs
HVDR2030FZ HVDR2030FZW HVDR2030FZE HVDR2030FZB 20×30 4 6 25~35pcs
HVDR2530FZ HVDR2530FZW HVDR2530FZE HVDR2530FZB 25×30 4 6 25~35pcs
HVDR3030FZ HVDR3030FZW HVDR3030FZE HVDR3030FZB 30×30 4 6 25~35pcs
HVDR4030FZ HVDR4030FZW HVDR4030FZE HVDR4030FZB 40×30 4 6 30~40pcs
HVDR5030FZ HVDR5030FZW HVDR5030FZE HVDR5030FZB 50×30 4 6 40~50pcs
HVDR6030FZ HVDR6030FZW HVDR6030FZE HVDR6030FZB 60×30 4 6 50~60pcs
HVDR2233FZ HVDR2233FZW HVDR2233FZE HVDR2233FZB 22×33 4 6 25~35pcs
Narrow Slot Wiring Duct
HVDR3333FZ HVDR3333FZW HVDR3333FZE HVDR3333FZB 33×33 4 6 35~45pcs
HVDR2035FZ HVDR2035FZW HVDR2035FZE HVDR2035FZB 20×35 4 6 30~40pcs
HVDR3535FZ HVDR3535FZW HVDR3535FZE HVDR3535FZB 35×35 4 6 35~45pcs
HVDR5035FZ HVDR5035FZW HVDR5035FZE HVDR5035FZB 50×35 4 6 40~60pcs
HVDR2040FZ HVDR2040FZW HVDR2040FZE HVDR2040FZB 20×40 4 6 16~22pcs
HVDR2540FZ HVDR2540FZW HVDR2540FZE HVDR2540FZB 25×40 4 6 20~35pcs
HVDR3540FZ HVDR3540FZW HVDR3540FZE HVDR3540FZB 35×40 4 6 30~45pcs
HVDR4040FZ HVDR4040FZW HVDR4040FZE HVDR4040FZB 40×40 4 6 60~70pcs
HVDR6040FZ HVDR6040FZW HVDR6040FZE HVDR6040FZB 60×40 4 6 100~115pcs
HVDR8040FZ HVDR8040FZW HVDR8040FZE HVDR8040FZB 80×40 4 6 120~135pcs
HVDR10040FZ HVDR10040FZW HVDR10040FZE HVDR10040FZB 100×40 4 6 120~135pcs
HVDR12040FZ HVDR12040FZW HVDR12040FZE HVDR12040FZB 120×40 4 6 140~155pcs
greater sidewall rigidity and can
be used with a wide range of wire
bundle sizesb
Certificates:UL:E306674
CE:EN50085 RoHS,REACHb
Made of rigid PVC
Work Temperature:-40°C to 65°C
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black
and other special colors
Special design: with score line at the
base of trunking, it makes
the fingers easy to separate from the
trunking no need to us cutter.
HVDR1525FZ HVDR1525FZW HVDR1525FZE HVDR1525FZB 15×25 5 5 5~15pcs
HVDR2025FZ HVDR2025FZW HVDR2025FZE HVDR2025FZB 20×25 4 6 5~15pcs
HVDR2525FZ HVDR2525FZW HVDR2525FZE HVDR2525FZB 25×25 4 6 10~25pcs
HVDR3025FZ HVDR3025FZW HVDR3025FZE HVDR3025FZB 30×25 4 6 12~28pcs
HVDR4025FZ HVDR4025FZW HVDR4025FZE HVDR4025FZB 40×25 4 6 20~35pcs
HVDR5025FZ HVDR5025FZW HVDR5025FZE HVDR5025FZB 50×25 4 6 12~28pcs
HVDR1530FZ HVDR1530FZW HVDR1530FZE HVDR1530FZB 15×30 4 6 8~15pcs
HVDR2030FZ HVDR2030FZW HVDR2030FZE HVDR2030FZB 20×30 4 6 25~35pcs
HVDR2530FZ HVDR2530FZW HVDR2530FZE HVDR2530FZB 25×30 4 6 25~35pcs
HVDR3030FZ HVDR3030FZW HVDR3030FZE HVDR3030FZB 30×30 4 6 25~35pcs
HVDR4030FZ HVDR4030FZW HVDR4030FZE HVDR4030FZB 40×30 4 6 30~40pcs
HVDR5030FZ HVDR5030FZW HVDR5030FZE HVDR5030FZB 50×30 4 6 40~50pcs
HVDR6030FZ HVDR6030FZW HVDR6030FZE HVDR6030FZB 60×30 4 6 50~60pcs
HVDR2233FZ HVDR2233FZW HVDR2233FZE HVDR2233FZB 22×33 4 6 25~35pcs
Narrow Slot Wiring Duct
HVDR3333FZ HVDR3333FZW HVDR3333FZE HVDR3333FZB 33×33 4 6 35~45pcs
HVDR2035FZ HVDR2035FZW HVDR2035FZE HVDR2035FZB 20×35 4 6 30~40pcs
HVDR3535FZ HVDR3535FZW HVDR3535FZE HVDR3535FZB 35×35 4 6 35~45pcs
HVDR5035FZ HVDR5035FZW HVDR5035FZE HVDR5035FZB 50×35 4 6 40~60pcs
HVDR2040FZ HVDR2040FZW HVDR2040FZE HVDR2040FZB 20×40 4 6 16~22pcs
HVDR2540FZ HVDR2540FZW HVDR2540FZE HVDR2540FZB 25×40 4 6 20~35pcs
HVDR3540FZ HVDR3540FZW HVDR3540FZE HVDR3540FZB 35×40 4 6 30~45pcs
HVDR4040FZ HVDR4040FZW HVDR4040FZE HVDR4040FZB 40×40 4 6 60~70pcs
HVDR6040FZ HVDR6040FZW HVDR6040FZE HVDR6040FZB 60×40 4 6 100~115pcs
HVDR8040FZ HVDR8040FZW HVDR8040FZE HVDR8040FZB 80×40 4 6 120~135pcs
HVDR10040FZ HVDR10040FZW HVDR10040FZE HVDR10040FZB 100×40 4 6 120~135pcs
HVDR12040FZ HVDR12040FZW HVDR12040FZE HVDR12040FZB 120×40 4 6 140~155pcs
