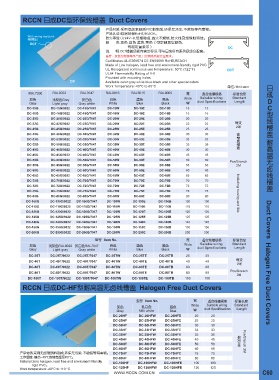

P. 303
Certificates:UL:E306674 CE:EN50085 RoHS,REACH
b
Made of Low halogen, lead free and enviroment-friendly rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
DC-15G DC-15G/9022 DC-15G/7047 DC-15W DC-15E DC-15B 15 15ॺཌҢ
DC-16G DC-16G/9022 DC-16G/7047 DC-16W DC-16E DC-16B 16 16ॺཌҢ
DC-20G DC-20G/9022 DC-20G/7047 DC-20W DC-20E DC-20B 20 20ॺཌҢ
DC-22G DC-22G/9022 DC-22G/7047 DC-22W DC-22E DC-22B 22 22ॺཌҢ
DC-25G DC-25G/9022 DC-25G/7047 DC-25W DC-25E DC-25B 25 25ॺཌҢ
DC-30G DC-30G/9022 DC-30G/7047 DC-30W DC-30E DC-30B 30 30ॺཌҢ
DC-33G DC-33G/9022 DC-33G/7047 DC-33W DC-33E DC-33B 33 33ॺཌҢ
DC-35G DC-35G/9022 DC-35G/7047 DC-35W DC-35E DC-35B 35 35ॺཌҢ
DC-40G DC-40G/9022 DC-40G/7047 DC-40W DC-40E DC-40B 40 40ॺཌҢ
DC-45G DC-45G/9022 DC-45G/7047 DC-45W DC-45E DC-45B 45 45ॺཌҢ
DC-50G DC-50G/9022 DC-50G/7047 DC-50W DC-50E DC-50B 50 50ॺཌҢ
DC-55G DC-55G/9022 DC-55G/7047 DC-55W DC-55E DC-55B 55 55ॺཌҢ
DC-60G DC-60G/9022 DC-60G/7047 DC-60W DC-60E DC-60B 60 60ॺཌҢ
DC-65G DC-65G/9022 DC-65G/7047 DC-65W DC-65E DC-65B 65 65ॺཌҢ
DC-70G DC-70G/9022 DC-70G/7047 DC-70W DC-70E DC-70B 70 70ॺཌҢ
DC-72G DC-72G/9022 DC-72G/7047 DC-72W DC-72E DC-72B 72 72ॺཌҢ
DC-75G DC-75G/9022 DC-75G/7047 DC-75W DC-75E DC-75B 75 75ॺཌҢ
DC-80G DC-80G/9022 DC-80G/7047 DC-80W DC-80E DC-80B 80 80ॺཌҢ
DC-100G DC-100G/9022 DC-100G/7047 DC-100W DC-100E DC-100B 100 100ॺཌҢ
DC-110G DC-110G/9022 DC-110G/7047 DC-110W DC-110E DC-110B 110 110ॺཌҢ
DC-120G DC-120G/9022 DC-120G/7047 DC-120W DC-120E DC-120B 120 120ॺཌҢ
DC-125G DC-125G/9022 DC-125G/7047 DC-125W DC-125E DC-125B 125 125ॺཌҢ
DC-140G DC-140G/9022 DC-140G/7047 DC-140W DC-140E DC-140B 140 140ॺཌҢ Duct Covers
DC-150G DC-150G/9022 DC-150G/7047 DC-150W DC-150E DC-150B 150 150ॺཌҢ
DC-200G DC-200G/9022 DC-200G/7047 DC-200W DC-200E DC-200B 200 200ॺཌҢ
DC-25T DC-25T/9022 DC-25T/7047 DC-25TW DC-25TE DC-25TB 25 25ॺཌҢ
DC-40T DC-40T/9022 DC-40T/7047 DC-40TW DC-40TE DC-40TB 40 40ॺཌҢ
DC-60T DC-60T/9022 DC-60T/7047 DC-60TW DC-60TE DC-60TB 60 60ॺཌҢ
DC-80T DC-80T/9022 DC-80T/7047 DC-80TW DC-80TE DC-80TB 80 80ॺཌҢ
DC-100T DC-100T/9022 DC-100T/7047 DC-100TW DC-100TE DC-100TB100 100ॺཌҢ Halogen Free Duct Covers
DC-20HF DC-20HFW DC-20HFE 20 20ॺཌҢ
DC-25HF DC-25HFW DC-25HFE 25 25ॺཌҢ
DC-30HF DC-30HFW DC-30HFE 30 30ॺཌҢ
DC-33HF DC-33HFW DC-33HFE 33 33ॺཌҢ
DC-35HF DC-35HFW DC-35HFE 35 35ॺཌҢ
DC-40HF DC-40HFW DC-40HFE 40 40ॺཌҢ
DC-50HF DC-50HFW DC-50HFE 50 50ॺཌҢ
DC-60HF DC-60HFW DC-60HFE 60 60ॺཌҢ
DC-75HF DC-75HFW DC-75HFE 75 75ॺཌҢ
DC-80HF DC-80HFW DC-80HFE 80 80ॺཌҢ
DC-100HF DC-100HFW DC-100HFE 100 100ॺཌҢ
DC-120HF DC-120HFW DC-120HFE 120 120ॺཌҢ
b
Made of Low halogen, lead free and enviroment-friendly rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
DC-15G DC-15G/9022 DC-15G/7047 DC-15W DC-15E DC-15B 15 15ॺཌҢ
DC-16G DC-16G/9022 DC-16G/7047 DC-16W DC-16E DC-16B 16 16ॺཌҢ
DC-20G DC-20G/9022 DC-20G/7047 DC-20W DC-20E DC-20B 20 20ॺཌҢ
DC-22G DC-22G/9022 DC-22G/7047 DC-22W DC-22E DC-22B 22 22ॺཌҢ
DC-25G DC-25G/9022 DC-25G/7047 DC-25W DC-25E DC-25B 25 25ॺཌҢ
DC-30G DC-30G/9022 DC-30G/7047 DC-30W DC-30E DC-30B 30 30ॺཌҢ
DC-33G DC-33G/9022 DC-33G/7047 DC-33W DC-33E DC-33B 33 33ॺཌҢ
DC-35G DC-35G/9022 DC-35G/7047 DC-35W DC-35E DC-35B 35 35ॺཌҢ
DC-40G DC-40G/9022 DC-40G/7047 DC-40W DC-40E DC-40B 40 40ॺཌҢ
DC-45G DC-45G/9022 DC-45G/7047 DC-45W DC-45E DC-45B 45 45ॺཌҢ
DC-50G DC-50G/9022 DC-50G/7047 DC-50W DC-50E DC-50B 50 50ॺཌҢ
DC-55G DC-55G/9022 DC-55G/7047 DC-55W DC-55E DC-55B 55 55ॺཌҢ
DC-60G DC-60G/9022 DC-60G/7047 DC-60W DC-60E DC-60B 60 60ॺཌҢ
DC-65G DC-65G/9022 DC-65G/7047 DC-65W DC-65E DC-65B 65 65ॺཌҢ
DC-70G DC-70G/9022 DC-70G/7047 DC-70W DC-70E DC-70B 70 70ॺཌҢ
DC-72G DC-72G/9022 DC-72G/7047 DC-72W DC-72E DC-72B 72 72ॺཌҢ
DC-75G DC-75G/9022 DC-75G/7047 DC-75W DC-75E DC-75B 75 75ॺཌҢ
DC-80G DC-80G/9022 DC-80G/7047 DC-80W DC-80E DC-80B 80 80ॺཌҢ
DC-100G DC-100G/9022 DC-100G/7047 DC-100W DC-100E DC-100B 100 100ॺཌҢ
DC-110G DC-110G/9022 DC-110G/7047 DC-110W DC-110E DC-110B 110 110ॺཌҢ
DC-120G DC-120G/9022 DC-120G/7047 DC-120W DC-120E DC-120B 120 120ॺཌҢ
DC-125G DC-125G/9022 DC-125G/7047 DC-125W DC-125E DC-125B 125 125ॺཌҢ
DC-140G DC-140G/9022 DC-140G/7047 DC-140W DC-140E DC-140B 140 140ॺཌҢ Duct Covers
DC-150G DC-150G/9022 DC-150G/7047 DC-150W DC-150E DC-150B 150 150ॺཌҢ
DC-200G DC-200G/9022 DC-200G/7047 DC-200W DC-200E DC-200B 200 200ॺཌҢ
DC-25T DC-25T/9022 DC-25T/7047 DC-25TW DC-25TE DC-25TB 25 25ॺཌҢ
DC-40T DC-40T/9022 DC-40T/7047 DC-40TW DC-40TE DC-40TB 40 40ॺཌҢ
DC-60T DC-60T/9022 DC-60T/7047 DC-60TW DC-60TE DC-60TB 60 60ॺཌҢ
DC-80T DC-80T/9022 DC-80T/7047 DC-80TW DC-80TE DC-80TB 80 80ॺཌҢ
DC-100T DC-100T/9022 DC-100T/7047 DC-100TW DC-100TE DC-100TB100 100ॺཌҢ Halogen Free Duct Covers
DC-20HF DC-20HFW DC-20HFE 20 20ॺཌҢ
DC-25HF DC-25HFW DC-25HFE 25 25ॺཌҢ
DC-30HF DC-30HFW DC-30HFE 30 30ॺཌҢ
DC-33HF DC-33HFW DC-33HFE 33 33ॺཌҢ
DC-35HF DC-35HFW DC-35HFE 35 35ॺཌҢ
DC-40HF DC-40HFW DC-40HFE 40 40ॺཌҢ
DC-50HF DC-50HFW DC-50HFE 50 50ॺཌҢ
DC-60HF DC-60HFW DC-60HFE 60 60ॺཌҢ
DC-75HF DC-75HFW DC-75HFE 75 75ॺཌҢ
DC-80HF DC-80HFW DC-80HFE 80 80ॺཌҢ
DC-100HF DC-100HFW DC-100HFE 100 100ॺཌҢ
DC-120HF DC-120HFW DC-120HFE 120 120ॺཌҢ
