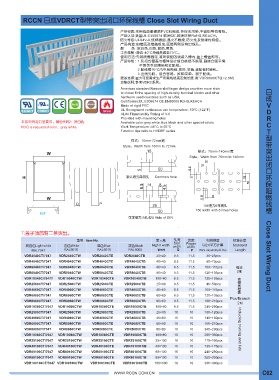

P. 305
American standard Narrow slot/finger design provides more slots
to closer fit the spacing of high-density terminal blocks and other
hardware used countries such as USA,
Certificates:UL:E306674 CE:EN50085 RoHS,REACH
b
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Function tips:refre to HVDRF series
VDR2540CT/7047 VDR2540CTW VDR2540CTE VDR2540CTB 25×40 8.5 11.5 20~25pcs Close Slot Wiring Duct
VDR4040CT/7047 VDR4040CTW VDR4040CTE VDR4040CTB 40×40 8.5 11.5 60~70pcs
VDR6040CT/7047 VDR6040CTW VDR6040CTE VDR6040CTB 60×40 8.5 11.5 100~115pcs
VDR8040CT/7047 VDR8040CTW VDR8040CTE VDR8040CTB 80×40 8.5 11.5 120~135pcs
VDR10040C/7047T VDR10040CTW VDR10040CTE VDR10040CTB 100×40 8.5 11.5 120~135pcs
VDR2560CT/7047 VDR2560CTW VDR2560CTE VDR2560CTB 25×60 8.5 11.5 40~50pcs
VDR4060CT/7047 VDR4060CTW VDR4060CTE VDR4060CTB 40×60 8.5 11.5 100~115pcs
VDR6060CT/7047 VDR6060CTW VDR6060CTE VDR6060CTB 60×60 8.5 11.5 120~135pcs
VDR8060CT/7047 VDR8060CTW VDR8060CTE VDR8060CTB 80×60 8.5 11.5 180~210pcs
VDR10060CT/7047 VDR10060CTW VDR10060CTE VDR10060CTB 100×60 8.5 11.5 240~290pcs
VDR2580CT/7047 VDR2580CTW VDR2580CTE VDR2580CTB 25×80 10 10 100~120pcs
VDR4080CT/7047 VDR4080CTW VDR4080CTE VDR4080CTB 40×80 10 10 140~160pcs
VDR6080CT/7047 VDR6080CTW VDR6080CTE VDR6080CTB 60×80 10 10 180~210pcs
VDR8080CT/7047 VDR8080CTW VDR8080CTE VDR8080CTB 80×80 10 10 240~290pcs
VDR10080CT/7047 VDR10080CTW VDR10080CTE VDR10080CTB 100×80 10 10 260~350pcs
VDR25100CT/7047 VDR25100CTW VDR25100CTE VDR25100CTB 25×100 10 10 110~160pcs
VDR40100CT/7047 VDR40100CTW VDR40100CTE VDR40100TCB 40×100 10 10 130~175pcs
VDR60100CT/7047 VDR60100CTW VDR60100CTE VDR60100CTB 60×100 10 10 240~290pcs
VDR80100CT/7047 VDR80100CTW VDR80100CTE VDR80100CTB 80×100 10 10 260~350pcs
VDR100100CT/7047 VDR100100CTW VDR100100CTE VDR100100CTB 100×100 10 10 300~400pcs
to closer fit the spacing of high-density terminal blocks and other
hardware used countries such as USA,
Certificates:UL:E306674 CE:EN50085 RoHS,REACH
b
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Function tips:refre to HVDRF series
VDR2540CT/7047 VDR2540CTW VDR2540CTE VDR2540CTB 25×40 8.5 11.5 20~25pcs Close Slot Wiring Duct
VDR4040CT/7047 VDR4040CTW VDR4040CTE VDR4040CTB 40×40 8.5 11.5 60~70pcs
VDR6040CT/7047 VDR6040CTW VDR6040CTE VDR6040CTB 60×40 8.5 11.5 100~115pcs
VDR8040CT/7047 VDR8040CTW VDR8040CTE VDR8040CTB 80×40 8.5 11.5 120~135pcs
VDR10040C/7047T VDR10040CTW VDR10040CTE VDR10040CTB 100×40 8.5 11.5 120~135pcs
VDR2560CT/7047 VDR2560CTW VDR2560CTE VDR2560CTB 25×60 8.5 11.5 40~50pcs
VDR4060CT/7047 VDR4060CTW VDR4060CTE VDR4060CTB 40×60 8.5 11.5 100~115pcs
VDR6060CT/7047 VDR6060CTW VDR6060CTE VDR6060CTB 60×60 8.5 11.5 120~135pcs
VDR8060CT/7047 VDR8060CTW VDR8060CTE VDR8060CTB 80×60 8.5 11.5 180~210pcs
VDR10060CT/7047 VDR10060CTW VDR10060CTE VDR10060CTB 100×60 8.5 11.5 240~290pcs
VDR2580CT/7047 VDR2580CTW VDR2580CTE VDR2580CTB 25×80 10 10 100~120pcs
VDR4080CT/7047 VDR4080CTW VDR4080CTE VDR4080CTB 40×80 10 10 140~160pcs
VDR6080CT/7047 VDR6080CTW VDR6080CTE VDR6080CTB 60×80 10 10 180~210pcs
VDR8080CT/7047 VDR8080CTW VDR8080CTE VDR8080CTB 80×80 10 10 240~290pcs
VDR10080CT/7047 VDR10080CTW VDR10080CTE VDR10080CTB 100×80 10 10 260~350pcs
VDR25100CT/7047 VDR25100CTW VDR25100CTE VDR25100CTB 25×100 10 10 110~160pcs
VDR40100CT/7047 VDR40100CTW VDR40100CTE VDR40100TCB 40×100 10 10 130~175pcs
VDR60100CT/7047 VDR60100CTW VDR60100CTE VDR60100CTB 60×100 10 10 240~290pcs
VDR80100CT/7047 VDR80100CTW VDR80100CTE VDR80100CTB 80×100 10 10 260~350pcs
VDR100100CT/7047 VDR100100CTW VDR100100CTE VDR100100CTB 100×100 10 10 300~400pcs
