SELF-ADHESIVE WIRE CLIP-FC
  |
|
Material: . approved Natural Nylon 66, 94V-2. (Backed with Adhesive tape) |

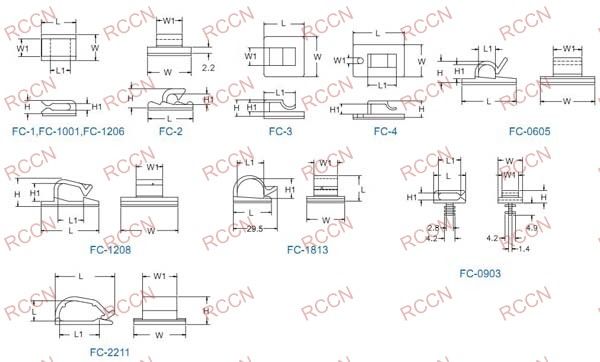

| L | L1 | W | W1 | H | H1 | ||
| FC-1 | 13 | 9 | 9.5 | 6.5 | 5.2 | 2.8 | |
| FC-2 | 16 | 4.8 | 15.5 | 9 | 6.8 | 4.8 | |
| FC-3 | 16 | 12.5 | 16 | 8.8 | 8.7 | 3.7 | |
| FC-4 | 27 | 14.8 | 17 | 3.1 | 8.7 | 5.5 | |
| FC-0605 | 19 | 5.9 | 19 | 10 | 7.2 | 4.9 | |
| FC-1206 | 16 | 11.9 | 15.8 | 8.9 | 9 | 5.8 | |
| FC-1208 | 26.8 | 11.9 | 26.5 | 12.3 | 11.7 | 8.3 | |
| FC-1813 | 25.6 | 17.8 | 25.5 | 15.8 | 17.2 | 13.3 | |
| FC-2211 | 32.5 | 22.2 | 28.3 | 18.7 | 15.2 | 11.1 | |
| FC-0903 | 12.8 | 8.9 | 9.8 | 6.6 | 5 | 2.8 |
