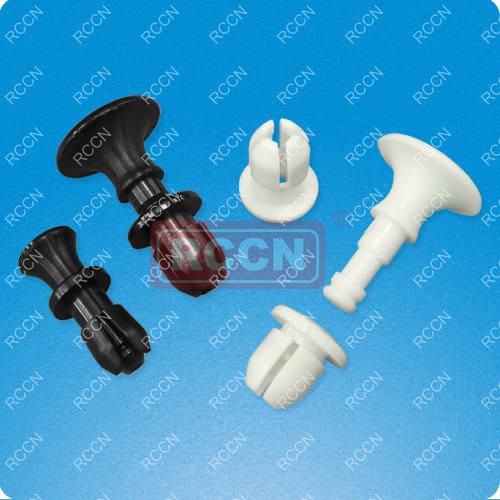

RCCN SG Nylon Push Latches
  |
|
Material：NYLON66, UL approved,fireproof 94V-2 |

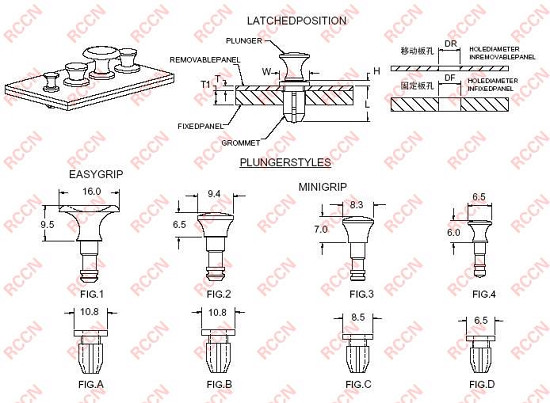

| Item.No. | Installiny Hole | Suitable board thickness T1 |
Dimensions | FIG.NO. | Pkg pcs |
||||||
| Black | White | Movable Hole DR |
Fixed Hole DF |
W | H | L | T | Head | Bottom | ||
| SGSL-SPL1LB | SGSL-SPL1LW | 7.5-7.7 | 8.0-8.2 | 1.5-3.7 | 10.8 | 2.0 | 8.6 | 1.1 | 1 | A |
1000PCS
|
| SG1L-SPL1LB | SG1L-SPL1LW | 7.5-7.7 | 8.0-8.2 | 2.0-4.2 | 10.8 | 2.0 | 9.0 | 1.6 | 1 | A | |
| SG2L-SPL2LB | SG2L-SPL2LW | 7.5-7.7 | 8.0-8.2 | 3.0-5.2 | 10.8 | 2.0 | 10.0 | 2.5 | 1 | A | |
| SG3L-SPL3LB | SG3L-SPL3LW | 7.5-7.7 | 8.0-8.2 | 4.6-6.9 | 10.8 | 2.0 | 11.7 | 4.1 | 1 | A | |
| SG4L-SPL4LB | SG4L-SPL4LW | 7.5-7.7 | 8.0-8.2 | 5.8-8.1 | 10.8 | 2.0 | 12.9 | 5.3 | 1 | A | |
| SGSL-SPB1LB | SGSL-SPB1LW | 7.5-7.7 | 8.0-8.2 | 1.5-3.7 | 10.8 | 2.0 | 8.6 | 1.1 | 2 | B | |
| SG1L-SPB1MB | SG1L-SPB1MW | 7.5-7.7 | 8.0-8.2 | 2.0-4.2 | 10.8 | 2.0 | 9.0 | 1.6 | 2 | B | |
| SG2L-SPB2MB | SG2L-SPB2MW | 7.5-7.7 | 8.0-8.2 | 3.0-5.2 | 10.8 | 2.0 | 10.0 | 2.5 | 2 | B | |
| SG3L-SPB3MB | SG3L-SPB3MW | 7.5-7.7 | 8.0-8.2 | 4.6-6.9 | 10.8 | 2.0 | 11.7 | 4.1 | 2 | B | |
| SG4L-SPB4MB | SG4L-SPB4MW | 7.5-7.7 | 8.0-8.2 | 5.8-8.1 | 10.8 | 2.0 | 12.9 | 5.3 | 2 | B | |
| SG1M-SPB1MB | SG1M-SPB1MW | 5.9-6.1 | 6.3-6.5 | 1.5-3.7 | 8.5 | 1.8 | 8.0 | 1.1 | 3 | C | |
| SG2M-SPB2MB | SG2M-SPB2MW | 5.9-6.1 | 6.3-6.5 | 2.0-4.2 | 8.5 | 1.8 | 8.5 | 1.6 | 3 | C | |
| SG3M-SPB3MB | SG3M-SPB3MW | 5.9-6.1 | 6.3-6.5 | 3.0-5.2 | 8.5 | 1.8 | 9.5 | 1.8 | 3 | C | |
| SG4M-SPB4MB | SG4M-SPB4MW | 5.9-6.1 | 6.3-6.5 | 4.6-6.9 | 8.5 | 1.8 | 11.0 | 1.8 | 3 | C | |
| SG1S-SPB1SB | SG1S-SPB1SW | 4.6 | 4.8 | 1.5-3.7 | 6.5 | 1.2 | 7.6 | 1.0 | 4 | D | |
| SG2S-SPB2SB | SG2S-SPB2SW | 4.6 | 4.8 | 2.0-4.2 | 6.5 | 1.2 | 8.1 | 1.5 | 4 | D | |
