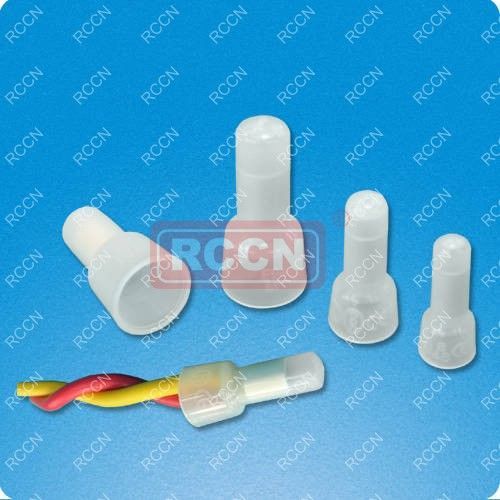

RCCN CE Close-End Wire Connector
  |
| *Four models cover a wide range of wire combinations from 22 AWG strands through 10 AWG stranded. *Compact design its easily into tight locations. *Flared skirt ensures easily wire entry and protects against turned-back strands. *UL Listed for 300V maximum building wiring; temperature rated at 105°C (221°F) maximum. *P/N with postix V0 means the shell is UL 94V-0 lame-retardant. Wire Connectors & Terminals Wire Connectors *P/N with postix "-L" means the tube is made of aluminum. *Material: UL approved 94V-2 Polyamide 6.6, copper tube or aluminum tube. Page number:B54 |

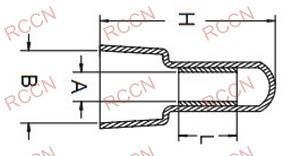

| AWG & mm2((squaredata) refered sheet | AWG | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| mm2 | 33.4 | 20.8 | 13.2 | 8.4 | 5.3 | 3.3 | 2.1 | 1.3 | 0.83 | 0.52 | 0.33 | 0.21 | 0.13 | 0.08 | 0.05 | 0.03 |
|
Item No. |
L
|
H |
A |
B |
Suitable Wires |
Packing |
||
| Square cable mm |
AWG | Strang | ||||||
| CE-1 | 7.5 | 18.0 | 2.6 | 6.2 | 1.25 | 22-18 |
Min. 2 pcs of #22 cable |
|
| CE-2 | 7.5 | 19.7 | 3.0 | 7.9 | 2.0 | 22-14 |
Min. 2 pcs of #18 cable |
|
| CE-5 | 8.5 | 25.5 | 4.0 | 10.5 | 5.5 | 22-10 |
Min. 2 pcs of #16 cable |
500PCS |
| CE-8 | 9.5 | 27.7 | 5.3 | 12.4 | 8.0 | 16-10 |
Min. 2 pcs of #16 cable |
|
