P. 230
Main Material: PE of soft,fireproof,enviroment
protected,halegon free Approved by UL 224,rating
sed temperture 125 cent degree,rating voltage
600 V and VW-1 fireproob
Approved by CSA 224,rating sed temperture 125
cent degree,rating voltage 1KV and VW-1
heat-resistantb
Suitable temperture: - 55 cent degree to 125 cent
degree Available
Color: Black,white,red,blue,yellow,grean,
brown,gray,orange,purple
Ratio of shrinking: 2:1
HST-0.6 Φ 0.6 0.9 ± 0.2 ≤ 0.15 ± 0.05 0.40 0.22 ± 0.10 200 0.5-0.7
HST-0.8 Φ 0.8 1.0 ± 0.2 ≤ 0.15 ± 0.05 0.50 0.22 ± 0.10 200 0.6-0.8
HST-1 Φ 1.0 1.5 ± 0.2 ≤ 0.15 ± 0.05 0.65 0.28 ± 0.10 200 0.75-0.9
HST-1.5 Φ 1.5 2.0 ± 0.2 ≤ 0.18 ± 0.05 0.85 0.32 ± 0.10 200 0.95-1.4
HST-2 Φ 2.0 2.5 ± 0.2 ≤ 0.18 ± 0.05 1.00 0.35 ± 0.10 200 1.1-1.8
HST-2.5 Φ 2.5 3.0 ± 0.2 ≤ 0.18 ± 0.05 1.30 0.38 ± 0.10 200 1.4-2.3
HST-3 Φ 3.0 3.5 ± 0.2 ≤ 0.18 ± 0.05 1.50 0.40 ± 0.10 200 1.6-2.7
HST-3.5 Φ 3.5 4.0 ± 0.2 ≤ 0.22 ± 0.05 1.80 0.42 ± 0.10 200 1.9-3.2
HST-4 Φ 4.0 4.5 ± 0.2 ≤ 0.25 ± 0.05 2.00 0.45 ± 0.10 200 2.1-3.6
HST-4.5 Φ 4.5 5.0 ± 0.2 ≤ 0.25 ± 0.05 2.30 0.50 ± 0.10 100 2.4-4.0
HST-5 Φ 5.0 5.5 ± 0.2 ≤ 0.25 ± 0.05 2.50 0.55 ± 0.10 100 2.6-4.5
HST-5.5 Φ 5.5 6.0 ± 0.2 ≤ 0.25 ± 0.05 2.75 0.55 ± 0.10 100 2.8-5.0
HST-6 Φ 6.0 6.5 ± 0.2 ≤ 0.28 ± 0.05 3.00 0.55 ± 0.10 100 3.1-5.4
HST-7 Φ 7.0 7.5 ± 0.3 ≤ 0.28 ± 0.05 3.50 0.55 ± 0.10 100 3.7-6.3
HST-8 Φ 8.0 8.5 ± 0.3 ≤ 0.28 ± 0.05 4.00 0.60 ± 0.10 100 4.2-7.2
HST-9 Φ 9.0 9.5 ± 0.3 ≤ 0.30 ± 0.08 4.50 0.60 ± 0.10 100 4.7-8.0
HST-10 Φ 10 10.8 ± 0.3 ≤ 0.30 ± 0.08 5.00 0.60 ± 0.10 100 5.2-9.0
HST-11 Φ 11 11.5 ± 0.3 ≤ 0.30 ± 0.08 5.50 0.60 ± 0.10 100 5.7-10
HST-12 Φ 12 12.5 ± 0.3 ≤ 0.30 ± 0.08 6.00 0.60 ± 0.10 100 6.2-11
HST-13 Φ 13 13.5 ± 0.3 ≤ 0.35 ± 0.10 6.50 0.65 ± 0.10 100 6.7-12
HST-14 Φ 14 14.5 ± 0.3 ≤ 0.35 ± 0.10 7.00 0.65 ± 0.10 100 7.3-13

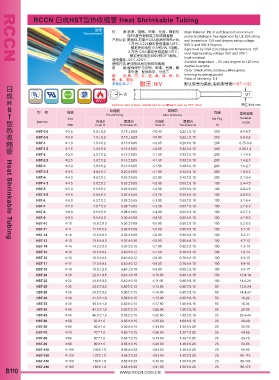

Heat Shrinkable Tubing
HST-15 Φ 15 15.5 ± 0.4 ≤ 0.40 ± 0.12 7.50 0.70 ± 0.10 100 7.8-14
HST-16 Φ 16 16.5 ± 0.4 ≤ 0.40 ± 0.12 8.00 0.70 ± 0.10 100 8.3-15
HST-17 Φ 17 17.5 ± 0.4 ≤ 0.40 ± 0.12 8.50 0.70 ± 0.10 100 8.8-16
HST-18 Φ 18 19.0 ± 0.5 ≤ 0.40 ± 0.15 9.00 0.80 ± 0.15 100 9.3-17
HST-20 Φ 20 22.0 ± 0.5 ≤ 0.40 ± 0.15 10.00 0.80 ± 0.15 100 10.4-19
HST-22 Φ 22 24.0 ± 0.5 ≤ 0.40 ± 0.15 11.00 0.80 ± 0.15 100 11.4-21
HST-25 Φ 25 26.0 ± 0.5 ≤ 0.50 ± 0.15 12.50 0.90 ± 0.15 50 12.8-24
HST-28 Φ 28 29.0 ± 0.5 ≤ 0.50 ± 0.15 14.00 0.90 ± 0.15 50 14.4-27
HST-30 Φ 30 31.5 ± 1.0 ≤ 0.50 ± 0.15 15.00 0.95 ± 0.15 50 16-29
HST-35 Φ 35 36.5 ± 1.0 ≤ 0.50 ± 0.15 17.50 1.00 ± 0.15 50 18-34
HST-40 Φ 40 41.5 ± 1.0 ≤ 0.55 ± 0.15 20.00 1.00 ± 0.15 50 21-39
HST-45 Φ 45 46.5 ± 1.0 ≤ 0.55 ± 0.15 22.50 1.00 ± 0.15 25 23.4-44
HST-50 Φ 50 ± 1.0 50 0.55 ± 0.15 ≤ 25.00 1.00 ± 0.15 25 26-49
HST-60 Φ 60 60 ± 1.0 0.60 ± 0.15 ≤ 31.00 1.30 ± 0.20 25 35-55
HST-70 Φ 70 70 ± 1.0 ≤ 36.00 1.30 ± 0.20 25 40-65
0.65 ± 0.15
0.65 ± 0.15
HST-80 Φ 80 80 ± 1.0 ≤ 41.00 1.46 ± 0.20 25 45-75
HST-90 Φ 90 90 ± 1.0 ≤ 46.00 1.46 ± 0.20 25 50-85
0.65 ± 0.15
HST-100 Φ 100 100 ± 1.0 0.65 ± 0.20 51.00 1.46 ± 0.20 25 55-95
≤
HST-120 Φ 120 120 ± 1.0 0.65 ± 0.20 61.00 1.56 ± 0.20 25 65-115
≤
HST-150 Φ 150 150 ± 1.0 0.65 ± 0.20 76.00 1.56 ± 0.20 25 80-145
≤
HST-180 Φ 180 180 ± 1.0 0.65 ± 0.30 91.00 1.56 ± 0.20 25 95-175
≤
