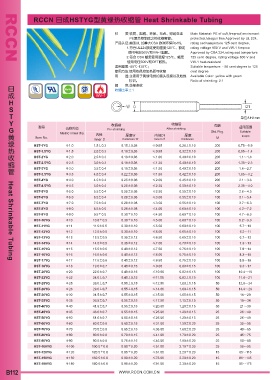

P. 232
Main Material: PE of soft,fireproof,enviroment
protected,halegon free Approved by UL 224,
rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 fireproob
Approved by CSA 224,rating sed temperture
125 cent degree, rating voltage 600 V and
VW-1 heat-resistantb
Suitable temperture: - 55 cent degree to 125
cent degree
Available Color: yellow with green
Ratio of shrinking: 2:1
HST-1YG Φ 1.0 1.5 ± 0.3 ≤ 0.15 ± 0.08 0.65 0.28 ± 0.10 200 0.75 ～ 0.9
HST-1.5YG Φ 1.5 2.0 ± 0.3 ≤ 0.18 ± 0.08 0.85 0.32 ± 0.10 200 0.95 ～ 1.4
HST-2YG Φ 2.0 2.5 ± 0.3 ≤ 0.18 ± 0.08 1.00 0.40 ± 0.10 200 1.1 ～ 1.8
HST-2.5YG Φ 2.5 3.0 ± 0.3 ≤ 0.18 ± 0.08 1.30 0.40 ± 0.10 200 1.35 ～ 2.3
HST-3YG Φ 3.0 3.5 ± 0.4 ≤ 0.18 ± 0.08 1.50 0.40 ± 0.10 200 1.6 ～ 2.7
HST-3.5YG Φ 3.5 4.0 ± 0.4 ≤ 0.22 ± 0.08 1.80 0.42 ± 0.10 200 1.85 ～ 3.2
HST-4YG Φ 4.0 4.5 ± 0.4 ≤ 0.25 ± 0.08 2.00 0.45 ± 0.10 200 2.1 ～ 3.6
HST-4.5YG Φ 4.5 5.0 ± 0.4 ≤ 0.25 ± 0.08 2.30 0.50 ± 0.10 100 2.35 ～ 4.0
HST-5YG Φ 5.0 5.5 ± 0.4 ≤ 0.25 ± 0.08 2.50 0.55 ± 0.10 100 2.6 ～ 4.5
HST-6YG Φ 6.0 6.5 ± 0.4 ≤ 0.28 ± 0.08 3.00 0.55 ± 0.10 100 3.1 ～ 5.4
HST-7YG Φ 7.0 7.5 ± 0.4 ≤ 0.28 ± 0.08 3.50 0.55 ± 0.10 100 3.7 ～ 6.3
HST-8YG Φ 8.0 8.5 ± 0.5 ≤ 0.28 ± 0.08 4.00 0.60 ± 0.10 100 4.2 ～ 7.2
HST-9YG Φ 9.0 9.5 ± 0.5 ≤ 0.30 ± 0.10 4.50 0.60 ± 0.10 100 4.7 ～ 8.0
HST-10YG Φ 10 10.8 ± 0.5 ≤ 0.30 ± 0.10 5.00 0.60 ± 0.10 100 5.2 ～ 9.0
HST-11YG Φ 11 11.5 ± 0.5 ≤ 0.30 ± 0.10 5.50 0.60 ± 0.10 100 5.7 ～ 10
HST-12YG Φ 12 12.5 ± 0.5 ≤ 0.30 ± 0.10 6.00 0.65 ± 0.10 100 6.2 ～ 11
HST-13YG Φ 13 13.5 ± 0.5 ≤ 0.35 ± 0.12 6.50 0.65 ± 0.10 100 6.7 ～ 12
HST-14YG Φ 14 14.5 ± 0.5 ≤ 0.35 ± 0.12 7.00 0.70 ± 0.10 100 7.3 ～ 13
HST-15YG Φ 15 15.5 ± 0.6 ≤ 0.40 ± 0.12 7.50 0.75 ± 0.10 100 7.8 ～ 14
HST-16YG Φ 16 16.5 ± 0.6 ≤ 0.40 ± 0.12 8.00 0.75 ± 0.10 100 8.3 ～ 15
HST-17YG Φ 17 17.5 ± 0.6 ≤ 0.40 ± 0.12 8.50 0.75 ± 0.10 100 8.8 ～ 16
HST-18YG Φ 18 19.0 ± 0.7 ≤ 0.40 ± 0.15 9.00 0.80 ± 0.15 100 9.3 ～ 17
Heat Shrinkable Tubing
HST-20YG Φ 20 22.0 ± 0.7 ≤ 0.40 ± 0.15 10.00 0.82 ± 0.15 100 10.4 ～ 19
HST-22YG Φ 22 24.0 ± 0.7 ≤ 0.40 ± 0.15 11.00 0.82 ± 0.15 100 11.4 ～ 21
HST-25YG Φ 25 26.0 ± 0.7 ≤ 0.55 ± 0.15 12.50 1.00 ± 0.15 50 12.8 ～ 24
HST-28YG Φ 28 29.0 ± 0.7 ≤ 0.55 ± 0.15 14.00 1.00 ± 0.15 50 14.4 ～ 29
HST-30YG Φ 30 31.5 ± 0.7 ≤ 0.55 ± 0.15 15.00 1.05 ± 0.15 50 16 ～ 29
HST-35YG Φ 35 36.5 ± 0.7 ≤ 0.55 ± 0.15 17.50 1.15 ± 0.15 50 18 ～ 34
0.55 ± 0.15
HST-40YG Φ 40 41.5 ± 0.7 ≤ 20.00 1.20 ± 0.15 50 21 ～ 39
HST-45YG Φ 45 46.0 ± 0.7 ≤ 0.55 ± 0.15 25.00 1.20 ± 0.15 25 26 ～ 49
HST-50YG Φ 50 51.0 ± 0.7 ≤ 0.55 ± 0.15 25.00 1.20 ± 0.15 25 26 ～ 49
HST-60YG Φ 60 60.0 ± 0.8 ≤ 0.60 ± 0.15 31.00 1.50 ± 0.20 25 35 ～ 55
HST-70YG Φ 70 70.0 ± 0.8 ≤ 0.65 ± 0.15 36.00 1.60 ± 0.20 25 40 ～ 65
HST-80YG Φ 80 80.0 ± 0.8 ≤ 0.70 ± 0.15 41.00 1.70 ± 0.20 25 45 ～ 75
HST-90YG Φ 90 90.5 ± 0.8 ≤ 0.75 ± 0.15 46.00 1.90 ± 0.20 25 50 ～ 88
HST-100YG Φ 100 100.5 ± 0.8 0.80 ± 0.20 51.00 2.10 ± 0.20 25 55 ～ 95
≤
HST-120YG Φ 120 120.5 ± 0.8 0.85 ± 0.20 61.00 2.20 ± 0.20 15 65 ～ 115
≤
HST-150YG Φ 150 150.5 ± 0.8 0.90 ± 0.20 76.00 2.20 ± 0.20 15 80 ～ 145
≤
HST-180YG Φ 180 180.5 ± 0.8 0.95 ± 0.20 91.00 2.30 ± 0.20 15 95 ～ 175
≤
