P. 340
2
Insulated squareğ 0.5j1.5mm (22j16)Max. cunrrentğ lmax=10A
LVA1.25-110(5) 0.5 × 2.8 0.3 3.8 1.7 3.8 19.0
LVA1.25-110(8) 0.8 × 2.8 0.3 3.8 1.7 3.8 19.0
LVA1.25-187(5) 0.5 × 4.75 0.35 5.6 1.7 3.8 19.0 10.0
LVA1.25-187(8) 0.8 × 4.75 0.35 5.6 1.7 3.8 19.0
LVA1.25-205 0.5 × 5.2 0.35 6.5 1.7 3.8 20.0
LVA1.25-250 0.8 × 6.35 0.4 7.4 1.7 3.8 21.0
2
Insulated squareğ 1.5j2.5mm (16j14)Max. cunrrentğ lmax=15A
LVA2-110(5) 0.5 × 2.8 0.3 3.8 2.3 4.3 19.0
LVA2-110(8) 0.8 × 2.8 0.3 3.8 2.3 4.3 19.0
LVA2-187(5) 0.5 × 4.75 0.35 5.6 2.3 4.3 19.0 10.0
LVA2-187(8) 0.8 × 4.75 0.35 5.6 2.3 4.3 19.0
LVA2-205 0.5 ×5.2 0.35 6.5 2.3 4.3 20.0
LVA2-250 0.8 × 6.35 0.4 7.4 2.3 4.3 21.0
LVA2-312 0.8 × 8.0 0.4 9.0 2.3 4.3 23.0
2
Insulated squareğ 4j6mm (12j10)Max. cunrrentğ lmax=24A
LVA5.5-250 0.8 × 6.35 0.4 7.425.0 3.413.5 5.7
LVA5.5-312 1.2 × 9.4 0.5 10.9 3.4 5.7 29.6 13.5

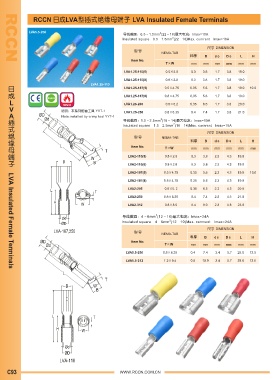

LVA Insulated Female Terminals
Insulated squareğ 0.5j1.5mm (22j16)Max. cunrrentğ lmax=10A
LVA1.25-110(5) 0.5 × 2.8 0.3 3.8 1.7 3.8 19.0
LVA1.25-110(8) 0.8 × 2.8 0.3 3.8 1.7 3.8 19.0
LVA1.25-187(5) 0.5 × 4.75 0.35 5.6 1.7 3.8 19.0 10.0
LVA1.25-187(8) 0.8 × 4.75 0.35 5.6 1.7 3.8 19.0
LVA1.25-205 0.5 × 5.2 0.35 6.5 1.7 3.8 20.0
LVA1.25-250 0.8 × 6.35 0.4 7.4 1.7 3.8 21.0
2
Insulated squareğ 1.5j2.5mm (16j14)Max. cunrrentğ lmax=15A
LVA2-110(5) 0.5 × 2.8 0.3 3.8 2.3 4.3 19.0
LVA2-110(8) 0.8 × 2.8 0.3 3.8 2.3 4.3 19.0
LVA2-187(5) 0.5 × 4.75 0.35 5.6 2.3 4.3 19.0 10.0
LVA2-187(8) 0.8 × 4.75 0.35 5.6 2.3 4.3 19.0
LVA2-205 0.5 ×5.2 0.35 6.5 2.3 4.3 20.0
LVA2-250 0.8 × 6.35 0.4 7.4 2.3 4.3 21.0
LVA2-312 0.8 × 8.0 0.4 9.0 2.3 4.3 23.0
2
Insulated squareğ 4j6mm (12j10)Max. cunrrentğ lmax=24A
LVA5.5-250 0.8 × 6.35 0.4 7.425.0 3.413.5 5.7
LVA5.5-312 1.2 × 9.4 0.5 10.9 3.4 5.7 29.6 13.5
LVA Insulated Female Terminals
