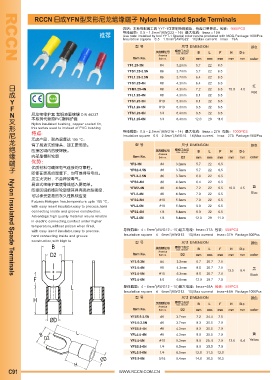

P. 338
Use note: installed by tool YYT-1 Special color can be produced with MOQ.Package:1000Pcs
Insulation squareğ 0.5j1.5mm(AWG22j 16)Max currentğ ImaxĢ 19A
2
YF1.25-3N #4 3.2mm 5.7 22 6.5
YFS1.25-3.5N #6 3.7mm 5.7 22 6.5
YFL1.25-3.5N #6 3.7mm 6.4 22 6.5
YFS1.25-4N #8 4.3mm 6.4 22 6.5
YFM1.25-4N #8 4.3mm 7.2 22 6.5 10.0 4.0
YFL1.25-4N #8 4.3mm 8.1 22 6.5
YFS1.25-5N #10 5.3mm 8.1 22 6.5
YFL1.25-5N #10 5.3mm 9.5 22 6.5
YFS1.25-6N 1/46.4mm 9.5 22 6.5
YFL1.25-6N 1/46.4mm 12.0 28 11.0
Nylon insulated bushing, copper coated tin,
this series used to instead of PVC bushing
Insulation squareğ 0.5j2.5mm (AWG16j 14)Max currentğ ImaxĢ27A Package:1000Pcs
2
YF2-3N #4 3.2mm 5.7 22 6.5
YFS2-3.5N #6 3.7mm 5.7 22 6.5
YFL2-3.5N #6 3.7mm 6.0 22 6.5
YFS2-4N #8 4.3mm 6.4 22 6.5
YFM2-4N #8 4.3mm 7.2 22 6.5 10.0 4.5
YFL2-4N #8 4.3mm 7.9 22 6.5
Futures:Halogen free,temperature upto 105 °Cđ YFS2-5N #10 5.3mm 7.9 22 6.5
with easy insert insulator,easy to process,hard YFL2-5N #10 5.3mm 9.3 22 6.5
connecting inside and groove construction. YFS2-6N 6.4mm 9.3 22 6.5
1/4
Advantage:high quality material insure reliable YFL2-6N 1/46.4mm 12.0 28 11.0
in electric connecting,conduct under higher
temperature,without poison when fired,
with easy insert insulator,easy to process. 2
hard connecting inside and groove Insulation squareğ 4j6mm (AWG12j 10)Max currentğ lmax=37A Package:500Pcs
construction,with high te
YF3.5-3N #4 3.2mm 5.7 25.7 7.0
YF3.5-4N #8 4.3mm 8.0 25.7 7.0
YF3.5-5N #10 5.3mm 8.0 25.7 7.0
YF3.5-6N 1/4 6.5mm 12.0 28.7 7.0
2
Insulation squareğ 4j6mm (AWG12j 10)Max currentğ lmax=48A Package:1000Pcs
YFS5.5-3.5N #6 3.7mm7.2 24.4 7.5
YF5.5-3.5N #6 3.7mm25.5 7.0 8.3
YFS5.5-4N #8 4.3mm25.5 7.0 8.3
YFL5.5-4N #8 4.3mm25.5 7.0 9.0
YF5.5-5N #10 5.3mm 9.0 25. 5 7.0 13.5 6.4
YFS5.5-6N 1/4 6.5mm 9.0 25.5 7.0
YFL5.5-6N 1/4 6.5mm 12.0 31.5 12.0
YF5.5-8N 5/16 8.4mm 14.0 30.5 10.5
