RCCN>>Wiring Duct Products >> RCCN FD Flexible Wiring Duct

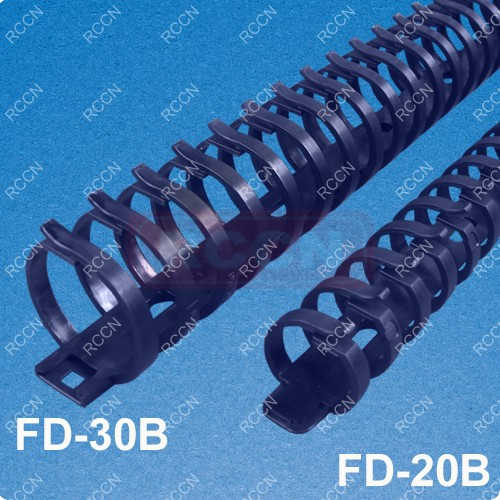

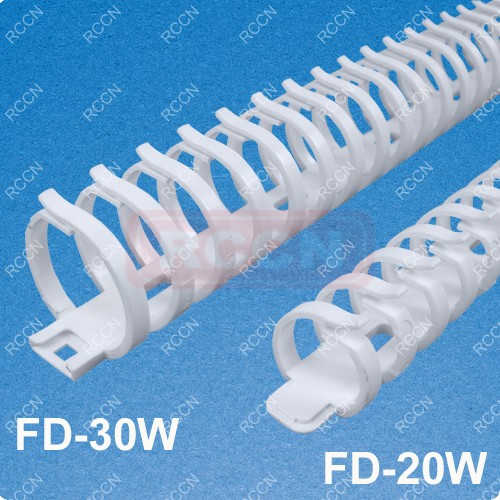

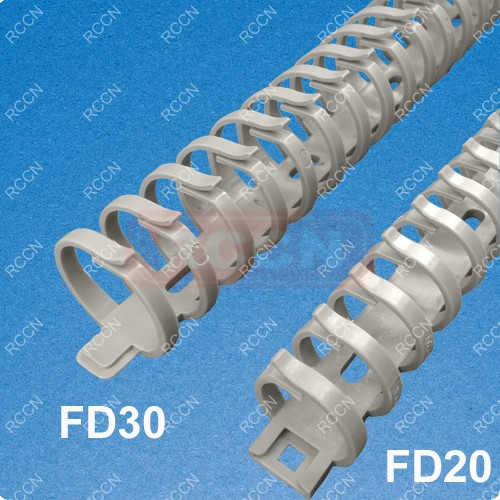

RCCN FD Flexible Wiring Duct

RCCN  FD Flexible Wiring Duct





RCCN  FD Flexible Wiring Duct



RCCN  FD Flexible Wiring Duct



Material:PA66  ,with adhensive Characteristics:Can be enlonged

 Item No. (UL94-V2)

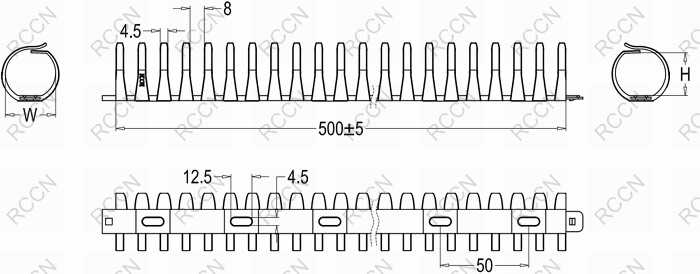

  W   H W*H (mm) Wirestobe Contained 以2平方计算   Length
gray white blue black
FD-20G FD-20W FD-20E FD-20B 20 15 15*25 5~12pcs 50CM
FD-30G FD-30W FD-30E FD-30B 30 25 25*25 10~30pcs 50CM



 Item No.    (UL94-V0)

  W   H W*H (mm) Wirestobe Contained 以2平方计算   Length
gray white blue black
FD-20GV0 FD-20WV0 FD-20EV0 FD-20BV0 20 15 15*25 5~12pcs 50CM
FD-30GV0 FD-30WV0 FD-30EV0 FD-30BV0 30 25 25*25 10~30pcs 50CM





 RCCN  FD Flexible Wiring Duct



RCCN  FD Flexible Wiring Duct





RCCN  FD Flexible Wiring Duct





RCCN  FD Flexible Wiring Duct
