RCCN>>Wiring Duct Products >> RCCN VDR Type Wide Slot Wiring Duct(black)

RCCN VDR Type Wide Slot Wiring Duct(black)

RCCN VDR Type Wide Slot Wiring Duct(black)

RCCN VDR Type Wide Slot Wiring Duct(black)



Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need
more MOQ

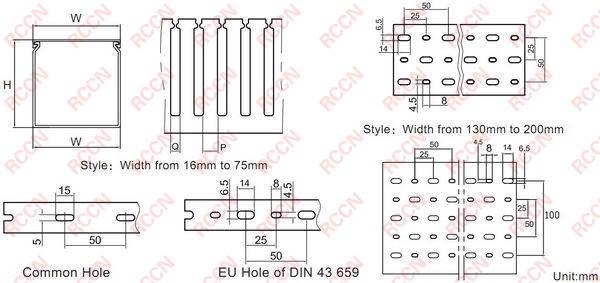

   RCCN VDR Type Wide Slot Wiring Duct(black)      RCCN VDR Type Wide Slot Wiring Duct(black)



Part No. W*H A B C D E F H T M/PACK 14AWG/PCS
VDR1616B 16*16 16 16 16 8.5 8.0 20 14.5 1.3 400 4-8
VDR2020B 20*20 20 20 20 12.5 8.0 20 18.5 1.3 200 5-12
VDR1525B 15*25 15 25 15 15.5 8.0 20 23.5 1.4 260 5-12
VDR2025B 20*25 20 25 20 15.5 8.0 20 23.5 1.4 200 5-12
VDR2525B 25*25 25 25 25 15.5 8.0 20 23.5 1.4 200 10-25
VDR1530B 15*30 15 30 15 21.5 8.0 20 31.5 1.4 180 15-25
VDR2030B 20*30 20 30 20 21.5 8.0 20 31.5 1.3 160 15-25
VDR2530B 25*30 25 30 25 20.0 8.0 20 28.5 1.4 160 15-25
VDR3030B 30*30 30 30 30 20.0 8.0 20 28.5 1.4 140 15-25
VDR4030B 40*30 40 30 40 20.0 8.0 20 28.5 1.4 120 25-35
VDR2233B 22*33 22 33 22 21.5 8.0 20 31.5 1.4 160 15-25
VDR3535B 35*35 35 35 35 22.5 8.0 20 32.5 1.4 100 40-45
VDR5035B 50*35 50 35 50 22.5 8.0 20 32.5 1.6 80 55-65
VDR2540B 25*40 25 40 25 28.5 8.0 20 38.5 1.4 112 20-25
VDR4040B 40*40 40 40 40 28.5 8.0 20 38.5 1.4 100 60-70
VDR6040B 60*40 60 40 60 27.5 8.0 20 37.8 1.6 68 100-115
VDR8040B 80*40 80 40 80 28.5 8.0 20 38.5 2.0 48 120-135
VDR10040B 100*40 100 40 100 28.5 8.0 20 38.5 2.0 40 140-165
VDR2545B 25*45 25 45 25 33.5 8.0 20 43.5 1.4 100 20-25
VDR3345B 33*45 33 45 33 33.5 8.0 20 43.5 1.5 104 40-55
VDR4545B 45*45 45 45 45 33.5 8.0 20 43.5 1.5 68 60-70
VDR6545B 65*45 65 45 65 33.5 8.0 20 43.5 1.6 68 80-90
VDR2550B 25*50 25 50 25 38.5 8.0 20 48.5 1.6 100 20-25
VDR3050B 30*50 30 50 30 38.5 8.0 20 48.5 1.6 84 30-35
VDR3550B 35*50 35 50 35 38.5 8.0 20 48.5 1.6 84 40-45
VDR4050B 40*50 40 50 40 38.5 8.0 20 48.5 1.6 68 50-60
VDR4550B 45*50 45 50 45 38.5 8.0 20 48.5 1.6 68 60-70
VDR5050B 50*50 50 50 50 38.5 8.0 20 48.5 1.6 60 80-90
VDR5550B 55*50 55 50 55 38.5 8.0 20 48.5 1.6 60 80-90
VDR6050B 60*50 60 50 60 38.5 8.0 20 48.5 1.6 52 85-95
VDR8050B 80*50 80 50 80 38.5 8.0 20 48.5 1.6 40 150-170
VDR10050B 100*50 100 50 100 38.5 8.0 20 48.5 1.6 28 200-240
VDR2060B 20*60 20 60 20 47.5 8.0 20 57.5 1.7 120 35-40
VDR2560B 25*60 25 60 25 47.5 8.0 20 57.5 1.6 120 40-45
VDR4060B 40*60 40 60 40 47.5 8.0 20 57.5 1.8 60 100-115
VDR4560B 45*60 45 60 45 47.5 8.0 20 57.5 1.8 60 113-118
VDR5060B 50*60 50 60 50 47.5 8.0 20 57.5 1.8 48 115-130
VDR6060B 60*60 60 60 60 47.5 8.0 20 57.5 2.0 48 120-135
VDR8060B 80*60 80 60 80 47.5 8.0 20 57.5 2.0 36 180-240
VDR11060B 110*60 110 60 110 47.5 8.0 20 57.5 2.0 20 220-280
VDR12060B 120*60 120 60 120 47.5 8.0 20 57.5 2.0 20 220-280
VDR2565B 25*65 25 65 25 53.5 8.0 20 63.5 1.6 88 40-45
VDR3365B 33*65 33 65 33 53.5 8.0 20 63.5 1.6 84 60-75
VDR4565B 45*65 45 65 45 53.5 8.0 20 63.5 1.6 60 110-120
VDR6565B 65*65 65 65 65 53.5 8.0 20 63.5 1.6 40 180-200
VDR5075B 50*75 50 75 50 68.5 8.0 20 73.5 2.0 56 140-180
VDR7575B 75*75 75 75 75 68.5 8.0 20 73.5 2.0 32 220-270
VDR2580B 25*80 25 80 25 68.5 8.0 20 78.5 1.8 72 100-120
VDR3080B 30*80 30 80 30 68.5 8.0 20 78.5 2.0 56 110-130
VDR3580B 35*80 35 80 35 68.5 8.0 20 78.5 2.0 56 120-140
VDR4080B 40*80 40 80 40 68.5 8.0 20 78.5 1.8 48 120-135
VDR4580B 45*80 45 80 45 68.5 8.0 20 78.5 2.0 40 130-140
VDR5080B 50*80 50 80 50 68.5 8.0 20 78.5 1.8 32 150-190
VDR5580B 55*80 55 80 55 68.5 8.0 20 78.5 2.0 32 150-190
VDR6080B 60*80 60 80 60 68.5 8.0 20 78.5 2.0 32 180-210
VDR8080B 80*80 80 80 80 68.5 8.0 20 78.5 2.0 24 240-290
VDR10080B 100*80 100 80 100 68.5 8.0 20 78.5 2.0 20 260-350
VDR12080B 120*80 120 80 120 68.5 8.0 20 78.5 2.0 16 260-350
VDR14080B 140*80 140 80 140 68.5 8.0 20 78.5 2.0 12 300-400
VDR33100B 33*100 33 100 33 88.5 8.0 20 98.5 2.0 44 110-160
VDR40100B 40*100 40 100 40 88.5 8.0 20 98.5 2.0 44 130-170
VDR50100B 50*100 50 100 50 88.5 8.0 20 98.5 2.0 32 220-250
VDR60100B 60*100 60 100 60 88.5 8.0 20 98.5 2.0 32 240-290
VDR75100B 75*100 75 100 75 88.5 8.0 20 98.5 2.0 24 260-350
VDR80100B 80*100 80 100 80 88.5 8.0 20 98.5 2.0 24 260-350
VDR100100B 100*100 100 100 100 88.5 8.0 20 98.5 2.2 16 300-400
VDR120100B 120*100 120 100 120 88.5 8.0 20 98.5 2.4 16 330-430
VDR150100B 150*100 150 100 150 88.5 8.0 20 98.5 2.4 16 350-450
VDR100130B 100*130 100 130 100 118.5 8.0 20 128.5 2.2 16 330-430
