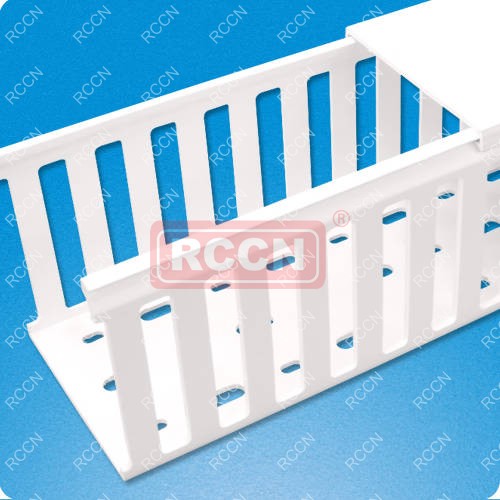

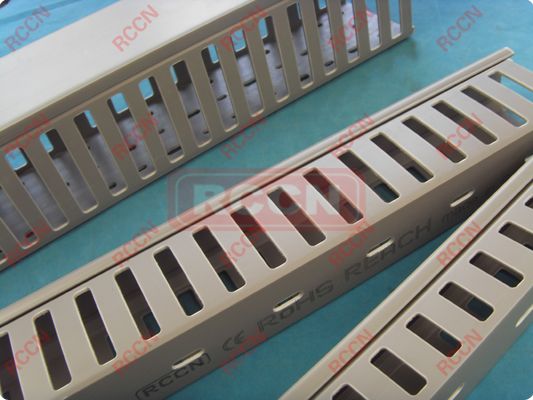

Close Wiring Duct VDC

Close Wiring Duct VDC    Close Wiring Duct VDC

Close Wiring Duct VDC



Close slot design faciliate easy installation or removal of cover.
Cut optionally wherever wire insertion/extension is necessary.

Place of Origin: China Shanghai PACK: 2M
Certified: CE...ROHS,REACH Brand Name: RCCN
Model No: VDRC
Specifications
• Usage : Fixed the bottom duct first and put wires in duct then close the cover cap.
• Feature : Composed easily, not peel, smooth match and won't be hurt.
•• Material: Made of Hardness Lead-Free PVC UL-94V0

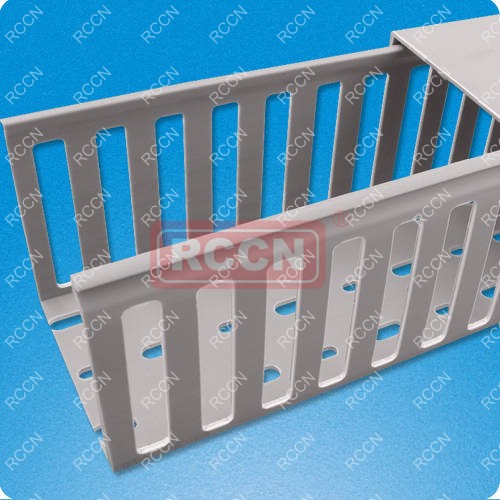

• Color: GRAY
• Mounting Method: Standard Mounting Holes
• . Recognized continuous use temperature: +122 °F (+50 °C)
Close Wiring Duct VDC Close Wiring Duct VDC Close Wiring Duct VDC Close Wiring Duct VDC   Close Wiring Duct VDC      Close Wiring Duct VDC




Part No. W*H A B C D E F H T M/PACK 14AWG/PCS
VDR2030C 20*30 20 30 20 5 8.5 20 12 1.3 160 15-25
VDR2530C 25*30 25 30 25 5 8.5 20 12 1.4 160 15-25
VDR3030C 30*30 30 30 30 5 8.5 20 12 1.4 140 15-25
VDR4030C 40*30 40 30 40 5 8.5 20 12 1.4 120 25-35
VDR2540C 25*40 25 40 25 5 8.5 20 22 1.4 112 20-25
VDR4040C 40*40 40 40 40 5 8.5 20 22 1.4 100 60-70
VDR6040C 60*40 60 40 60 5 8.5 20 22 1.6 68 100-115
VDR8040C 80*40 80 40 80 5 8.5 20 22 2.0 48 120-135
VDR10040C 100*40 100 40 100 5 8.5 20 22 2.0 40 140-165
VDR2550C 25*50 25 50 25 5 8.5 20 32 1.6 100 20-25
VDR3050C 30*50 30 50 30 5 8.5 20 32 1.6 84 30-35
VDR3550C 35*50 35 50 35 5 8.5 20 32 1.6 84 40-45
VDR4050C 40*50 40 50 40 5 8.5 20 32 1.6 68 50-60
VDR4550C 45*50 45 50 45 5 8.5 20 32 1.6 68 60-70
VDR5050C 50*50 50 50 50 5 8.5 20 32 1.6 60 80-90
VDR5550C 55*50 55 50 55 5 8.5 20 32 1.6 60 80-90
VDR6050C 60*50 60 50 60 5 8.5 20 32 1.6 52 85-95
VDR8050C 80*50 80 50 80 5 8.5 20 32 1.6 40 150-170
VDR10050C 100*50 100 50 100 5 8.5 20 32 1.6 28 200-240
VDR2060C 20*60 20 60 20 5 8.5 20 42 1.7 120 35-40
VDR2560C 25*60 25 60 25 5 8.5 20 42 1.6 120 40-45
VDR4060C 40*60 40 60 40 5 8.5 20 42 1.8 60 100-115
VDR4560C 45*60 45 60 45 5 8.5 20 42 1.8 60 113-118
VDR5060C 50*60 50 60 50 5 8.5 20 42 1.8 48 115-130
VDR6060C 60*60 60 60 60 5 8.5 20 42 2.0 48 120-135
VDR8060C 80*60 80 60 80 5 8.5 20 42 2.0 36 180-240
VDR11060C 110*60 110 60 110 5 8.5 20 42 2.0 20 220-280
VDR12060C 120*60 120 60 120 5 8.5 20 42 2.0 20 220-280
VDR2580C 25*80 25 80 25 6 10 20 60 1.8 72 100-120
VDR3080C 30*80 30 80 30 6 10 20 60 2.0 56 110-130
VDR3580C 35*80 35 80 35 6 10 20 60 2.0 56 120-140
VDR4080C 40*80 40 80 40 6 10 20 60 1.8 48 120-135
VDR4580C 45*80 45 80 45 6 10 20 60 2.0 40 130-140
VDR5080C 50*80 50 80 50 6 10 20 60 1.8 32 150-190
VDR5580C 55*80 55 80 55 6 10 20 60 2.0 32 150-190
VDR6080C 60*80 60 80 60 6 10 20 60 2.0 32 180-210
VDR8080C 80*80 80 80 80 6 10 20 60 2.0 24 240-290
VDR10080C 100*80 100 80 100 6 10 20 60 2.0 20 260-350
VDR12080C 120*80 120 80 120 6 10 20 60 2.0 16 260-350
VDR14080C 140*80 140 80 140 6 10 20 60 2.0 12 300-400
VDR33100C 33*100 33 100 33 6 10 20 78 2.0 44 110-160
VDR40100C 40*100 40 100 40 6 10 20 78 2.0 44 130-170
VDR50100C 50*100 50 100 50 6 10 20 78 2.0 32 220-250
VDR60100C 60*100 60 100 60 6 10 20 78 2.0 32 240-290
VDR75100C 75*100 75 100 75 6 10 20 78 2.0 24 260-350
VDR80100C 80*100 80 100 80 6 10 20 78 2.0 24 260-350
VDR100100C 100*100 100 100 100 6 10 20 78 2.2 16 300-400
VDR120100C 120*100 120 100 120 6 10 20 78 2.4 16 330-430
VDR150100C 150*100 150 100 150 6 10 20 78 2.4 16 350-450
VDR100130C 100*130 100 130 100 10 10 20 100 2.2 16 330-430
