RCCN SWHB Heat Resistant Wire Connector

RCCN SWHB Heat Resistant Wire Connector



RCCN SWHB Heat Resistant Wire Connector

RCCN SWHB Heat Resistant Wire Connector RCCN SWHB Heat Resistant Wire Connector
Material:high temperature resistant plastic,with spring inside
,temperature withstand up to 150°C,UL94V-0 fireproof.
Page number:B55

AWG&mm2
(square data)
refered sheet
AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03

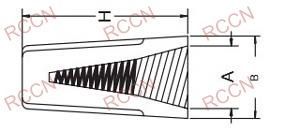

Item No.



A



B



H

SuitableWires

Color

Packing

SW-71HB 6.7 8.6 14.8

MIN#24X1+#22X1

MAX#16X2

Black 1000ppcs
SW-73HB 9.9 12 22.0

MIN#20X3

MAX#16X3+#18X1

Black
