RCCN SWY Screw On Wire Connector

RCCN SWY Screw On Wire Connector



RCCN SWY Screw On Wire Connector

RCCN SWY Screw On Wire Connector RCCN SWY Screw On Wire Connector
Material:high temperature resistant plastic,with spring inside,
temperature withstand up to 150°C,UL94V-0 fireproof.
Page number:B55

AWG&mm2
(square data)
refered sheet
AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03

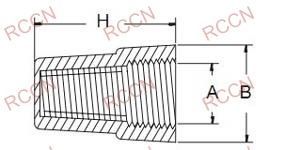

Item No.



A



B



H

SuitableWires



Color



Packing

SW-Y71 10 18 25.4 18-10AWG Yellow 100ppcs
SW-Y71 10 17.8 27.7 22-8AWG Brown
SW-Y73 12 23.1 30.5 18-AWG Red
SW-Y74 14.6 25.5 32.6 18-8AWG Gray
SW-Y76 17.8 31.7 39.5 14-6AWG Gray





 RCCN SWY Screw On Wire Connector
