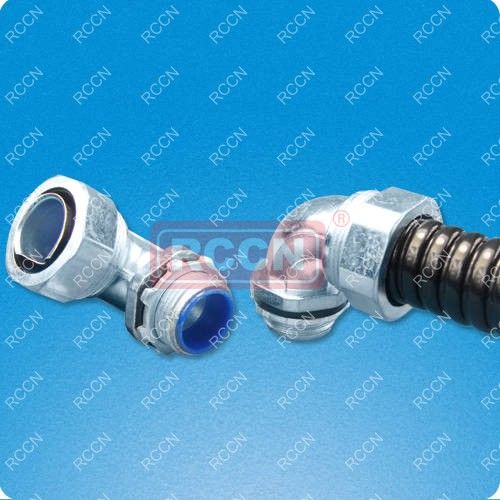

RCCN NBW Conduit Fittings-Elbow


RCCN NBW Conduit Fittings-Elbow


RCCN NBW Conduit Fittings-Elbow


RCCN NBW Conduit Fittings-Elbow

Thread:G,Metric, PG

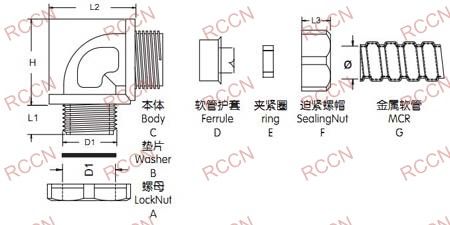

Material:A.C.F are made from zincic metal.B.E are made of NBR.D is made of iron sheet .
Certificates:CE RoHS
Color:Argentine(silver)
Protect class:IP6
Operate T.:-40°C to 100°C,120°C in a short time.
Features: 1.90°between items and box after joining,thickness added zinc coated metal
                2.special thread can be produced






Item No.

Thread
G/M/PG
suitable RCCN metal flexible conduit MCR
Thread
O.D.
D1

Thread
Length
L1

Joint
Length
L2+L3

Packing
pcs
Corresponding
item no
Metric ø British
NBG-G
NBW-04G G3/8" MCR-04 13 3/8" 16.5 8 50 30
NBW-05G G1/2" MCR-05 16 1/2" 21.3 11 54 30
NBW-06G G3/4" MCR-06 20 3/4" 26.6 14 60 30
NBW-08G G1" MCR-08 25 1" 33.4 15 70 20
NBW-10G G1 1/4" MCR-10 32 1 1/4" 42.1 15 90 20
NBW-12G G1 1/2" MCR-12 38 1 1/2" 47.8 16 100 20
NBW-16G G2" MCR-16 51 2" 59.6 18 120 10
NBW-20G G2 1/2" MCR-20 64 2 1/2" 75.1 22 160 10
NBW-24G G3" MCR-24 80 3" 87.8 22 190 5
NBW-32G G4" MCR-32 100 4" 113 24 220 5
NBG-M
NBW-04M M16*1.5 MCR-04 13 3/8" 16 8 50 30
NBW-05M M20*1.5 MCR-05 16 1/2" 20 11 54 30
NBW-06M M25*1.5 MCR-06 20 3/4" 25 14 60 30
NBW-08M M32*1.5 MCR-08 25 1" 32 15 70 20
NBW-10M M40*1.5 MCR-10 32 1 1/4" 40 15 90 20
NBW-12M M50*1.5 MCR-12 38 1 1/2" 50 16 100 20
NBW-16M M63*1.5 MCR-16 51 2" 63 18 120 10
NBG-PG
NBW-04P PG11 MCR-04 13 3/8" 18.6 8 50 30
NBW-05P PG13.5 MCR-05 16 1/2" 20.4 11 54 30
NBW-06P PG21 MCR-06 20 3/4" 28.3 14 60 30
NBW-08P PG29 MCR-08 25 1" 37.0 15 70 20
NBW-10P PG29 MCR-10 32 1 1/4" 37.0 15 90 20
NBW-12P PG36 MCR-12 38 1 1/2" 47.0 16 100 20
NBW-16P PG48 MCR-16 51 2" 59.3 18 120 10
