RCCN MG Nylon Cable Gland


RCCN MG Nylon Cable Gland



RCCN MG Nylon Cable Gland


RCCN MG Nylon Cable Gland RCCN MG Nylon Cable Gland RCCN MG Nylon Cable Gland RCCN MG Nylon Cable Gland
Thread:Metric。

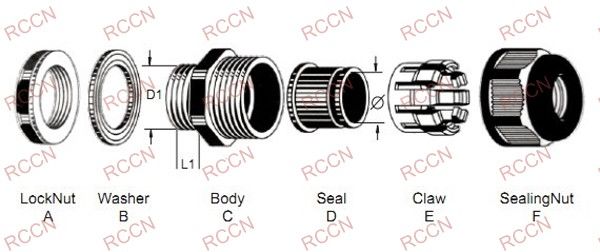

Material:A.C.D.F are made of 66 NYLON66.B.Eare made of rubber NBR。
Pretect grade is upto IP67。
Color:white, black,other color can be manufactured
Use:Make this gland through the panel hole,then fixed it with nut,make the cables through the
seal nut,
fix it with the locknut
More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for
outdoor use。



Item No.
Thread
CableRange
Thread
O.D.
D1
Panel
Mounting
Hole
Thread
Length
L1
Joint
Length
L2+L3

Spanner
size
A&F

Std.Pkg.
pcs

White

Black

MG12B-05
M12×1.5
3-5.3
12
12-12.3
9
38
19
100PCS
MG12W-08
MG12B-08
M12×1.5
4-8
12
12-12.3
9
38
19
MG16B-07
M16×1.5
4-7
16
16-16.3
15
35
22
MG16B-10
M16×1.5
6-10
16
16-16.3
15
35
22
MG20B-11
M20×1.5
6-11
20
20-20.3
15
37
27
MG20B-14
M20×1.5
9-14
20
20-20.3
15
37
27
MG25B-16
M25×1.5
10-16
25
25-25.3
15
42
33
MG25B-18
M25×1.5
13-18
25
25-25.3
15
42
33
MG32B-22
M32×1.5
15-22
32
32-32.3
15
48
41
50PCS
MG32B-25
M32×1.5
18-25
32
32-32.3
15
48
41
MG40B-25
M40×1.5
20-25
40
40-40.3
15
51
50
MG40B-30
M40×1.5
24-30
40
40-40.3
15
51
50
MG50B-32
M50×1.5
26-32
50
50-50.3
15
59
62
20PCS
MG50B-40
M50×1.5
30-40
50
50-50.3
15
59
62
MG63B-46
M63×1.5
38-46
63
63-63.3
24
65
75
MG63W-50
MG63B-50
M63×1.5
40-50
63
63-63.3
24
65
75


RCCN MG Nylon Cable Gland
