RCCN>>Product>>Cable Gland>> RCCN AG Metric Nylon Cable Gland

RCCN AG Metric Nylon Cable Gland

*Time saving, cable can be easily once inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can stand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey

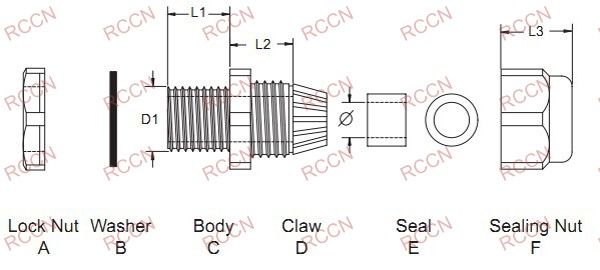

Item No.		Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg. pcs
White	Black	Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg. pcs
Short thread
AG-12W	AG-12B	M12×1.5	3-6.5	12	12-12.3	8	22	16	100PCS
AG-14W	AG-14B	M14×1.5	4-8	14	14-14.3	8	26	19
AG-16W	AG-16B	M16×1.5	4-8	16	16-16.3	8	26	19
AG-16DW	AG-16DB	M16×1.5	5-10	16	16-16.3	8	26	22
AG-18W	AG-18B	M18×1.5	5-10	18	18-18.3	8	27	22
AG-20W	AG-20B	M20×1.5	6-12	20	20-20.3	9	28	24
AG-20DW	AG-20DB	M20×1.5	8-14	20	20-20.3	9	28	27
AG-22W	AG-22B	M22×1.5	10-14	22	22-22.3	10	30	27
AG-24W	AG-24B	M24×1.5	12-15	24	24-24.4	10	30	27
AG-25W	AG-25B	M25×1.5	13-18	25	25-25.4	10	35	33
AG-27W	AG-27B	M27×1.5	13-18	27	27-27.4	10	35	33
AG-30W	AG-30B	M30×1.5	16-21	30	30-30.4	11	35	35/36
AG-32W	AG-32B	M32×1.5	16-21	32	32-32.4	11	35	36/37
AG-36W	AG-36B	M36×1.5	18-25	36	36-36.4	12	40	41/42
AG-40W	AG-40B	M40×1.5	22-32	40	40-40.4	14	48	52/53	20PCS
AG-50W	AG-50B	M50×1.5	32-38	50	50-50.4	14	49	60/61
AG-63W	AG-63B	M63×1.5	37-44	63	63-63.4	14	50	67
Long thread
AG-12LW	AG-12LB	M12×1.5	3-6.5	12	12-12.3	15	22	16	100PCS
AG-16LW	AG-16LB	M16×1.5	4-8	16	16-16.3	15	26	19
AG-18LW	AG-18LB	M18×1.5	5-10	18	18-18.3	15	27	22
AG-20LW	AG-20LB	M20×1.5	6-12	20	20-20.3	15	28	24
AG-22LW	AG-22LB	M22×1.5	10-14	22	22-22.3	15	30	27
AG-25LW	AG-25LB	M25×1.5	13-18	25	25-25.4	15	35	33
AG-32LW	AG-32LB	M32×1.5	16-21	32	32-32.4	15	35	36
AG-40LW	AG-40LB	M40×1.5	22-32	40	40-40.4	18	48	52/53	20PCS
AG-50LW	AG-50LB	M50×1.5	32-38	50	50-50.4	18	49	60/61
AG-63LW	AG-63LB	M63×1.5	37-44	63	63-63.4	18	50	67
