RCCN M-L Brass Cable Gland


RCCN M-L Brass Cable Gland


RCCN M-L Brass Cable Gland


RCCN M-L Brass Cable Gland RCCN M-L Brass Cable Gland
Thread:Metric。

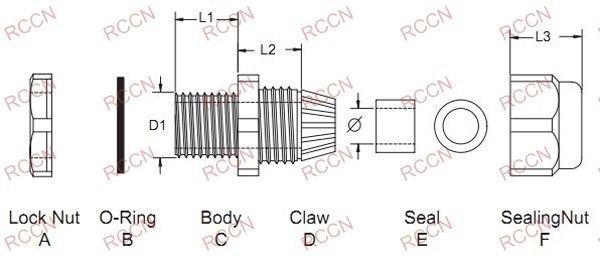

Material :A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the sui table use way
Operate temperature:-40°C to 100°C
Product characterst ics:Special design of part D and E,used wi th part F, can save your t ime,
large spread of cable seal ing,good re-tensi le,waterproof ,ashproof ,re-sal ty,
wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease
More choice:Length added gland,many other sizes of seal ,glands made of rubber EPDM for outdoor use


Item No

Thread

CableRange
Φ

Thread
O.D.
D1

Panel
Mounting
Hole

Thread
Length
L1

Joint
Length
L2+L3

Spanner
size
A&F

Std.Pkg
Pcs

M12*1.5L M12*1.5 3-6 12 12-12.3 10 19 16 100PCS
M16*1.5L M16*1.5 4-8 16 16-16.3 10 20 18
M18*1.5L M18*1.5 6-10 18 18-18.3 10 22 20
M20*1.5L M20*1.5 8-12 20 20-20.3 10 23 22
M22*1.5L M22*1.5 10-14 22 22-22.3 10 23 24
M24*1.5L M24*1.5 10-14 24 24-24.3 12 23 27
M25*1.5L M25*1.5 11-16 25 25-25.4 12 23 28 50PCS
M27*2.0L M27*2.0 13-18 27 27-27.4 12 28 30
M30*2.0L M30*2.0 14-20 30 30-30.4 12 28 32
M32*1.5L M32*1.5 15-22 32 32-32.4 12 32 36
M33*2.0L M33*2.0 15-22 33 33-33.4 12 32 36
M36*2.0L M36*2.0 18-25 36 36-36.4 12 32 42
M40*1.5L M40*1.5 22-28 40 40-40.4 15 32 45
M42*2.0L M42*2.0 24-30 42 42-42.4 15 36 48 10PCS
M48*2.0L M48*2.0 25-32 48 48-48.4 15 38 52
M50*1.5L M50*1.5 28-36 50 50-50.4 15 38 56
M54*2.0L M54*2.0 32-38 54 54-54.4 16 38 60 5PCS
M56*2.0L M56*2.0 32-38 56 56-56.4 16 38 60
M60*2.0L M60*2.0 37-44 60 60-60.4 16 38 64
M63*1.5L M63*1.5 37-44 63 63-63.4 18 38 70
M64*2.0L M64*2.0 37-44 64 64-64.4 18 38 68
