RCCN MGAL Brass Cable Gland
 |

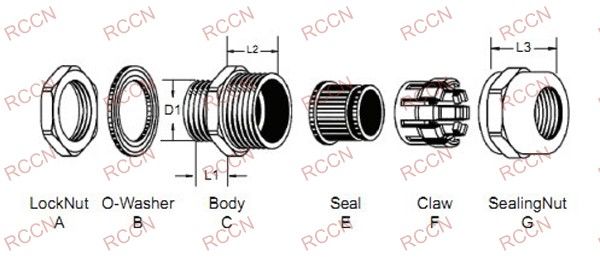

| Thread:Metric Material :A.C.F are made of copper wi th nickel ,B.E are made of NBR Cert i f icates:CE,EX Operate temperature:-50°C to 250°C Protect ion: IP68。 Product characterst ics:Special design of part D and E,used wi th part F, can save your t ime, large spread of cable seal ing,good re-tensi le,waterproof ,ashproof ,re-sal ty, wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease |
|
Item No |
Thread |
Cable |
Thread |
Panel |
Thread |
Spanner |
Std.Pkg |
| MGA12*1.5-6L | M12*1.5 | 3-6 | 12 | 12-12.3 | 6 | 16 | 100PCS |
| MGA12*1.5-8L | M12*1.5 | 4-8 | 12 | 12-12.3 | 6 | 18 | |
| MGA16*1.5-8L | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 18 | |
| MGA16*1.5-10L | M16*1.5 | 6-10 | 16 | 16-16.3 | 7 | 20 | |
| MGA18*1.5-8L | M18*1.5 | 4-8 | 18 | 18-18.3 | 8 | 18 | |
| MGA18*1.5-10L | M18*1.5 | 6-10 | 18 | 18-18.3 | 8 | 20 | |
| MGA20*1.5-8L | M20*1.5 | 4-8 | 20 | 20-20.3 | 8 | 18 | |
| MGA20*1.5-10L | M20*1.5 | 6-10 | 20 | 20-20.3 | 8 | 20 | |
| MGA22*1.5-14L | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 24 | 50PCS |
| MGA24*1.5-14L | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 24 | |
| MGA25*1.5-14L | M25*1.5 | 10-14 | 25 | 25-25.4 | 10 | 24 | |
| MGA25*1.5-18L | M25*1.5 | 13-18 | 25 | 25-25.4 | 10 | 30 | |
| MGA27*2.0-18L | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 30 | |
| MGA30*2.0-18L | M30*2.0 | 13-18 | 30 | 30-30.4 | 11 | 30 | 10PCS |
| MGA32*1.5-18L | M32*1.5 | 13-18 | 32 | 32-32.4 | 11 | 30 | |
| MGA32*1.5-25L | M32*1.5 | 18-25 | 32 | 32-32.4 | 11 | 42 | |
| MGA33*2.0-25L | M33*2.0 | 18-25 | 33 | 33-33.4 | 11 | 42 | |
| MGA36*2.0-25L | M36*2.0 | 18-25 | 36 | 36-36.4 | 11 | 42 | |
| MGA40*1.5-25L | M40*1.5 | 18-25 | 40 | 40-40.4 | 12 | 42 | |
| MGA40*1.5-32L | M40*1.5 | 25-32 | 40 | 40-40.4 | 12 | 42 | |
| MGA42*2.0-25L | M42*2.0 | 18-25 | 42 | 42-42.4 | 12 | 42 | |
| MGA48*2.0-32L | M48*2.0 | 25-32 | 48 | 48-48.4 | 13 | 52 | 5PCS |
| MGA50*1.5-32L | M50*1.5 | 25-32 | 50 | 50-50.4 | 13 | 60 | |
| MGA50*1.5-40L | M50*1.5 | 30-40 | 50 | 50-50.4 | 13 | 60 | |
| MGA54*2.0-40L | M54*2.0 | 30-40 | 54 | 54-54.4 | 14 | 60 | |
| MGA56*2.0-40L | M56*2.0 | 30-40 | 56 | 56-56.4 | 14 | 60 | |
| MGA60*2.0-54L | M60*2.0 | 44-54 | 60 | 60-60.4 | 14 | 77 | |
| MGA63*1.5-54L | M63*1.5 | 44-54 | 63 | 63-63.4 | 14 | 77 |
