RCCN PA Polyethylene Corrugated Tubing
 |
| Material:PA (Polyamide) Work Temperature:-40℃ to125℃,150℃ in short time Color:gray,white and other colors,come with MOQ Certificates: CE,ROHS,REACH. Characheristics:good luster of exterior,stronger machinism loading, perfect flexible Functions:insulated,protect cables and wires Loading ability:uneasy to change shape,reshape speedly without hurt body Where to use:Equipment,machines,electricity sets, and so on How to use:insert cables or wires to RCCN flexible conduit Remarks: special packing length come with MOQ work temperature tested according to RCCN factory test machines |
|
Item No . |
Sizes |

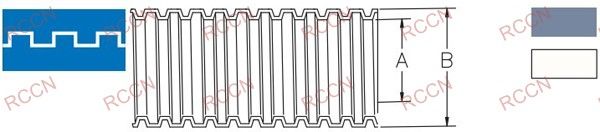

I.D. A |
O.D. B |
Packing M |
||
| Gray | Gray | White | ||||
| BG-07NG | BG-07NGV0 | BG-07NW | 1/4'' | 6.5 | 10.0 | 100M |
| BG-10NG | BG-10NGV0 | BG-10NW | 5/16'' | 10.0 | 13.0 | 100M |
| BG-12NG | BG-12NGV0 | BG-12NW | - | 12.0 | 15.8 | 100M |
| BG-15NG | BG-15NGV0 | BG-15NW | 3/8'' | 14.3 | 18.5 | 100M |
| BG-17NG | BG-17NGV0 | BG-17NW | 1/2'' | 17.0 | 21.2 | 100M |
| BG-23NG | BG-23NGV0 | BG-23NW | 3/4'' | 23.0 | 28.5 | 50M |
| BG-29NG | BG-29NGV0 | BG-29NW | 1'' | 29.0 | 34.5 | 50M |
| BG-36NG | BG-36NGV0 | BG-36NW | 1 1/4'' | 36.0 | 42.5 | 50M |
| BG-48NG | BG-48NGV0 | BG-48NW | 2'' | 48.0 | 54.5 | 25M |
