RCCN PGA-H Nylon Cable Gland
 |

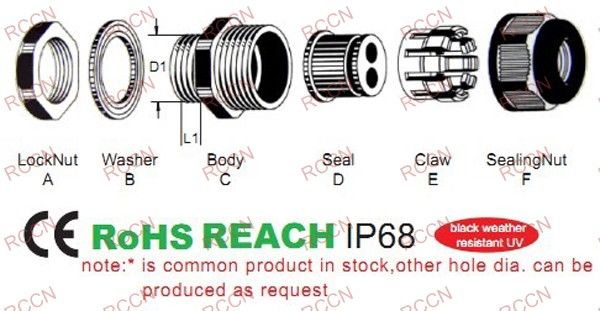

| Thread:DIN STANDARD datas：refer to PGA Features：Features：Ash and water resistant,save install time and cost |
Item No |
Thread | CableRange Φ |
Thread O.D. D1 |
Panel Mounting Hol |
Thread Length L1 |
Spanner size A&F |
|
Black |
White | ||||||
|
2孔
|
|||||||
| PG7A-H2-03B | PG7A-H2-03G | PG7 | 2-3.1 | 12.5 | 12.5-12.8 | 8 | 17/19 |
| PG9A-H2-03B | PG9A-H2-03G | PG9 | 2-3.1 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG11A-H2-03B | PG11A-H2-03G | PG11 | 2-3 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG13.5A-H2-05B | PG13.5A-H2-05G | PG13.5 | 3.5-5.2 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG16A-H2-06B | PG16A-H2-06G | PG16 | 4.3-6.1 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21AH2-08B | PG21AH2-08G | PG21 | 6.4-8.7 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG29A-H2-10B | G29A-H2-10G | PG29 | 7.7-10 | 37.0 | 37.0-37.4 | 12 | 46/41 |
|
3孔
|
|||||||
| PG7A-H3-02B | PG7A-H3-02G | PG7 | 1.6-2.6 | 12.5 | 12.5-12.8 | 8 | 17/19 |
| PG9A-H3-02B | PG9A-H3-02G | PG9 | 1.6-2.6 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG11A-H3-03B | PG11A-H3-03G | PG11 | 2-3 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG13.5A-H3-05B | PG13.5A-H3-05G | PG13.5 | 3.5-5 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG16A-H3-05B | PG16A-H3-05G | PG16 | 3.5-5.2 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21A-H3-08B | PG21A-H3-08G | PG21 | 6.2-8 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| *PG29A-H3-10B | PG29A-H3-10G | PG29 | 7.7-10 | 37.0 | 37.0-37.4 | 12 | 46/41 |
|
4孔
|
|||||||
| *PG7A-H4-02B | PG7A-H4-02G | PG7 | 1.3-2.3 | 12.5 | 12.5-12.8 | 8 | 17/19 |
| *PG9A-H4-02B | PG9A-H4-02G | PG9 | 1.3-2.3 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG11A-H4-03B | PG11A-H4-03G | PG11 | 2.4-3.4 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG13.5A-H4-04B | PG13.5A-H4-04G | PG13.5 | 3-4.2 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG16A-H4-04B | PG16A-H4-04G | PG16 | 3.4-4.8 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21A-H4-07B | PG21A-H4-07G | PG21 | 5.6-7.3 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG29A-H4-09B | PG29A-H4-09G | PG29 | 7-9 | 37.0 | 37.0-37.4 | 12 | 46/41 |
|
5孔
|
|||||||
| PG11A-H5-02B | PG11A-H5-02G | PG11 | 2-2.8 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG16AH5-03B | PG16AH5-03G | PG16 | 2-3.1 | 22.5 | 20.4-20.7 | 10.8 | 30/27 |
| PG16A-H5-04B | PG16A-H5-04G | PG16 | 3-4.1 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21A-H5-03B | PG21A-H5-03G | PG21 | 2.6-3.6 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG29A-H5-06B | PG29A-H5-06G | PG29 | 4.1-6 | 37.0 | 37.0-37.4 | 12 | 46/41 |
| PG36A-H5-08B | PG36A-H5-08G | PG36 | 6.5-8.3 | 47.0 | 47.0-47.4 | 14 | 51/52 |
|
6孔
|
|||||||
| PG11A-H6-02B | PG11A-H6-02G | PG11 | 1.4-2.1 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG13.5A-H6-03B | PG13.5A-H6-03G | PG13.5 | 2-3 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG16A-H6-03B | PG16A-H6-03G | PG16 | 2-3 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21A-H6-05B | PG21A-H6-05G | PG21 | 3.6-5.2 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG29A-H6-07B | PG29A-H6-07G | PG29 | 5.6-7 | 37.0 | 37.0-37.4 | 12 | 46/41 |
|
7孔
|
|||||||
| PG16A-H7-03B | PG16A-H7-03G | PG16 | 2-3 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21A-H7-03B | PG21A-H7-03G | PG21 | 2.6-3.6 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG29A-H7-06B | PG29A-H7-06G | PG29 | 4.6-6 | 37.0 | 37.0-37.4 | 12 | 46/41 |
|
扁孔
|
|||||||
| PG9A-4511B | PG9A-4511G | PG9 | 4.5*11 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG9A-0610B | PG9A-0610G | PG9 | 6*10 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG13.5A-0612B | PG13.5A-0612G | PG13.5 | 6.5*12 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG13.5A-0714B | PG13.5A-0714G | PG13.5 | 7*14 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG16A-0714B | PG16A-0714G | PG16 | 7*14 | 22.5 | 22.5-22.8 | 10.8 | 30/27 |
| PG21A-0822B | PG21A-0822G | PG21 | 8*22 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG36A-0529B | PG36A-0529G | PG36 | 5.5*29 | 47.0 | 47.0-47.4 | 14 | 51/52 |
