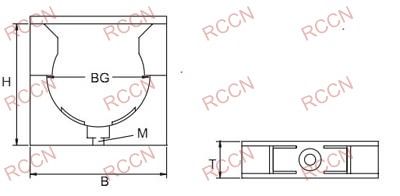

RCCN BGS Tubing Clamp With Cover
 |
| Material: Nylon 66/94V-2 Color: Black.gray Work temperature:-40°C to 105°C Features: Suitable to different conduits and cables |
Item No. |
Suit to RCCN conduit item no BG |
Width B |
Height H |
thickness T |
thread hole M |
Std.Pkg. pcs |
|
Black |
Gray |
||||||
| BGS-07B | BGS-07G | BG-07 | 30 | 23 | 12.5 | 4 | 100 |
| BGS-10B | BGS-10G | BG-10 | 30 | 23 | 12.5 | 4 | 100 |
| BGS-12B | BGS-12G | BG-12 | 30 | 23 | 12.5 | 4 | 100 |
| BGS-15B | BGS-15G | BG-15 | 35 | 30 | 15.0 | 5 | 50 |
| BGS-17B | BGS-17G | BG-17 | 35 | 30 | 15.0 | 5 | 50 |
| BGS-23B | BGS-23G | BG-23 | 42 | 38 | 16.0 | 6 | 25 |
| BGS-29B | BGS-29G | BG-29 | 51 | 43 | 16.0 | 6 | 25 |
| BGS-36B | BGS-36G | BG-36 | 61 | 51 | 16.0 | 6 | 10 |
| BGS-48B | BGS-48G | BG-48 | 74 | 64 | 19.0 | 6 | 10 |
