NBL金属软管防水接头
   |

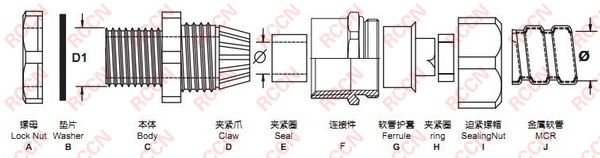

| 螺牙规格:管螺纹G,公制螺纹Metric 德制螺纹 PG 产品材质:A.C.F部位均采用黄铜制.B.E.H采用丁腈橡胶(NBR)制成.G为铁皮制成. 产品认证:欧洲CE:EN50262 美国..欧洲环保RoHS:SH549670 颜色种类:金属色 防护等级:IP67 工作温度:-40癈至100癈,瞬间可耐热达120癈. 产品特性: 1.外型美观,结构紧密,强度更高. 2.软管护套设计与软管相扣接紧之设计,配合迫紧头装配省时便利,抗拉力特强, 3.可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂. 4.除以下标准规格外,可另按需求任意变动大小及螺纹标准. 备 注:成品配带螺母A及防水垫片B. |
| 型号 Item No. |
螺牙标准 Thread G/M/PG |
适用电缆外径 | 配套日成金属软管MCR | 螺纹外径 Thread O.D. D1 |
螺纹长度 Thread Length L1 |
接合长度 Joint Length L2+L3 |
包装 Packing pcs |
||
| 对应型号 | 公制 | 英制 | |||||||
|
管螺纹 NBL-G
|
|||||||||
| NBL-03G | G3/8" | 4-8 | MCR-03 | 10 | 1/4" | 16.5 | 8 | 17 | 100 |
| NBL-04G | G3/8" | 6-10 | MCR-04 | 13 | 3/8" | 16.5 | 8 | 18 | 100 |
| NBL-05G | G1/2" | 8-12 | MCR-05 | 16 | 1/2" | 21.3 | 11 | 23 | 100 |
| NBL-06G | G3/4" | 13-18 | MCR-06 | 20 | 3/4" | 26.6 | 14 | 22 | 50 |
| NBL-08G | G1" | 15-22 | MCR-08 | 25 | 1" | 33.4 | 15 | 28 | 50 |
| NBL-10G | G1 1/4" | 22-28 | MCR-10 | 32 | 11/4" | 42.1 | 15 | 30 | 25 |
| NBL-12G | G1 1/2" | 26-32 | MCR-12 | 38 | 11/2" | 47.8 | 16 | 32 | 25 |
| NBL-16G | G2" | 37-44 | MCR-16 | 51 | 2 | 59.6 | 18 | 34 | 10 |
|
公制螺纹 NBL-M
|
|||||||||
| NBL-03M | M16*1.5 | 6-10 | MCR-03 | 10 | 1/4 | M16*1.5 | 8 | 17 | 100 |
| NBL-04M | M20*1.5 | 8-12 | MCR-04 | 13 | 3/8" | M20*1.5 | 8 | 18 | 100 |
| NBL-05M | M20*1.5 | 8-12 | MCR-05 | 16 | 1/2" | M20*1.5 | 11 | 23 | 100 |
| NBL-06M | M25*1.5 | 10-14 | MCR-06 | 20 | 3/4" | M25*1.5 | 14 | 22 | 50 |
| NBL-08M | M32*1.5 | 15-22 | MCR-08 | 25 | 1" | M32*1.5 | 15 | 28 | 50 |
| NBL-10M | M40*1.5 | 18-25 | MCR-10 | 32 | 11/4" | M40*1.5 | 15 | 30 | 25 |
| NBL-12M | M50*1.5 | 26-32 | MCR-12 | 38 | 1 1/2 | M50*1.5 | 16 | 32 | 25 |
| NBL-16M | M63*1.5 | 37-44 | MCR-16 | 51 | 2" | M63*1.5 | 18 | 34 | 10 |
| NBL-20M | M76*2 | 42-52 | MCR-20 | 64 | 2 1/2" | M76*2 | 22 | 38 | 10 |
| NBL-24M | M88*2 | 55-62 | MCR-24 | 80 | 3" | M88*2 | 22 | 46 | 5 |
| NBL-32M | M114*2 | 78-84 | MCR-32 | 100 | 4" | M114*2 | 24 | 50 | 5 |
|
德制螺纹 NBL-PG
|
|||||||||
| NBL-03P | PG9 | 4-8 | MCR-03 | 10 | 1/4" | 15.2 | 8 | 16 | 100 |
| NBL-04P | PG11 | 6-10 | MCR-04 | 13 | 3/8" | 18.6 | 9 | 17 | 100 |
| NBL-05P | PG13.5 | 8-12 | MCR-05 | 16 | 1/2" | 20.4 | 11 | 23 | 100 |
| NBL-06P | PG21 | 13-18 | MCR-06 | 20 | 3/4" | 28.3 | 14 | 23 | 50 |
| NBL-08P | PG29 | 18-25 | MCR-08 | 25 | 1" | 37.0 | 15 | 28 | 50 |
| NBL-10P | PG29 | 18-25 | MCR-10 | 32 | 1 1/4" | 37.0 | 15 | 30 | 25 |
| NBL-12P | PG36 | 26-32 | MCR-12 | 38 | 11/2" | 47.0 | 16 | 32 | 25 |
| NBL-16P | PG48 | 37-44 | MCR-16 | 51 | 2" | 59.3 | 18 | 34 | 10 |
