RCCN KS Spiral Wrapping Bands
  |
Material:Rohs approved halogen free PE,black.
Usage：Cut it in suitable length，fixed with cable tie at one side
then wrap it easily
Fuctions：protect cables and wires, good insulation.
Page number:B29 |

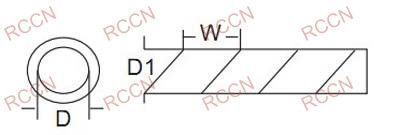

| Item No. |
Inner
dia.D |
Outer
dia.D1 |
Screw
W |
Wrapping
Range(mm)
|
Packing |
| Black |
| KS-3B |
1.5 |
3.0 |
3.0 |
1.5-10 |
50M |
| KS-4B |
3.2 |
4.5 |
5.0 |
3-10 |
- 50M
|
| KS-6B |
4.5 |
6.0 |
6-7 |
4-25 |
- 50M
|
| KS-8B |
6.0 |
8.0 |
8.5-9.5 |
6-30 |
- 50M
|
| KS-10B |
8.0 |
10 |
11-12 |
7.5-30 |
25M |
| KS-12B |
9.5 |
12 |
12-13 |
9-32 |
25M |
| KS-15B |
12.5 |
15 |
16-17 |
12-35 |
25M |
| KS-19B |
16 |
19 |
19.0-20.0 |
15-50 |
10M |
| KS-24B |
20 |
24 |
29-31 |
20-100 |
10M |
| KS-30B |
25.5 |
30 |
28-32 |
26-130 |
10M |
