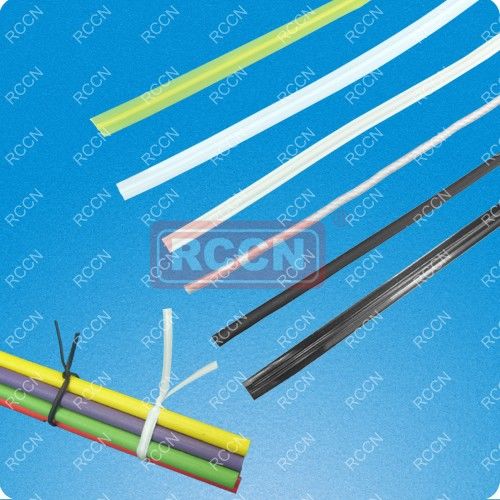

RCCN PE PVC Vinyl Tie

RCCN PE PVC Vinyl Tie

RCCN PE PVC Vinyl Tie

RCCN PE PVC Vinyl Tie RCCN PE PVC Vinyl Tie

Features:
90°C PVC coated,Operate T.:-20°C to 90°C,convenient to bind,
Color:black,white,other colors can be produced
Page number:B34

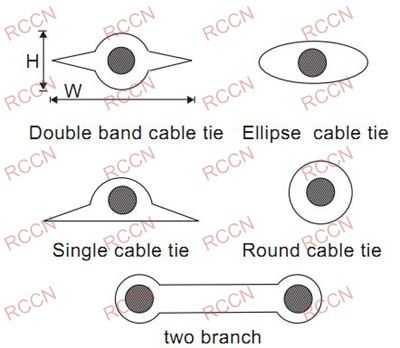

 Type Item No. H W Iron
wire
dia.
Packing
White Black
double
side
PE 2.5*1.1W PE 2.5*1.1B 1.1 2.5 0.45 1000M
PE2.8*1.1W PE2.8*1.1B 1.1 2.8 0.45
PE3.0*1.1W PE3.0*1.1B 1.1 3.0 0.45
PE4.0*1.1W PE4.0*1.1B 1.5 4.0 0.45
single
side
PE2.5*1.1W PE2.5*1.1B 1.1 2.5 0.45
PE2.8*1.1W PE2.8*1.1B 1.1 2.8 0.45
PE3.0*1.1W PE3.0*1.1B 1.1 3.0 0.45
PE4.0*1.5W PE4.0*1.5B 1.5 4.0 0.45
ellipse PE1.5*1.1W PE1.5*1.1B 1.1 2.5 0.45
PE2.0*1.5W PE2.0*1.5B 1.5 3.0 0.45
round PE1.0W PE1.0B 0.9 0.9  0.45
PE1.5W PE1.5B 1.3 1.3  0.45
PE2.0W PE2.0B 1.5 1.5  0.45
two branch PE7.0*1.3W PE7.0*1.3B 1.3 7.0 0.45
PE5.0*1.3W PE5.0*1.3B 1.3 5.0 0.45
