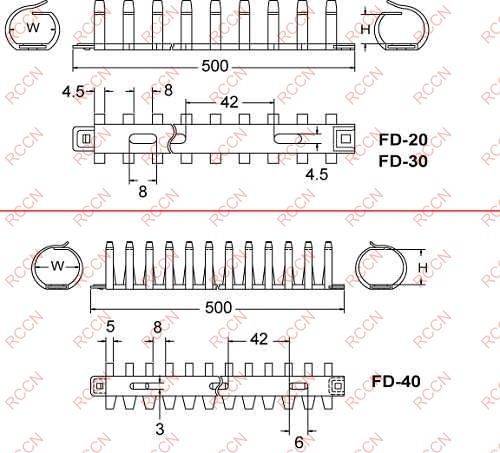

RCCN FD Flexible Wiring Duct

RCCN FD Flexible Wiring Duct





RCCN FD Flexible Wiring Duct

Material:ABS (gray),with adhensive Characteristics:Can be enlonged



Item No. (UL94-V2)

W

H


W*H
(mm)


Wirestobe Contained


Length
Gray White Blue Black
FD-20G FD-20W FD-20E FD-20B 20 25 15*25 5~12pcs 50CM
FD-30G FD-30W FD-30E FD-30B 30 25 25*25 10-30pcs 50CM
FD-40G - - - 40 35 35*35 15-35pcs 50CM
阻燃型
FD-20GVO FD-20WVO FD-20EVO FD-20BVO 20 25 15*25 5-12pcs 50CM
FD-30GVO FD-30WVO FD-30EVO FD-30BVO 30 25 25*25 10-30pcs 50CM
3M承重型
FD-20G/3M FD-20W/3M FD-20E/3M FD-20B3M 20 25 15*25 5-12pcs 50CM
FC-30G/3M FC-30W/3M FC-30E/3M FC-30B/3M 30 25 25*25 10-30pcs 50CM
3M承重阻燃型
FD-20GVO/3M FD-20WVO/3M FD-20EVO/3M FD-20BVO/3M 20 25 15*25 5-12pcs 50CM
FD-30GVO/3M FD-30WVO/3M FD-30EVO/3M FD-30BVO/3M 30 25 25*25 10-30pcs 50CM
