RCCN VDRHF Halogen Free Wiring Duct

RCCN VDRHF Halogen Free Wiring Duct     RCCN VDRHF Halogen Free Wiring Duct



RCCN VDRHF Halogen Free Wiring Duct

• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0

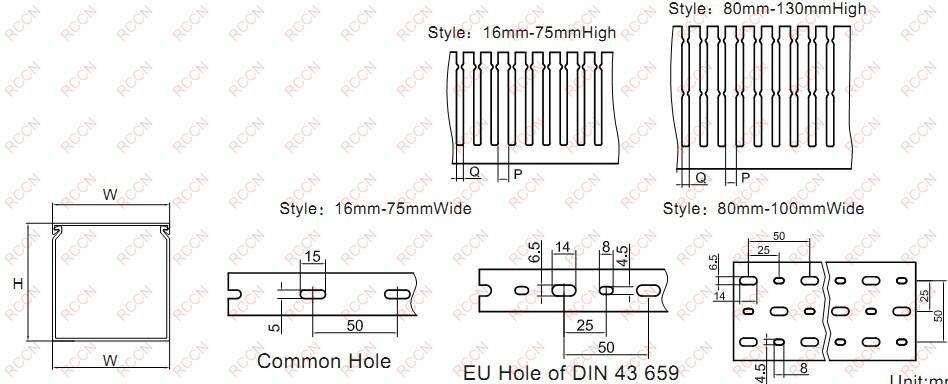

• Narrow slot/finger design
• Provided with DIN 43 659 mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths
RCCN VDRHF Halogen Free Wiring Duct




Item No.

W*H

Q

P

pack/M
Gray White Blue Black
VDR1616F/HF VDR1616FW/HF VDR1616FE/HF VDR1616FB/HF 16*16 8 10 300M
VDR2516F/HF VDR2516FW/HF VDR2516FE/HF VDR2516FB/HF 25*16 8 10 260M
VDR1520F/HF VDR1520FW/HF VDR1520FE/HF VDR1520FB/HF 15*20 8.5 12 260M
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20*20 8.5 12 240M
VDR4020F/HF VDR4020FW/HF VDR4020FE/HF VDR4020FB/HF 40*20 8 12 140M
VDR1525F/HF VDR1525FW/HF VDR1525FE/HF VDR1525FB/HF 15*25 8 12 260M
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20*25 8 12 200M
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25*25 8 12 200M
VDR3025F/HF VDR3025FW/HF VDR3025FE/HF VDR3025FB/HF 30*25 8 12 160M
VDR4025F/HF VDR4025FW/HF VDR4025FE/HF VDR4025FB/HF 40*25 8 12 100M
VDR5025F/HF VDR5025FW/HF VDR5025EF/HF VDR5025FB/HF 50*25 8 12 100M
VDR1530F/HF VDR1530FW/HF VDR1530FE/HF VDR1530FB/HF 15*30 8 12 180M
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20*30 8 12 130M
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25*30 8 12 130M
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30*30 8 12 140M
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40*30 8 12 100M
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50*30 8 12 80M
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60*30 8 12 60M
VDR2233F/HF VDR2233FW/HF VDR2233FE/HF VDR2233FB/HF 22*33 8 12 160M
VDR3333F/HF VDR3333FW/HF VDR3333FE/HF VDR3333FB/HF 33*33 8 12 160M
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20*35 8 12 100M
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35*35 8 12 112M
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50*35 8 12 88M
VDR2040F/HF VDR2040FW/HF VDR2040FE/HF VDR2040FB/HF 20*40 8 12 110M
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB/HF 25*40 8 12 112M
VDR3540F/HF VDR3540FW/HF VDR3540FE/HF VDR3540FB/HF 35*40 8 12 100M
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40*40 8 12 100M
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60*40 8 12 68M
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80*40 8 12 48M
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100*40 8 12 32M
VDR12040F/HF VDR12040FW/HF VDR12040FE/HF VDR12040FB/HF 100*40 8 12
/
VDR2545F/HF VDR2545FW/HF VDR2545FE/HF VDR2545FB/HF 25*45 8 12 104M
VDR3345F/HF VDR3345FW/HF VDR3345FE/HF VDR3345FB/HF 33*45 8 12 108M
VDR4545F/HF VDR4545FW/HF VDR4545FE/HF VDR4545FB/HF 45*45 8 12 72M
VDR6545F/HF VDR6545FW/HF VDR6545FE/HF VDR6545FB/HF 65*45 8 12 56M
VDR2050F/HF VDR2050FW/HF VDR2050FE/HF VDR2050FB/HF 20*50 8 12 100M
VDR2550F/HF VDR2550FW/HF VDR2550FE/HF VDR2550FB/HF 25*50 8 12 100M
VDR3050F/HF VDR3050FW/HF VDR3050FE/HF VDR3050FB/HF 30*50 8 12 84M
VDR3550F/HF VDR3550FW/HF VDR3550FE/HF VDR3550FB/HF 35*50 8 12 80M
VDR4050F/HF VDR4050FW/HF VDR4050FE/HF VDR4050FB/HF 40*50 8 12 68M
VDR4550F/HF VDR4550FW/HF VDR4550FE/HF VDR4550FB/HF 45*50 8 12 60M
VDR5050F/HF VDR5050FW/HF VDR5050FE/HF VDR5050FB/HF 50*50 8 12 50M
VDR5550F/HF VDR5550FW/HF VDR5550FE/HF VDR5550FB/HF 55*50 8 12 48M
VDR6050F/HF VDR6050FW/HF VDR6050FE/HF VDR6050FB/HF 60*50 8 12 48M
VDR7550F/HF VDR7550FW/HF VDR7550FE/HF VDR7550FB/HF 75*50 8 12 40M
VDR8050F/HF VDR8050FW/HF VDR8050FE/HF VDR8050FB/HF 80*50 8 12 40M
VDR10050F/HF VDR10050FW/HF VDR10050FE/HF VDR10050FB/HF 100*50 8 12 26M
VDR12555F/HF VDR12555FW/HF VDR12555FE/HF VDR12555FB/HF 125*55 8 12 26M
VDR2060F/HF VDR2060FW/HF VDR2060FE/HF VDR2060FB/HF 20*60 8 12 100M
VDR2560F/HF VDR2560FW/HF VDR2560FE/HF VDR2560FB/HF 25*60 8 12 100M
VDR3060F/HF VDR3060FW/HF VDR3060FE/HF VDR3060FB/HF 30*60 8 12 80M
VDR3560F/HF VDR3560FW/HF VDR3560FE/HF VDR3560FB/HF 35*60 8 12 78M
VDR4060F/HF VDR4060FW/HF VDR4060FE/HF VDR4060FB/HF 40*60 8 12 60M
VDR4560F/HF VDR4560FW/HF VDR4560FE/HF VDR4560FB/HF 45*60 8 12 30M
VDR5060F/HF VDR5060FW/HF VDR5060FE/HF VDR5060FB/HF 50*60 8 12 60M
VDR6060F/HF VDR6060FW/HF VDR6060FE/HF VDR6060FB/HF 60*60 8 12 48M
VDR8060F/HF VDR8060FW/HF VDR8060FE/HF VDR8060FB/HF 80*60 8 12 36M
VDR10060F/HF VDR10060FW/HF VDR10060FE/HF VDR10060FB/HF 100*60 8 12 28M
VDR11060F/HF VDR11060FW/HF VDR11060FE/HF VDR11060FB/HF 110*60 8 12 48M
VDR12060F/HF VDR12060FW/HF VDR12060FE/HF VDR12060FB/HF 120*60 8 12 48M
VDR15060F/HF VDR15060FW/HF VDR15060FE/HF VDR15060FB/HF 150*60 8 12 16M
VDR2565F/HF VDR2565FW/HF VDR2565FE/HF VDR2565FB/HF 25*65 8 12 88M
VDR3365F/HF VDR3365FW/HF VDR3365FE/HF VDR3365FB/HF 33*65 8 12 80M
VDR4565F/HF VDR4565FW/HF VDR4565FE/HF VDR4565FB/HF 45*65 8 12 52M
VDR6565F/HF VDR6565FW/HF VDR6565FE/HF VDR6565FB/HF 65*65 8 12 44M
VDR7265F/HF VDR7265FW/HF VDR7265FE/HF VDR7265FB/HF 72*65 8 12 42M
VDR2575F/HF VDR2575FW/HF VDR2575FE/HF VDR2575FB/HF 25*75 8 12
/
VDR5075F/HF VDR5075FW/HF VDR5075FE/HF VDR5075FB/HF 50*75 8 12 42M
VDR7575F/HF VDR7575FW/HF VDR7575FE/HF VDR7575FB/HF 75*75 8 12 40M
VDR10075F/HF VDR10075FW/HF VDR10075FE/HF VDR10075FB/HF 100*75 8 12 24M
VDR2580F/HF VDR2580FW/HF VDR2580FE/HF VDR2580FB/HF 25*80 8 12 72M
VDR3080F/HF VDR3080FW/HF VDR3080FE/HF VDR3080FB/HF 30*80 8 12 56M
VDR3580F/HF VDR3580FW/HF VDR3580FE/HF VDR3580FB/HF 35*80 8 12 56M
VDR4080F/HF VDR4080FW/HF VDR4080FE/HF VDR4080FB/HF 40*80 8 12 48M
VDR4580F/HF VDR4580FW/HF VDR4580FE/HF VDR4580FB/HF 45*80 8 12 40M
VDR5080F/HF VDR5080FW/HF VDR5080FE/HF VDR5080FB/HF 50*80 8 12 40M
VDR5580F/HF VDR5580FW/HF VDR5580FE/HF VDR5580FB/HF 55*80 8 12 32M
VDR6080F/HF VDR6080FW/HF VDR6080FE/HF VDR6080FB/HF 60*80 8 12 32M
VDR8080F/HF VDR8080FW/HF VDR8080FE/HF VDR8080FB/HF 80*80 8 12 24M
VDR10080F/HF VDR10080FW/HF VDR10080FE/HF VDR10080FB/HF 100*80 8 12 24M
VDR12080F/HF VDR12080FW/HF VDR12080FE/HF VDR12080FB/HF 120*80 8 12 16M
VDR14080F/HF VDR14080FW/HF VDR14080FE/HF VDR14080FB/HF 140*80 8 12 16M
VDR16080F/HF VDR16080FW/HF VDR16080FE/HF VDR16080FB/HF 160*80 8 12
/
VDR25100F/HF VDR25100FW/HF VDR25100FE/HF VDR25100FB/HF 25*100 8 12 60M
VDR33100F/HF VDR33100FW/HF VDR33100FE/HF VDR33100FB/HF 33*100 8 12 44M
VDR40100F/HF VDR40100FW/HF VDR40100FE/HF VDR40100FB/HF 40*100 8 12 40M
VDR50100F/HF VDR50100FW/HF VDR50100FE/HF VDR50100FB/HF 50*100 8 12 40M
VDR60100F/HF VDR60100FW/HF VDR60100FE/HF VDR60100FB/HF 60*100 8 12 32M
VDR70100F/HF VDR70100FW/HF VDR70100FE/HF VDR70100FB/HF 70*100 8 12 24M
VDR75100F/HF VDR75100FW/HF VDR75100FE/HF VDR75100FB/HF 75*100 8 12 24M
VDR80100F/HF VDR80100FW/HF VDR80100FE/HF VDR80100FB/HF 80*100 8 12 24M
VDR100100F/HF VDR100100FW/HF VDR100100FE/HF VDR100100FB/HF 100*100 8 12 24M
VDR120100F/HF VDR120100FW/HF VDR120100FE/HF VDR120100FB/HF 120*100 8 12 16M
VDR150100F/HF VDR150100FW/HF VDR150100FE/HF VDR150100FB/HF 150*100 8 12 16M
VDR160100F/HF VDR160100FW/HF VDR160100FE/HF VDR160100FB/HF 160*100 8 12
/
VDR100130F/HF VDR100130FW/HF VDR100130FE/HF VDR100130FB/HF 100*130 8 12
/
VDR200100F/HF VDR200100FW/HF VDR200100FE/HF VDR200100FB/HF 200*100 8 12 16M
VDR200150F/HF VDR200150FW/HF VDR200150FE/HF VDR200150FB/HF 200*150 8 12 16M






Item No.



W*H



Q



P

Wire capability/2.0sp
Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 3-10pcs
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 8-12pcs
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 8-12pcs
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 10-20pcs
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 15-30pcs
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 5-15pcs
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 5-15pcs
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 10-25pcs
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 12-28pcs
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 20-35pcs
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 12-28pcs
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 8-15pcs
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 25-35pcs
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 25-35pcs
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 35-35pcs
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 30-40pcs
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 40-50pcs
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 50-60pcs
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 25-35pcs
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 35-45pcs
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 30-40pcs
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 40-50pcs
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 40-60pcs
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 16-22pcs
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 20-35pcs
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 30-45pcs
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 60-70pcs
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 100-115pcs
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 120-135pcs
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 120-135pcs
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6 140-155pcs
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 20-25pcs
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 40-55pcs
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 60-70pcs
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 110-120pcs
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 18-28pcs
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 20-30pcs
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 25-40pcs
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 40-60pcs
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 60-70pcs
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 70-80pcs
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 80-90pcs
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 85-95pcs
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 100-120pcs
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 150-170pcs
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 160-180pcs
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 200-250pcs
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 220-270pcs
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 35-40pcs
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 40-50pcs
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 50-80pcs
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 90-105pcs
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 100-115pcs
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 110-125pcs
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 120-135pcs
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 120-135pcs
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 180-210pcs
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 240-290pcs
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 250-300pcs
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 260-320pcs
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 300-360pcs
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 40-50pcs
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 40-70pcs
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 110-120pcs
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 180-200pcs
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 180-230pcs
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6 180-210pcs
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 180-210pcs
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 200-240pcs
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 250-290pcs
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 100-120pcs
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 110-125pcs
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 110-130pcs
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 140-160pcs
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 140-160pcs
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 160-180pcs
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 160-180pcs
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 180-210pcs
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 240-290pcs
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 260-350pcs
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 280-380pcs
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 350-450pcs
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6 450-550pcs
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 110-160pcs
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 130-165pcs
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 130-175pcs
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 220-250pcs
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 240-290pcs
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 250-340pcs
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 260-350pcs
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 260-350pcs
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 300-400pcs
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 350-450pcs
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 400-650pcs
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6 500-750pcs
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6 350-450pcs
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 600-800pcs
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 900-1200pcs




RCCN VDRHF Halogen Free Wiring Duct





RCCN VDRHF Halogen Free Wiring Duct  RCCN VDRHF Halogen Free Wiring Duct




RCCN  Din Rails







RCCN VDRHF Halogen Free Wiring Duct        RCCN VDRHF Halogen Free Wiring Duct


RCCN VDRHF Halogen Free Wiring Duct

RCCN VDRHF Halogen Free Wiring Duct



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M



 RCCN VDRHF Halogen Free Wiring Duct RCCN VDRHF Halogen Free Wiring Duct

RCCN VDRHF Halogen Free Wiring Duct



RCCN VDRHF Halogen Free Wiring Duct




0
