Narrow Slot Wiring Duct HVDR

Narrow Slot Wiring Duct HVDR



Narrow Slot Wiring Duct HVDR

• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0
• Narrow slot/finger design

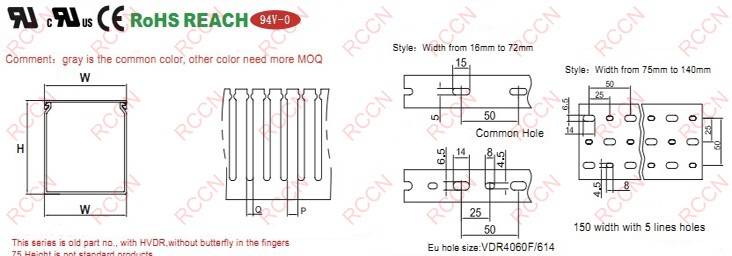

• Provided with DIN 43 659 mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths
Narrow Slot Wiring Duct HVDR




Item No.



W*H



Q



P

Wire capability/2.0sp



pack/M
Gray White Blue Black
HVDR1616 HVDR1616W HVDR1616E HVDR1616B 16*16 5 8 3~10pcs

300M
HVDR2516 HVDR2516W HVDR2516E HVDR2516B 25*16 5 8 8-12pcs 100M
HVDR1520 HVDR1520W HVDR1520E HVDR1520B 15*20 5 8 8-12pcs 260M
HVDR2020 HVDR2020W HVDR2020E HVDR2020B 20*20 5 8 10-20pcs 240M
HVDR4020 HVDR4020W HVDR4020E HVDR4020B 40*20 5 8 15-30pcs 140M
HVDR1525 HVDR1525W HVDR1525E HVDR1525B 15*25 5 8 5~15pcs 260M
HVDR2025 HVDR2025W HVDR2025E HVDR2025B 20*20 5 8 5~15pcs 200M
HVDR2525 HVDR2525W HVDR2525E HVDR2525B 25*25 5 8 10~25pcs 200M
HVDR3025 HVDR3025W HVDR3025E HVDR3025B 30*25 5 8 12~28pcs 160M
HVDR4025 HVDR4025W HVDR4025E HVDR4025B 40*25 5 8 20-35pcs 100M
HVDR5025 HVDR5025W HVDR5025E HVDR5025B 50*25 5 8 12-28pcs 100M
HVDR1530 HVDR1530W HVDR1530E HVDR1530B 15*30 5 8 8-15pcs 180M
HVDR2030 HVDR2030W HVDR2030E HVDR2030B 20*30 5 8 25-35pcs 160M
HVDR2530 HVDR2530W HVDR2530E HVDR2530B 25*30 5 8 25~35pcs 160M
HVDR3030 HVDR3030W HVDR3030E HVDR3030B 30*30 5 8 25~35pcs 140M
HVDR4030 HVDR4030W HVDR4030E HVDR4030B 40*30 5 8 30~40pcs 100M
HVDR5030 HVDR5030W HVDR5030E HVDR5030B 50*30 5 8 40-50pcs 80M
HVDR6030 HVDR6030W HVDR6030E HVDR6030B 60.30 5 8 50-60pcs 60M
HVDR2233 HVDR2233W HVDR2233E HVDR2233B 22.33 5 8 25-35pcs 160M
HVDR3333 HVDR3333W HVDR3333E HVDR3333B 33.33 5 8 35-45pcs 160M
HVDR2035 HVDR2035W HVDR2035E HVDR2035B 20.35 5 8 30-40pcs 100M
HVDR3535 HVDR3535W HVDR3535E HVDR3535B 35*35 5 8 35~45pcs 112M
HVDR5035 HVDR5035W HVDR5035E HVDR5035B 50*35 5 8 40~60pcs 88M
HVDR2040 HVDR2040W HVDR2040E HVDR2040B 20*40 5 8 16-22pcs 11M
HVDR2540 HVDR2540W HVDR2540E HVDR2540B 25*40 5 8 20~25pcs 112M
HVDR3540 HVDR3540W HVDR3540E HVDR3540B 35*40 5 8 30-45pcs 100M
HVDR4040 HVDR4040W HVDR4040E HVDR4040B 40*40 5 8 60~70pcs 100M
HVDR6040 HVDR6040W HVDR6040E HVDR6040B 60*40 5 8 100~115pcs 68M
HVDR8040 HVDR8040W HVDR8040E HVDR8040B 80*40 5 8 120~135pcs 48M
HVDR10040 HVDR10040W HVDR10040E HVDR10040B 100*40 5 8 120~135pcs 32M
HVDR12040 HVDR12040W HVDR12040E HVDR12040B 120*40 5 8 140-155pcs
/
HVDR2545 HVDR2545W HVDR2545E HVDR2545B 25*45 5 8 20~25pcs 104M
HVDR3345 HVDR3345W HVDR3345E HVDR3345B 33*45 5 8 40~55pcs 108M
HVDR4545 HVDR4545W HVDR4545E HVDR4545B 45*45 5 8 60~70pcs 72M
HVDR6545 HVDR6545W HVDR6545E HVDR6545B 65*45 5 8 110~120pcs 56M
HVDR2050 HVDR2050W HVDR2050E HVDR2050B 20*50 5 8 18-28pcs 100M
HVDR2550 HVDR2550W HVDR2550E HVDR2550B 25*50 5 8 20~30pcs 100M
HVDR3050 HVDR3050W HVDR3050E HVDR3050B 30*50 5 8 25~40pcs 84M
HVDR3550 HVDR3550W HVDR3550E HVDR3550B 35*50 5 8 40~60pcs 80M
HVDR4050 HVDR4050W HVDR4050E HVDR4050B 40*50 5 8 60~70pcs 68M
HVDR4550 HVDR4550W HVDR4550E HVDR4550B 45*50 5 8 70~80pcs 60M
HVDR5050 HVDR5050W HVDR5050E HVDR5050B 50*50 5 8 80~90pcs 50M
HVDR5550 HVDR5550W HVDR5550E HVDR5550B 55*50 5 8 85-95pcs 48M
HVDR6050 HVDR6050W HVDR6050E HVDR6050B 60*50 5 8 100~120pcs 48M
HVDR7550 HVDR7550W HVDR7550E HVDR7550B 75*50 5 8 150-170pcs 40M
HVDR8050 HVDR8050W HVDR8050E HVDR8050B 80*50 5 8 160~180pcs 40M
HVDR10050 HVDR10050W HVDR1005E HVDR10050B 100*50 5 8 200~250pcs 26M
HVDR12555 HVDR12555W HVDR12555E HVDR12555B 125*55 5 8 220-270pcs 20M
HVDR2060 HVDR2060W HVDR2060E HVDR2060B 20*60 5 8 35-45pcs 100M
HVDR2560 HVDR2560W HVDR2560E HVDR2560B 25*60 5 8 40~50pcs 100M
HVDR3060 HVDR3060W HVDR3060E HVDR3060B 30*60 5 8 60~80pcs 80M
HVDR3560 HVDR3560W HVDR3560E HVDR3560B 35*60 5 8 90-105pcs 78M
HVDR4060 HVDR4060W HVDR4060E HVDR4060B 40*60 5 8 100~115pcs 60M
HVDR4560 HVDR4560W HVDR4560E HVDR4560B 45*60 5 8 110~125pcs 30M
HVDR5060 HVDR5060W HVDR5060E HVDR5060B 50*60 5 8 120~135pcs 60M
HVDR6060 HVDR6060W HVDR6060E HVDR6060B 60*60 5 8 120~135pcs 48M
HVDR8060 HVDR8060W HVDR8060E HVDR8060B 80*60 5 8 180~210pcs 36M
HVDR10060 HVDR10060W HVDR10060E HVDR10060B 100*60 5 8 240~290pcs 28M
HVDR11060 HVDR11060W HVDR11060E HVDR11060B 110*60 5 8 250~300pcs 48M
HVDR12060 HVDR12060 HVDR12060 HVDR12060 120*60 5 8 260-320pcs 48M
HVDR15060 HVDR15060 HVDR15060 HVDR15060 150*60 5 8 300-360pcs 16M
HVDR2565 HVDR2565W HVDR2565E HVDR2565B 25*65 5 8 40~50pcs 88M
HVDR3365 HVDR3365W HVDR3365E HVDR3365B 33*65 5 8 40~70pcs 80M
HVDR4565 HVDR4565W HVDR4565E HVDR4565B 45*65 5 8 110~120pcs 52M
HVDR6565 HVDR6565W HVDR6565E HVDR6565B 65*65 5 8 180~200pcs 44M
HVDR7265 HVDR7265W HVDR7265E HVDR7265B 72*65 5 8 180-230pcs 42M
HVDR5075 HVDR5075W HVDR5075E HVDR5075B 50*75 5 8 180-210pcs 42M
HVDR7575 HVDR7575W HVDR7575E HVDR7575B 75*75 5 8 200-240PCS 40M
HVDR10075 HVDR10075W HVDR10075E HVDR10075B 100*75 5 8 250-290PCS 24M
HVDR2580 HVDR2580W HVDR2580E HVDR2580B 25*80 5 8 100~120pcs 72M
HVDR3080 HVDR3080W HVDR3080E HVDR3080B 30*80 5 8 110~125pcs 56M
HVDR3580 HVDR3580W HVDR3580E HVDR3580B 35*80 5 8 110~130pcs 56M
HVDR4080 HVDR4080W HVDR4080E HVDR4080B 40*80 5 8 140~160pcs 48M
HVDR4580 HVDR4580W HVDR4580E HVDR4580B 45*80 5 8 140~160pcs 40M
HVDR5080 HVDR5080W HVDR5080E HVDR5080B 50*80 5 8 160~180pcs 40M
HVDR5580 HVDR5580W HVDR5580E HVDR5580B 55*80 5 8 160~180pcs 32M
HVDR6080 HVDR6080W HVDR6080E HVDR6080B 60*80 5 8 180~210pcs 32M
HVDR8080 HVDR8080W HVDR8080E HVDR8080B 80*80 5 8 240~290pcs 24M
HVDR10080 HVDR10080W HVDR10080E HVDR10080B 100*80 5 8 260~350pcs 24M
HVDR12080 HVDR12080W HVDR12080E HVDR12080B 120*80 5 8 280~380pcs 16M
HVDR14080 HVDR14080W HVDR14080E HVDR14080B 140*80 5 8 350~450pcs 16M
HVDR25100 HVDR25100W HVDR25100E HVDR25100B 25*100 5 8 110~160pcs 60M
HVDR33100 HVDR33100W HVDR33100E HVDR33100B 33*100 5 8 130~175pcs 44M
HVDR40100 HVDR40100W HVDR40100E HVDR40100B 40*100 5 8 130~175pcs 40M
HVDR50100 HVDR50100W HVDR50100E HVDR50100B 50*100 5 8 220~250pcs 40M
HVDR60100 HVDR60100W HVDR60100E HVDR60100B 60*100 5 8 240~290pcs 32M
HVDR70100 HVDR70100W HVDR70100E HVDR70100B 40*100 5 8 250-340pcs 24M
HVDR75100 HVDR75100W HVDR75100E HVDR75100B 75*100 5 8 260~350pcs 24M
HVDR80100 HVDR80100W HVDR80100E HVDR80100B 80*100 5 8 260~350pcs 24M
HVDR100100 HVDR100100W HVDR100100E HVDR100100B 100*100 5 8 300-400pcs 24M
HVDR120100 HVDR120100W HVDR120100E HVDR120100B 120*100 5 8 350-450pcs 16M
HVDR150100 HVDR150100W HVDR150100E HVDR150100B 150*100 5 8 400-650pcs 16M
HVDR100130 HVDR100130W HVDR100130E HVDR100130B 100*130 5 8 350-450pcs 24M
HVDR200100 HVDR200100W HVDR200100E HVDR200100B 200*100 5 8 600-800pcs 16M
HVDR200150 HVDR200150W HVDR200150E HVDR200150B 200*150 5 8 900-1200pcs 16M






Item No.



W*H



Q



P

Wire capability/2.0sp
Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 3-10pcs
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 8-12pcs
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 8-12pcs
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 10-20pcs
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 15-30pcs
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 5-15pcs
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 5-15pcs
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 10-25pcs
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 12-28pcs
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 20-35pcs
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 12-28pcs
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 8-15pcs
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 25-35pcs
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 25-35pcs
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 35-35pcs
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 30-40pcs
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 40-50pcs
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 50-60pcs
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 25-35pcs
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 35-45pcs
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 30-40pcs
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 40-50pcs
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 40-60pcs
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 16-22pcs
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 20-35pcs
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 30-45pcs
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 60-70pcs
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 100-115pcs
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 120-135pcs
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 120-135pcs
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6 140-155pcs
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 20-25pcs
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 40-55pcs
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 60-70pcs
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 110-120pcs
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 18-28pcs
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 20-30pcs
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 25-40pcs
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 40-60pcs
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 60-70pcs
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 70-80pcs
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 80-90pcs
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 85-95pcs
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 100-120pcs
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 150-170pcs
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 160-180pcs
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 200-250pcs
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 220-270pcs
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 35-40pcs
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 40-50pcs
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 50-80pcs
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 90-105pcs
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 100-115pcs
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 110-125pcs
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 120-135pcs
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 120-135pcs
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 180-210pcs
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 240-290pcs
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 250-300pcs
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 260-320pcs
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 300-360pcs
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 40-50pcs
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 40-70pcs
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 110-120pcs
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 180-200pcs
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 180-230pcs
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6 180-210pcs
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 180-210pcs
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 200-240pcs
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 250-290pcs
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 100-120pcs
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 110-125pcs
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 110-130pcs
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 140-160pcs
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 140-160pcs
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 160-180pcs
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 160-180pcs
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 180-210pcs
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 240-290pcs
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 260-350pcs
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 280-380pcs
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 350-450pcs
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6 450-550pcs
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 110-160pcs
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 130-165pcs
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 130-175pcs
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 220-250pcs
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 240-290pcs
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 250-340pcs
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 260-350pcs
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 260-350pcs
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 300-400pcs
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 350-450pcs
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 400-650pcs
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6 500-750pcs
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6 350-450pcs
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 600-800pcs
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 900-1200pcs




Narrow Slot Wiring Duct HVDR





Narrow Slot Wiring Duct HVDR  Narrow Slot Wiring Duct HVDR




RCCN  Din Rails







Narrow Slot Wiring Duct HVDR        Narrow Slot Wiring Duct HVDR


Narrow Slot Wiring Duct HVDR

Narrow Slot Wiring Duct HVDR



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M



 Narrow Slot Wiring Duct HVDR Narrow Slot Wiring Duct HVDR

Narrow Slot Wiring Duct HVDR



Narrow Slot Wiring Duct HVDR




0
