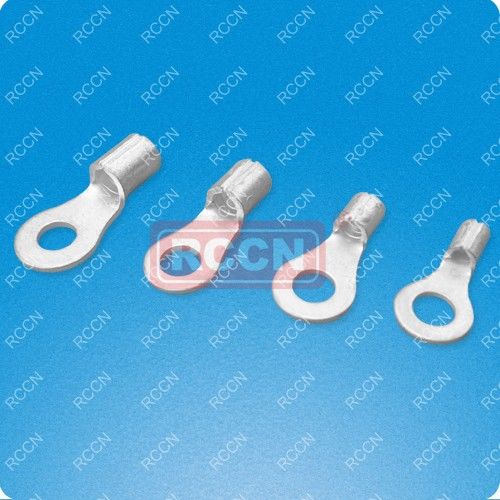

Circular Naked Terminal (R-Type)

Circular Naked Terminal (R-Type)

Circular Naked Terminal (R-Type)

Circular Naked Terminal (R-Type)

Cable size: 0.5～1.5mm2（A.W.G.22～16) max current:Imax=19A
material:purple copper　 thickness:0.75mm

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 1.25-3	#4	3.2mm	5.5	12.5	5.0	4.8	3.4	1.7
RS 1.25-3.5	#6	3.7mm	5.5	12.5	5.0
RM 1.25-3.5	#6	3.7mm	6.6	14.4	6.3
RL 1.25-3.5	#6	3.7mm	8.0	15.8	7.0
RS 1.25-4	#8	4.3mm	6.6	14.4	6.3
RL 1.25-4	#8	4.3mm	8.0	15.8	7.0
R 1.25-5	#10	5.3mm	8.0	15.8	7.0
RL1.25-5	#10	5.3mm	9.8	18.0	8.5
RS1.25-6	1/4	6.4mm	9.8	18.0	8.5
R 1.25-6	1/4	6.4mm	11.6	21.8	11.0
R 1.25-8	5/16	8.4mm	11.6	21.8	11.0
R 1.25-10	3/8	10.5mm	13.6	25.5	13.9
R 1.25-12	1/2	13.0mm	19.2	30.4	16.0

Cable size: 1.5～2.5mm2（A.W.G.16～14) max current:Imax=27A
material:purple copper　 thickness:0.8mm

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 2-3	#4	3.2mm	6.6	12.8	4.8	4.8	4.1	2.3
RS 2-3.5	#6	3.7mm	6.6	12.8	4.8
RM 2-3.5	#6	3.7mm	6.6	14.0	6.3
RL 2-3.5	#6	3.7mm	8.5	16.5	7.4
RS 2-4	#8	4.3mm	6.6	14.4	6.3
RL 2-4	#8	4.3mm	8.5	16.5	7.4
RS 2-5	#10	5.3mm	8.5	16.5	7.4
RL 2-5	#10	5.3mm	9.5	17.0	7.4
R 2-6	1/4	6.5mm	12.0	21.8	11.0
R 2-8	5/16	8.4mm	12.0	21.8	11.0
R 2-10	3/8	10.5mm	13.6	25.5	13.9
R 2-12	1/2	13.0mm	19.2	30.4	16.0

Cable size: 2.5～4mm2（A.W.G.14～12) max current:Imax=37A
material:purple copper　 thickness:1.0mm

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 3.5-4	#8	4.3mm	8.0	18.0	7.7	6.0	5.0	3.0
RS 3.5-5	#10	5.3mm	8.0	18.0	7.7
RL 3.5-5	#10	5.3mm	12.0	21.4	7.7
R 3.5-6	1/4	6.4mm	12.0	21.4	7.7
R 3.5-8	3/16	8.4mm	15.0	27.0	13.5
R 3.5-10	3/8	10.5mm	15.0	27.0	13.5

Cable size: 4～6mm2（A.W.G.12～10) max current:Imax=48A
material:purple copper　 thickness:1.0mm

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 5.5-3.5	#6	3.7mm	7.2	15.7	5.9	6.8	5.6	3.4
RS 5.5-4	#8	4.3mm	7.2	15.7	5.9
RL 5.5-4	#8	4.3mm	9.5	19.8	8.3
R 5.5-5	#10	5.3mm	9.5	19.8	8.3
R 5.5-6	1/4	6.5mm	12.0	25.8	13.0
R 5.5-8	5/16	8.4mm	15.0	28.0	13.7
R 5.5-10	3/8	10.5mm	15.0	28.0	13.7
R 5.5-12	1/2	13.0mm	19.2	32.4	16.0

Cable size：6～10mm2(A.W.G.8) max current:：lmax＝62A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 8-4	#8	4.3mm	8.8	23.8	9.3	8.5	7.2	4.5
RS 8-5	#10	5.3mm	8.8	23.8	10.5
RM 8-5	#10	5.3mm	12.0	23.8	9.3
RL 8-5	#10	5.3mm	15.0	29.8	13.8
RS 8-6	1/4	6.5mm	12.0	23.8	9.3
RL 8-6	1/4	6.5mm	15.0	29.8	13.8
R 8-8	5/16	8.4mm	15.0	29.8	13.8
R 8-10	3/8	10.5mm	15.0	29.8	13.8
R 8-12	1/2	13.0mm	20.0	33.5	15.0

Cable size：10～16mm2(A.W.G.6) max current:：lmax＝88A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 14-4	#8	4.3mm	12.0	29.8	13.3	10.5	9.0	5.8
R 14-5	#10	5.3mm	12.0	29.8	13.3
RS 14-6	1/4	6.5mm	12.0	29.8	13.3
RL 14-6	1/4	6.5mm	16.0	32.8	13.3
R 14-8	5/16	8.4mm	16.0	32.8	14.5
R 14-10	3/8	10.5mm	16.0	32.8	14.5
R 14-12	1/2	13.0mm	22.0	41.0	19.5

Cable size：16～25mm2(A.W.G.4) max current:：lmax=115

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
RS 22-5	#10	5.3mm	12.2	33.2	14.5	12.0	11.5	7.7
RL 22-5	#10	5.3mm	16.5	33.7	13.5
RS 22-6	1/4	6.5mm	12.2	33.2	14.5
RL 22-6	1/4	6.5mm	16.5	33.7	13.5
R 22-8	5/16	8.4mm	16.5	33.7	13.5
R 22-10	3/8	10.5mm	16.5	33.7	13.5
R 22-11	7/16	11.5mm	22.0	42.5	19.5
R 22-12	1/2	13.0mm	22.0	42.5	19.5

Cable size：35～50mm2(A.W.G.2) max current:：lmax＝160A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 38-5	#10	5.3mm	15.3	39.0	18.3	14.0	13.3	9.4
R 38-6	1/4	6.5mm	15.3	39.0	18.3
RS 38-8	5/16	8.4mm	15.3	39.0	18.3
RL 38-8	5/16	8.4mm	22.0	42.7	17.7
RS 38-10	3/8	10.5mm	15.3	39.0	18.3
RL 38-10	3/8	10.5mm	22.0	42.7	17.7
R 38-11	7/16	11.5mm	22.0	42.7	17.7
R 38-12	1/2	13.0mm	22.0	42.7	17.7

Cable size：50～70mm2(A.W.G.1/0) max current:：lmax＝215A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 60-6	1/4	6.5mm	22.0	49.7	20.7	18.0	15.4	11.4
R 60-8	5/16	8.4mm
R 60-10	3/8	10.5mm
R 60-11	7/16	11.5mm
R 60-12	1/2	13.0mm
R 60-14	9/16	15.0mm	32.0	57.5	23.5
R 60-16	5/8	17.0mm
R 60-18	11/16	19.0mm
R 60-20	3/4	21.0mm

Cable size：70～95mm2(A.W.G.2/0) max current:：lmax＝235A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 70-6	1/4	6.5mm	27.0	51.2	20.0	19.0	17.5	13.0
R 70-8	5/16	8.4mm
R 70-10	3/8	10.5mm
R 70-11	7/16	11.5mm
R 70-12	1/2	13.0mm
R 70-14	9/16	15.0mm	32.0	61.0	26.0
R 70-16	5/8	17.0mm
R 70-18	11/16	19.0mm
R 70-20	3/4	21.0mm

Cable size：95～120mm2 (A.W.G.1/0)max current:：lmax＝255A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 80-6	1/4	6.5mm	22.0	54.2	20.7	20.0	19.5	14.5
R 80-8	5/16	8.4mm
R 80-10	3/8	10.5mm
R 80-11	7/16	11.5mm
R 80-12	1/2	13.0mm
R 80-14	9/16	15.0mm	32.0	68.0	32.0
R 80-16	5/8	17.0mm
R 80-18	11/16	19.0mm
R 80-20	3/4	21.0mm

Cable size：120～150mm2(A.W.G.2/0) max current:：lmax＝300A

型号	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 100-6	1/4	6.5mm	28.5	55.6	20.4	21.0	22.1	16.4
R 100-8	5/16	8.4mm
R 100-10	3/8	10.5mm
R 100-11	7/16	11.5mm
R 100-12	1/2	13.0mm
R 100-14	9/16	15.0mm	32.0	69.0	32.0
R 100-16	5/8	17.0mm
R 100-18	11/16	19.0mm
R 100-20	3/4	21.0mm

Cable size：150～185mm2(A.W.G.250/300 MCM) max current:：lmax＝395A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	dφ	mm	mm	mm	mm	mm	mm
R 150-8	5/16	8.4mm	36.0	66.0	23.0	27.0	26.6	19.5
R 150-10	3/8	10.5mm
R 150-11	7/16	11.5mm
R 150-12	1/2	13.0mm
R 150-14	9/16	15.0mm
R 150-16	5/8	17.0mm
R 150-18	11/16	19.0mm	36.0	81.0	36.0
R 150-20	3/4	21.0mm
R 150-22	7/8	23.0mm
R 150-24	15/16	25.0mm

Cable size：185～240mm2(A.W.G.300/350 MCM) max current:：lmax＝440A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 180-8	5/16	8.4mm	38.5	69.0	24.5	28.5	28.6	21.0
R 180-10	3/8	10.5mm
R 180-11	7/16	11.5mm
R 180-12	1/2	13.0mm
R 180-14	9/16	15.0mm
R 180-16	5/8	17.0mm
R 180-18	11/16	19.0mm	38.5	86.6	39.0
R 180-20	3/4	21.0mm
R 180-22	7/8	23.0mm
R 180-24	15/16	25.0mm

Cable size：240～300mm2(A.W.G.400/500 MCM) max current:：lmax＝470A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 200-8	5/16	8.4mm	44.0	72.0	24.5	31.5	32.6	24.0
R 200-10	3/8	10.5mm
R 200-11	7/16	11.5mm
R 200-12	1/2	13.0mm
R 200-14	9/16	15.0mm
R 200-16	5/8	17.0mm
R 200-18	11/16	19.0mm	44.0	91.0	37.5
R 200-20	3/4	21.0mm
R 200-22	7/8	23.0mm
R 200-24	15/16	25.0mm

Cable size：300～400mm2(A.W.G.500/600 MCM) max current:：lmax＝650A

Item No	Dimension
	USA screw	Screw dia.d2	B	L	F	E	Dφ	dφ
	USA screw	mm	mm	mm	mm	mm	mm	mm
R 325-8	5/16	8.4mm	50.5	88.0	33.5	35.5	37.1	28.0
R 325-10	3/8	10.5mm
R 325-11	7/16	11.5mm
R 325-12	1/2	13.0mm
R 325-14	9/16	15.0mm
R 325-16	5/8	17.0mm
R 325-18	11/16	19.0mm	50.5	105.7	45.0
R 325-20	3/4	21.0mm
R 325-22	7/8	23.0mm
R 325-24	15/16	25.0mm
