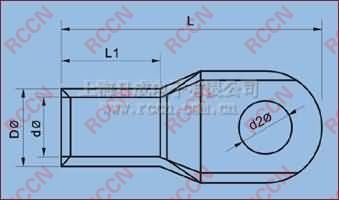

Copper Connecting Terminal (C-Type)
|
|
|
|
|
|
dΦ
|
DΦ
|
L1
|
L
|
|
C 1.5 - 5
|
5.2
|
1.8
|
3.7
|
5
|
16
|
1.5
|
|
C 2.5 - 4
|
4.2
|
2.4
|
4.0
|
7
|
18
|
2.5
|
|
C 2.5 - 5
|
5.2
|
20
|
|
C 4 - 5
|
5.2
|
3.1
|
4.8
|
7
|
20
|
4
|
|
C 4 - 6
|
6.5
|
|
C 6 - 5
|
5.2
|
3.8
|
5.5
|
9
|
24
|
6
|
|
C 6 - 6
|
6.5
|
|
C 10 - 6
|
6.5
|
5
|
6.5
|
9
|
26
|
10
|
|
C 10 - 8
|
8.4
|
|
C 16 - 6
|
6.5
|
5.7
|
7.5
|
11
|
30
|
16
|
|
C 16 - 8
|
8.4
|
|
C 25 - 6
|
6.5
|
7.2
|
9
|
13
|
35
|
25
|
|
C 25 - 8
|
8.4
|
|
C 35 - 8
|
8.4
|
8.5
|
10.8
|
13.5
|
38
|
35
|
|
C 35 - 10
|
10.5
|
|
C 50 - 8
|
8.4
|
9.8
|
12.5
|
16
|
44
|
50
|
|
C 50 - 10
|
10.5
|
|
C 70 - 10
|
10.5
|
11.5
|
14.5
|
18
|
51
|
70
|
|
C 70 - 12
|
13.0
|
|
C 95 - 10
|
10.5
|
13.7
|
17
|
22
|
57
|
95
|
|
C 95 - 12
|
13.0
|
|
C 120 - 12
|
13
|
15
|
19
|
24
|
64
|
120
|
|
C 120 - 16
|
17
|
|
C 150 - 12
|
13
|
16.7
|
21
|
26
|
71
|
150
|
|
C 150 - 16
|
17
|
|
C 185 - 16
|
17
|
18.5
|
23
|
30
|
79
|
185
|
|
C 240 - 16
|
21
|
21
|
26
|
38
|
93
|
240
|
|
C 240 - 20
|
17
|
|
C 300 - 16
|
17
|
24.5
|
30
|
42
|
103
|
300
|
|
C 300 - 20
|
21
|
|
C 400 - 16
|
17
|
27
|
34
|
42
|
113
|
400
|
|
C 400 - 20
|
21
|
|
C 500 - 16
|
17
|
30
|
38
|
48
|
123
|
500
|
|
C 500 - 20
|
21
|
|
C 630 - 20
|
21
|
35
|
45
|
56
|
135
|
630
|
|
C 800 - BL
|
-
|
39
|
50
|
60
|
170
|
800
|
|
C 1000 - BL
|
-
|
44
|
56
|
87
|
200
|
1000
|
