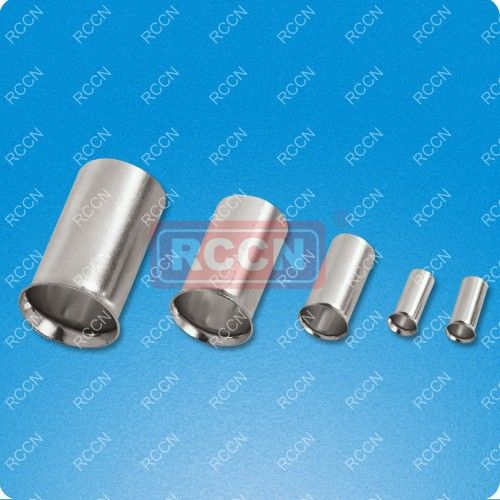

RCCN EN Non-Insulated Cord End Terminals


RCCN EN Non-Insulated Cord End Terminals

RCCN EN Non-Insulated Cord End Terminals





RCCN EN Non-Insulated Cord End Terminals RCCN EN Non-Insulated Cord End Terminals

Use note:series from 0.25to 16 installed
                  by tool of YAC series series
                  25 to 150 installed by tool of
                  YYT series

 Limited W.T:105℃Ui=300V Terminal material: Tin coated copper

Item No.  DIMENSION Insulated square
L D C B W A.W.G mm2
mm mm mm mm mm
EN0.5-6 6.0 1.3 1.0 0.7 2.1 #22 0.5
EN0.75-6 6.0 1.5 1.2 0.7 2.5 #20 0.75
EN1.0-6 6.0 1.7 1.4 0.7 2.7 #18 1.0
EN1.0-10 10.0
EN1.5-7 7.0 2.0 1.7 1.0 3.5 #16 1.5
EN1.5-10 10.0
EN2.5-7 7.0 2.5 2.2 1.0 2.5 #14 2.5
EN2.5-12 12.0
EN4.0-9 9.0 3.2 2.8 1.0 4.0 #12 4.0
EN4.0-12 12.0
EN6.0-10 10.0 3.9 3.5 1.0 4.8 #10 6.0
EN6.0-12 12.0
EN6.0-15 15.0
EN10-12 12.0 4.9 4.5 1.2 5.8 #7 10.0
EN10-15 15.0
EN10-18 18.0
EN16-12 12.0 6.2 5.8 1.5 7.5 #5 16.0
EN16-15 15.0
EN16-18 18.0
EN25-16 16 7.9 7.5 1.8 9.2 4 25
EN25-22 22
EN35-16 16 8.7 8.3 2.0 10 2 35
EN35-25 25
EN50-20 20 10.9 10.3 2.0 12.4 1 50
EN50-25 25
