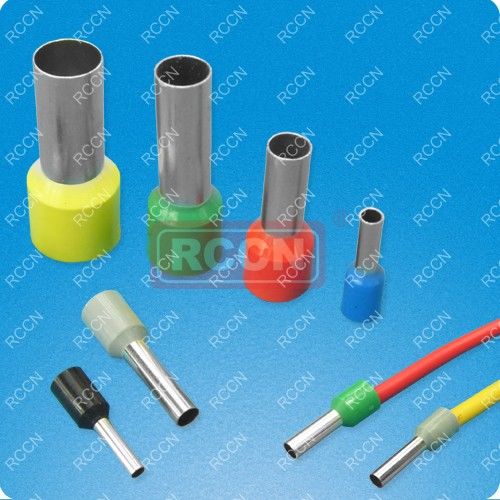

RCCN ET Insulated Cord End Terminals
  |
|
Use note：series from 0.25to 16 installed
by tool of YAC series series
25 to 150 installed by tool of
YYT series
limited W.T：-14℃ to 105℃ Ui=300V Material of copper：tin coated copper
|
| Item No. |
DIMENSION |
|
Color |
| F |
L |
W |
B |
D |
C |
A.W.G |
mm2 |
| mm |
mm |
mm |
mm |
mm |
mm |
Germany |
France |
| ET0.25-6 |
6 |
10.0 |
2.5 |
4.0 |
1.05 |
0.75 |
#26 |
0.25 |
Blue |
Purple |
| ET0.25-8 |
8 |
12.0 |
| ET0.3-6 |
6 |
10.5 |
2.5 |
4.0 |
1.1 |
0.8 |
#24 |
0.35 |
Blue |
Purple |
| ET0.3-8 |
8 |
12.5 |
| ET0.5-6 |
6.0 |
12.0 |
2.6 |
6.0 |
1.3 |
1.0 |
#22 |
0.5 |
|
White |
| ET0.5-8 |
8.0 |
14.0 |
| ET0.5-10 |
10.0 |
16.0 |
| ET0.5-12 |
12.0 |
18.0 |
| ET0.75-6 |
6.0 |
12.4 |
2.8 |
6.4 |
1.5 |
1.2 |
#20 |
0.75 |
White |
Blue |
| ET0.75-8 |
8.0 |
14.6 |
| ET0.75-10 |
10.0 |
16.4 |
| ET0.75-12 |
12.0 |
18.4 |
| ET1.0-6 |
6.0 |
12.4 |
3.0 |
6.4 |
1.7 |
1.4 |
#18 |
1.0 |
Yellow |
Red |
| ET1.0-8 |
8.0 |
14.6 |
| ET1.0-10 |
10.0 |
16.4 |
| ET1.0-12 |
12.0 |
18.4 |
| ET1.5-8 |
8.0 |
14.6 |
3.5 |
6.4 |
2.0 |
1.7 |
#16 |
1.5 |
Red |
Black |
| ET1.5-10 |
10.0 |
16.4 |
| ET1.5-18 |
18.0 |
24.4 |
| ET2.5-8 |
8.0 |
15.2 |
4.0 |
7.0 |
2.6 |
2.3 |
#14 |
2.5 |
Blue |
Gray |
| ET2.5-12 |
12.0 |
19.0 |
| ET2.5-18 |
18.0 |
25.0 |
| ET4.0-9 |
9.0 |
16.5 |
4.4 |
7.5 |
3.2 |
2.8 |
#12 |
4.0 |
Gray |
Orange
|
| ET4.0-12 |
12.0 |
19.5 |
| ET4.0-18 |
18.0 |
25.5 |
| ET6.0-12 |
12.0 |
20.0 |
6.3 |
8.0 |
3.9 |
3.5 |
#10 |
6.0 |
Black |
Green |
| ET6.0-18 |
18.0 |
26.0 |
| ET10-12 |
12.0 |
21.5 |
7.6 |
9.5 |
4.9 |
4.5 |
#7 |
10.0 |
Milk
white |
Brown |
| ET10-18 |
18.0 |
27.5 |
| ET16-12 |
12.0 |
22.2 |
8.8 |
10.2 |
6.2 |
5.8 |
#5 |
16.0 |
Green |
Milk
white |
| ET16-18 |
18.0 |
28.2 |
| ET25-16 |
16.0 |
29.0 |
11.2 |
13.0 |
7.9 |
7.5 |
#4 |
25.0 |
Brown |
Black |
| ET25-22 |
22.0 |
35.0 |
| ET35-16 |
16.0 |
30.0 |
12.7 |
14.0 |
8.7 |
8.3 |
#2 |
35.0 |
Brown |
Red |
| ET35-25 |
25.0 |
39.0 |
| ET50-20 |
20 |
36.0 |
15.3 |
16.0 |
10.9 |
10.3 |
#1/0 |
50.0 |
Olive Green |
| ET50-25 |
25 |
41.0 |
| ET70-20 |
20 |
37.0 |
18.5 |
17.0 |
14.3 |
13.5 |
#2/0 |
70.0 |
Yellow |
| ET70-25 |
25 |
42.0 |
| ET70-27 |
27 |
44.0 |
| ET95-25 |
25 |
44.0 |
18.5 |
19.0 |
15.1 |
14.5 |
#3/0 |
95.0 |
Red |
| ET120-27 |
27 |
48.0 |
23.4 |
21.0 |
17.5 |
16.5 |
#4/0 |
120.0 |
Black |
| ET120-32 |
32 |
52.6 |
23.4 |
21.0 |
17.5 |
16.5 |
#4/0 |
120.0 |
| ET150-25 |
25 |
50.6 |
16.0 |
25.6 |
20.5 |
19.6 |
250-300mcm |
150.0 |
Yellow |
| ET150-27 |
27 |
52.6 |
16.0 |
25.6 |
20.5 |
19.6 |
150.0 |
| ET150-32 |
32 |
57.6 |
16.0 |
25.6 |
20.5 |
19.6 |
150.0 |
