RCCN A-PG Brass Cable Gland
 |

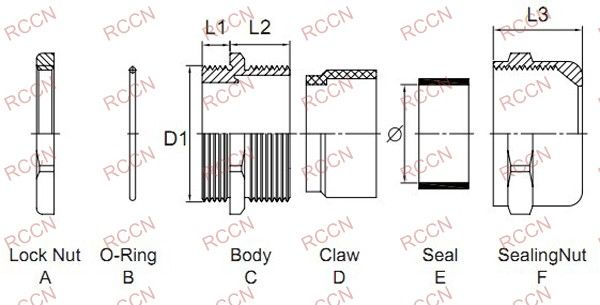

| Thread:DIN PG Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR Certificates:CE,EX Operate temperature:-50°C to 250°C Protection:IP68。 Product characterstics:Special design of part D and E,used with part F, can save your time, Large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, Withstand impregnant like acid,alkali,alcohol,oil,grease |
| Item No | CableRange Φ |
Thread Length |
+Nut Max platethick |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg Pcs |
|
PG
|
||||||
| A-PG7-6.5 | 3-6.5 | 6 | ≤2.5 | 19 | 14/14 | 100PCS |
| A-PG9-8 | 4-8 | 7 | ≤3.5 | 20 | 18/18 | |
| A-PG9-10 | 5-10 | 7 | ≤3.5 | 22 | 20/20 | |
| A-PG11-10 | 5-10 | 7 | ≤3.5 | 23 | 20/20 | |
| A-PG11-12 | 6-12 | 7 | ≤3.5 | 23 | 22/22 | |
| A-PG13.5-12 | 6-12 | 8 | ≤4.5 | 23 | 22/22 | |
| A-PG13.5-14 | 10-14 | 8 | ≤4.5 | 23 | 24/24 | |
| A-PG16-14 | 10-14 | 9 | ≤4.5 | 23 | 24/24 | |
| A-PG16-17 | 11-17 | 9 | ≤4.5 | 23 | 28/28 | 50PCS |
| A-PG21-18 | 13-18 | 9 | ≤5.5 | 23 | 30/30 | |
| A-PG21-21 | 15-21 | 11 | ≤5.5 | 32 | 36/36 | |
| A-PG29-25 | 18-25 | 11 | ≤5.5 | 32 | 40/40 | 5PCS |
| A-PG29-28 | 19-28 | 11 | ≤5.5 | 32 | 44/44 | |
| A-PG36-32 | 22-32 | 11 | ≤5.5 | 32 | 50/50 | |
| A-PG36-38 | 30-38 | 11 | ≤5.5 | 32 | 58/58 | |
| A-PG42-38 | 30-38 | 11 | ≤5.5 | 38 | 58/58 | |
| A-PG48-44 | 34-44 | 14 | ≤8.5 | 38 | 64/64 | |
