RCCN JIS Cable Gland

RCCN JIS   Cable Gland



RCCN JIS   Cable Gland


RCCN JIS   Cable Gland RCCN JIS   Cable Gland RCCN JIS   Cable Gland
Thread:JSI F8801-2002 PF

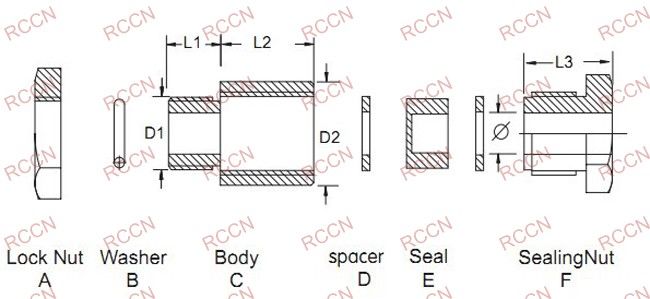

Material:A.C.F are made of zinc metel coated nickel.D is ande of metal.B.E are made of NBR
Protect:IP54。
JIS is longer than PJ,JIS outer dia. is 2mm and thcker,JIS is used instead of Japan’s gland


Item No

Thread

Cable
Range
Φ

Thread
O.D.
D1

Panel
Mounting
Hole

Thread
Length
L1

Spanner
size
A&F

Std.Pkg
Pcs


JIS-G3/8-7 G3/8'' 5-7 16.5 16.5-17.1 11 22 50PCS
JIS-G3/8-8 G3/8'' 6-8 16.5 16.5-17.1 11 22
JIS-G1/2-9 G1/2'' 7-9 21.3 21.3-21.5 11 28
JIS-G1/2-10 G1/2'' 8-10 21.3 21.3-21.5 11 28
JIS-G1/2-11 G1/2'' 9-11 21.3 21.3-21.5 11 28
JIS-G3/4-12 G3/4'' 9-12 26.6 26.6-26.9 11 34
JIS-G3/4-13 G3/4'' 10-13 26.6 26.6-26.9 11 34 10PCS
JIS-G3/4-15 G3/4'' 12-15 26.6 26.6-26.9 11 34
JIS-G1-16 G1'' 13-16 33.4 33.4-33.8 11 42
JIS-G1-18 G1'' 15-18 33.4 33.4-33.8 11 42
JIS-G1-20 G1'' 16-20 33.4 33.4-33.8 11 42
JIS-G1-1/4-22 G1-1/4'' 18-22 42.1 42.1-42.5 12 50
JIS-G1-1/4-24 G1-1/4'' 20-24 42.1 42.1-42.5 12 50
JIS-G1-1/4-26 G1-1/4'' 22-26 42.1 42.1-42.5 12 50 5PCS
JIS-G1-1/2-28 G1-1/2'' 24-28 47.8 47.8-48.4 12 56
JIS-G1-1/2-30 G1-1/2'' 26-30 47.8 47.8-48.4 12 56
JIS-G1-1/2-32 G1-1/2'' 28-32 47.8 47.8-48.4 12 56 1PCS
JIS-G1-1/2-34 G1-1/2'' 30-34 47.8 47.8-48.4 12 56
JIS-G2-36 G2'' 32-36 59.6 59.6-60.1 12 70
JIS-G2-38 G2'' 33-38 59.6 59.6-60.1 12 70
JIS-G2-40 G2'' 35-40 59.6 59.6-60.1 12 70
JIS-G2-42 G2'' 36-42 59.6 59.6-60.1 12 70
大规格JIS
JIS-G2-1/2--46 G2-1/2'' 40-46 75.1 75.1-75.5 12 86 1PCS
JIS-G2-1/2--48 G2-1/2'' 42-48 75.1 75.1-75.5 12 86
JIS-G2-1/2--50 G2-1/2'' 44-50 75.1 75.1-75.5 12 86
JIS-G2-1/2--52 G2-1/2'' 46-52 75.1 75.1-75.5 12 86
JIS-G2-1/2--54 G2-1/2'' 48-54 75.1 75.1-75.5 12 86
JIS-G2-1/2--56 G2-1/2'' 50-56 75.1 75.1-75.5 12 86
JIS-G3-58 G3'' 52-58 87.8 87.8-88.2 14 100
JIS-G3-60 G3'' 54-60 87.8 87.8-88.2 14 100
JIS-G3-62 G3'' 56-62 87.8 87.8-88.2 14 100
JIS-G3-64 G3'' 58-64 87.8 87.8-88.2 14 100
