RCCN PJ Cable Gland
  |

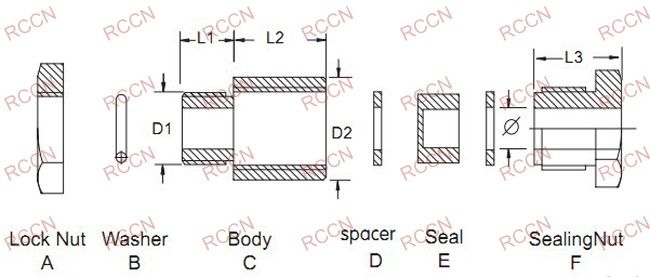

| Thread:GB/T 3667.1-1995 metric thread Material:A.C.F are made of zinc metel coated nickel.D is ande of metal.B.E are made of NBR Protect:IP54 PJ is shorter than JIS,outer dia. is less than 2mm,PJ main used in ships and electrics |
|
Item No |
Thread |
Cable |
Thread |
Panel |
Thread |
Spanner |
Std.Pkg |
|
English thread
|
50PCS | ||||||
| PJ-G3/8 | G3/8'' | 5-7 | 16.5 | 16.5-17.1 | 10 | 22 | |
| PJ-G1/2 | G1.2'' | 6-12 | 21.3 | 21.0-21.3 | 11 | 27 | |
| PJ-G1/2 | G1/2'' | 11-15 | 21.3 | 21.0-21.3 | 11 | 32 | |
| PJ-G3/4 | G3/4'' | 14-18 | 26.6 | 26.5-26.6 | 14 | 36 | |
| PJ-G1 | G1'' | 17-23 | 33.4 | 33.2-3.4 | 14 | 41 | |
| PJ-G1-1/4 | G1 1/4'' | 22-27 | 42.1 | 41.9-42.1 | 14 | 46 | 20PCS |
| PJ-G1-1/4 | G1 1/4'' | 26-33 | 42.1 | 41.9-42.1 | 14 | 50 | |
| PJ-G1-1/2 | G1 1/2'' | 32-41 | 47.8 | 47.8-48.0 | 14 | 60 | 5PCS |
| PJ-G2 | G2'' | 40-49 | 59.6 | 59.6-60.1 | 20 | 70 | |
|
Thread length
|
50PCS | ||||||
| PJ-M14*1.0 | M14*1.0 | 5-7 | 14 | 14-14.3 | 10 | 22 | |
| PJ-M18*1.0 | M18*1.0 | 6-12 | 18 | 18-18.3 | 11 | 27 | |
| PJ-M22*1.0 | M22*1.0 | 11-15 | 22 | 22-22.3 | 11 | 32 | |
| PJ-M27*1.5 | M27*1.5 | 14-18 | 27 | 27-27..4 | 14 | 36 | 20PCS |
| PJ-M30*1.5 | M30*1.5 | 17-23 | 30 | 30-30.4 | 14 | 41 | |
| PJ-M36*2.0 | M36*2.0 | 22-27 | 36 | 36-36.4 | 14 | 46 | |
| PJ-M42*2.0 | M42*2.0 | 26-33 | 42 | 42-42.4 | 14 | 50 | 5PCS |
| PJ-M52*2.0 | M52*2.0 | 32-41 | 52 | 52-52.4 | 14 | 60 | |
| PJ-M58*3.0 | M58*3.0 | 40-49 | 58 | 58-58.4 | 20 | 70 | |
| PJ-M68*3.0 | M68*3.0 | 48-57 | 68 | 68-68.4 | 20 | 80 | |
|
Germany thread
|
50PCS | ||||||
| PJ-PG9 | PG9 | 5-7 | 15.2 | 15.2-15.8 | 10 | 22 | |
| PJ-PG11 | PG11 | 6-12 | 18.6 | 18.6-18.9 | 11 | 27 | |
| PJ-PG16 | PG16 | 11-15 | 22.5 | 22.5-22.8 | 11 | 32 | 20PCS |
| PJ-PG21 | PG21 | 14-18 | 28.3 | 28.3-28.7 | 14 | 36 | |
| PJ-PG29 | PG29 | 17-23 | 37.0 | 37.0-37.4 | 14 | 41 | 5PCS |
| PJ-PG29 | PG29 | 22-27 | 37.0 | 37.0-37.4 | 14 | 46 | |
| PJ-PG36 | PG36 | 26-33 | 37.0 | 37.0-37.4 | 14 | 50 | |
| PJ-PG42 | PG42 | 32-41 | 54.0 | 54.0-54.4 | 14 | 60 | |
| PJ-PG48 | PG48 | 40-49 | 59.3 | 59.3-59.7 | 20 | 70 | |
