RCCN MGA Nylon Cable Gland
 |

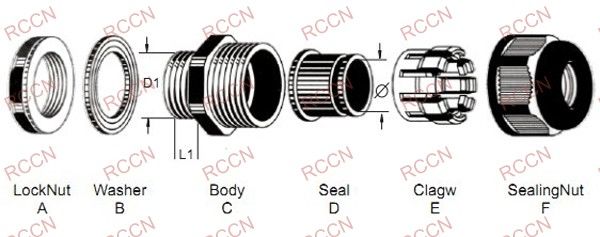

| Thread:Metric。 Material:A.C.D.F are made of 66 NYLON66.B.Eare made of rubber NBR。 Pretect grade is upto IP68。 Color:white, black,other color can be manufactured Use:Make this gland through the panel hole,then fixed it with nut,make the cables through the seal nut, fix it with the locknut More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use。 |
Item No. |
Thread | CableRange Φ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Spanner size A&F |
|
| Black | White | ||||||
| MG12A-05B | MG12A-05G | M12*1.5 | 3-5.3 | 12 | 12-12.3 | 8.5 | 18/19 |
| *MG12A-08B | MG12A-08G | M12*1.5 | 4-8 | 12 | 12-12.3 | 8.5 | 18/19 |
| MG16A-07B | MG16A-07G | M16*1.5 | 4-7 | 16 | 16-16.3 | 15 | 22/22 |
| *MG16A-10B | MG16A-10G | M16*1.5 | 6-10 | 16 | 16-16.3 | 15 | 22/22 |
| MG20A-06B | MG20A-06G | M20*1.5 | 4-6 | 20 | 20-20.3 | 15 | 27/27 |
| MG20A-11B | MG20A-11G | M20*1.5 | 6-11 | 20 | 20-20.3 | 15 | 27/27 |
| *MG20A-14B | MG20A-14G | M20*1.5 | 9-14 | 20 | 20-20.3 | 15 | 27/27 |
| MG25A-16B | MG25A-16G | M25*1.5 | 10-16 | 25 | 25-25.3 | 15 | 33/33 |
| *MG25A-18B | MG25A-18G | M25*1.5 | 13-18 | 25 | 25-25.3 | 15 | 33/33 |
| MG32A-22B | MG32A-22G | M32*1.5 | 15-22 | 32 | 32-32.3 | 15 | 41/42 |
| *MG32A-25B | MG32A-25G | M32*1.5 | 18-25 | 32 | 32-32.3 | 15 | 41/42 |
| MG40A-25B | MG40A-25G | M40*1.5 | 20-25 | 40 | 40-40.3 | 20 | 50/52 |
| *MG40A-30B | MG40A-30G | M40*1.5 | 24-30 | 40 | 40-40.3 | 20 | 50/52 |
| MG50A-32B | MG50A-32G | M50*1.5 | 26-32 | 50 | 50-50.3 | 22 | 62/62 |
| *MG50A-40B | MG50A-40G | M50*1.5 | 30-40 | 50 | 50-50.3 | 22 | 62/62 |
| MG63A-46B | MG63A-46G | M63*1.5 | 38-46 | 63 | 63-63.3 | 25 | 75/75 |
| *MG63A-50B | MG63A-50G | M63*1.5 | 40-50 | 63 | 63-63.3 | 25 | 75/75 |
| MG75A-66B | MG75A-66G | M75*1.5 | 55-66 | 75 | 75-75.3 | 25 | 92/92 |
| MG90A-77B | MG90A-77G | M90*1.5 | 65-77 | 90 | 90-90.3 | 25 | 110/110 |
